Product Description

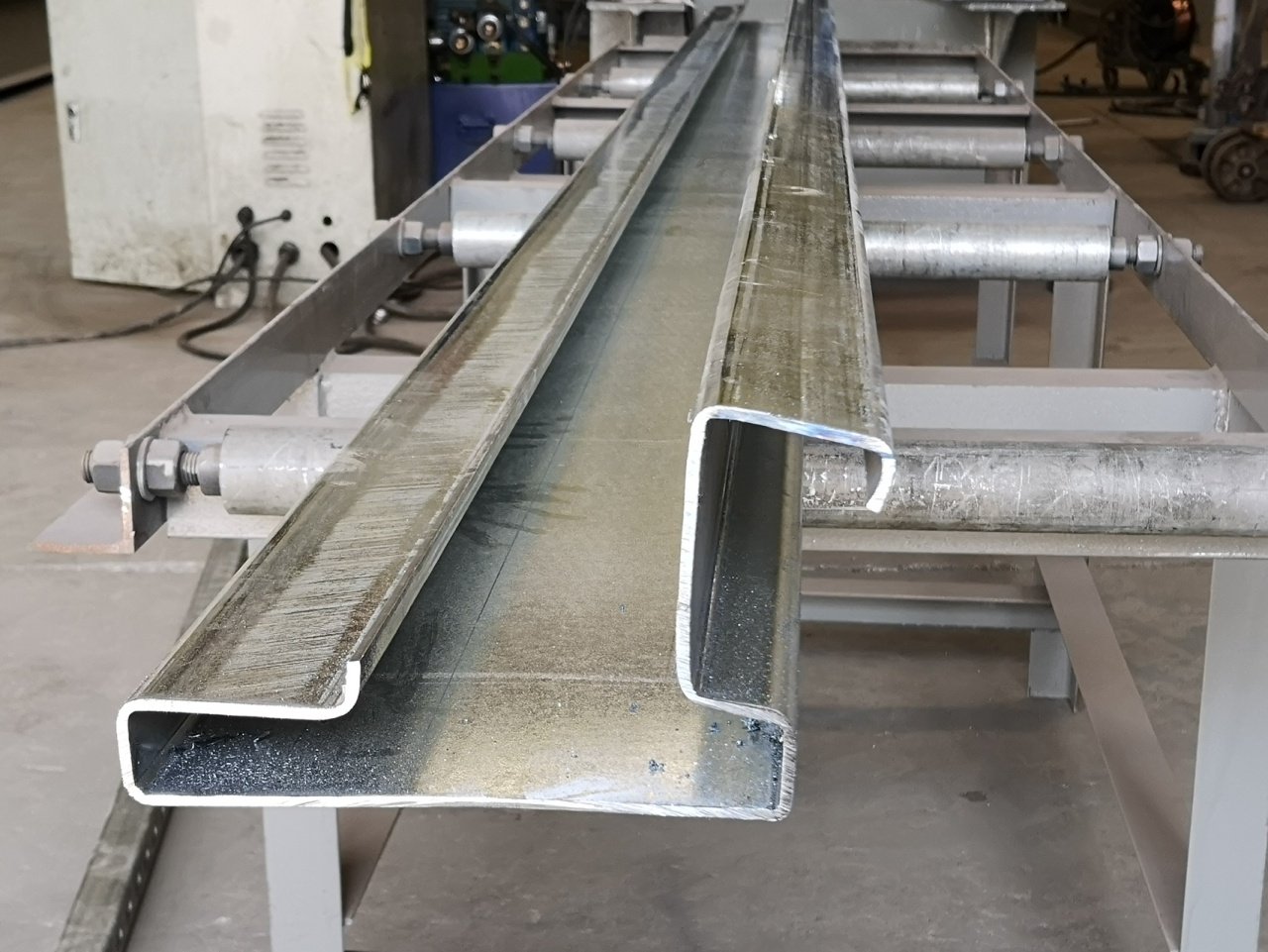

The Flat Pack Container House Frame Roll Forming Machine is a high-performance solution designed for manufacturing steel structures used in prefab and modular container houses.

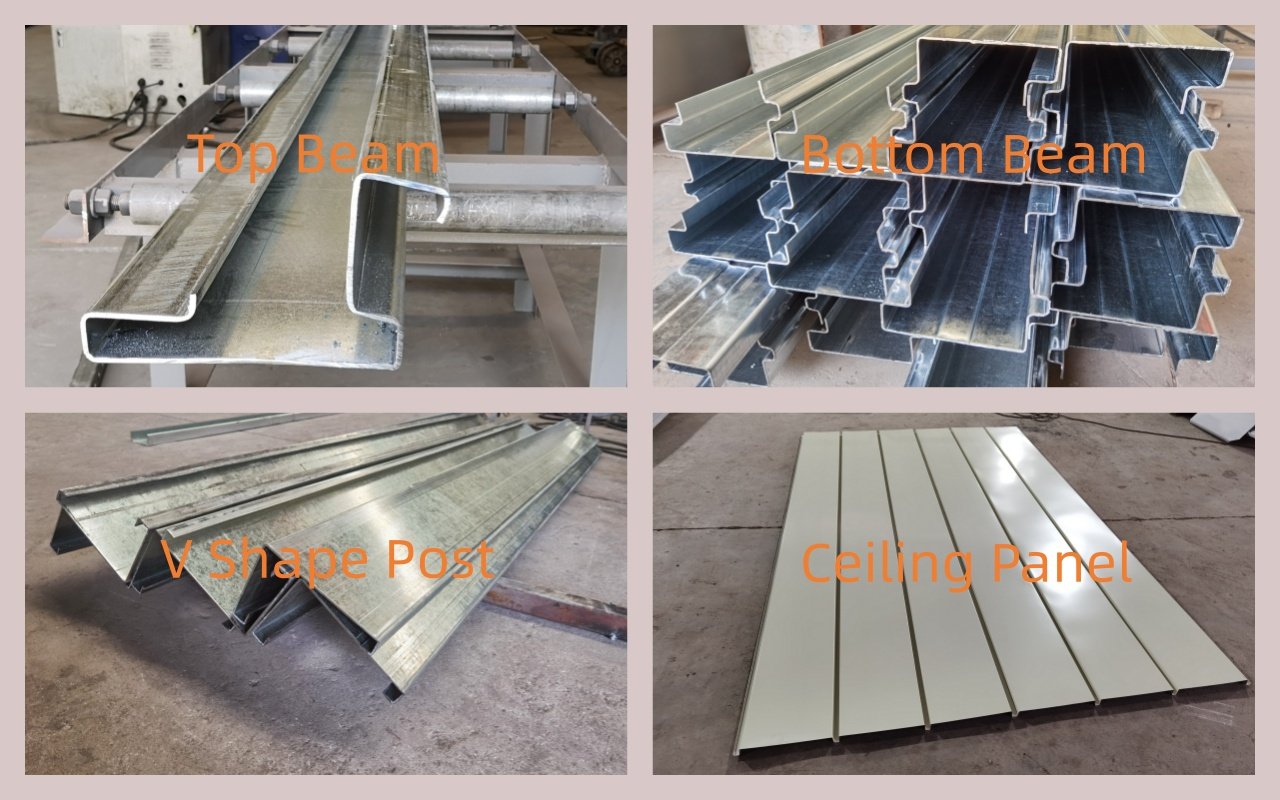

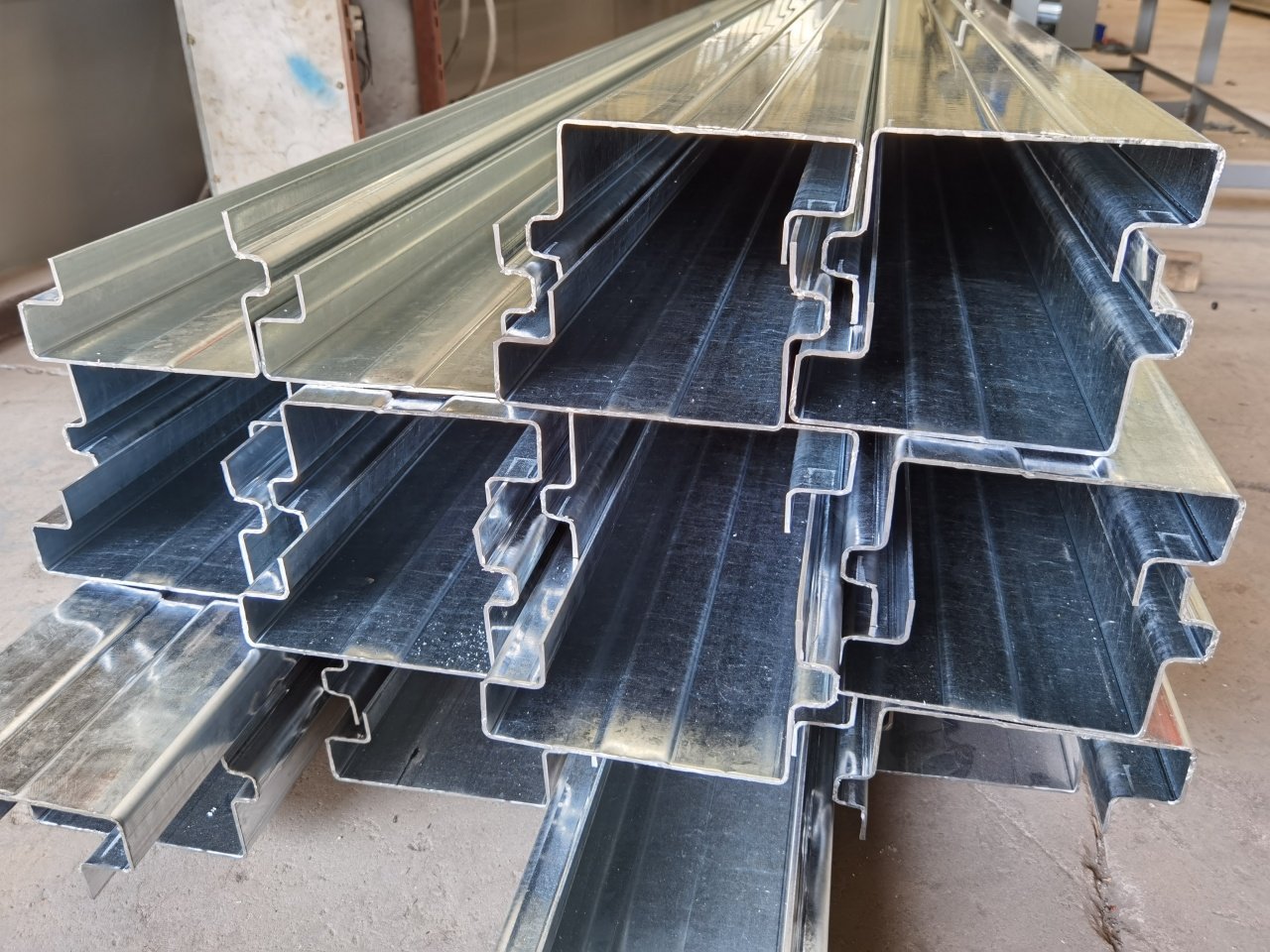

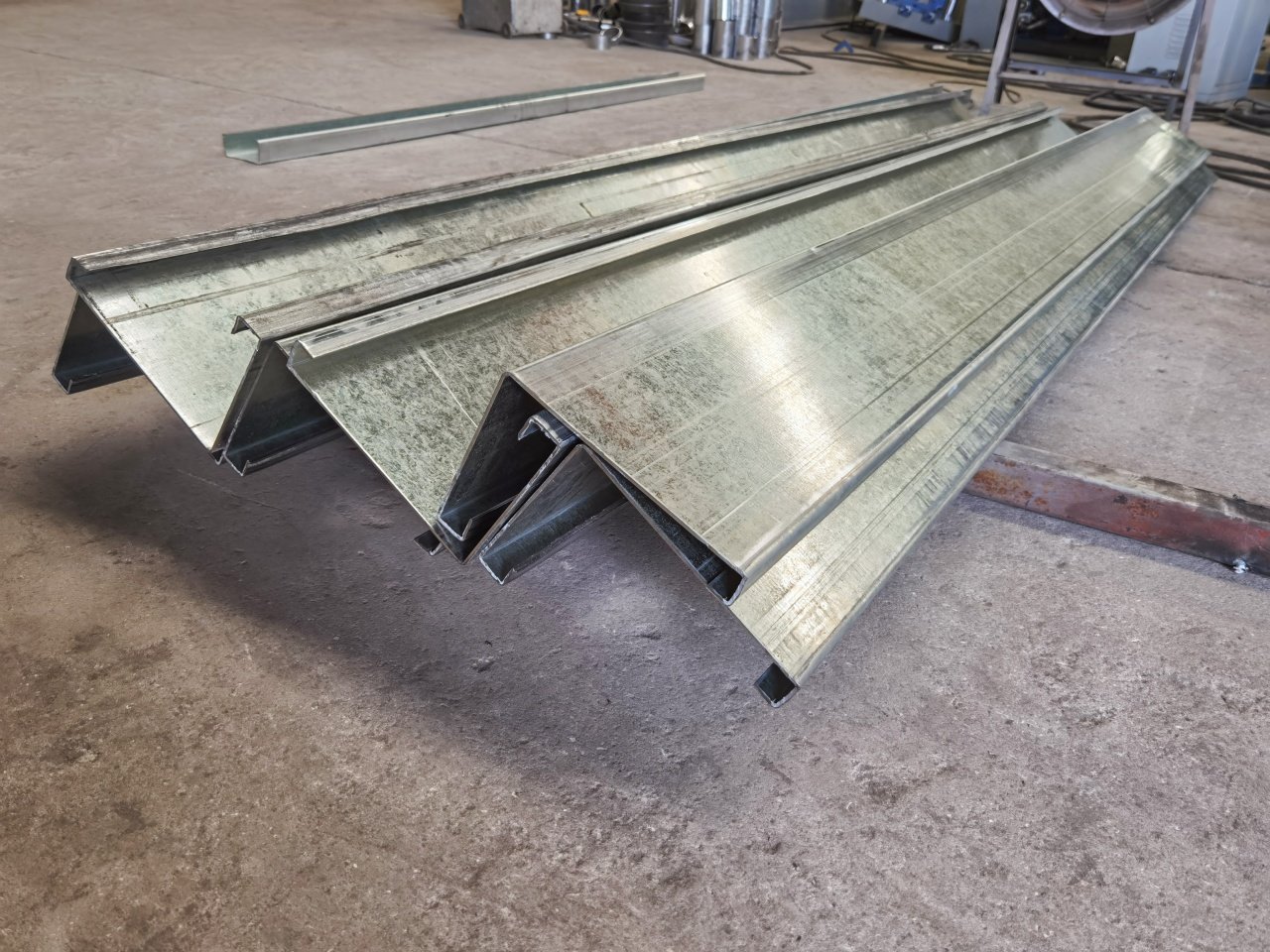

This type of roll forming machine is widely used in producing container house frames, wall structures, and support components, ensuring high strength, accurate dimensions, and efficient production, we can supply full set of container house system roll forming machines for this type of project.

With advanced PLC control and stronger mechanical design, it is correct choice for manufacturers looking to build or upgrade a container house production line.





Machine Components & Technical Parameters

1. Manual Un–coiler (Or Hydraulic De-coiler)

• Capacity: 5 Tons
• Coil Inner Diameter: 510 ± 30 mm
• Coil Outer Diameter: Max. 1300 mm
• Coil Width: Max. 500 mm

2. Material Guider & Pre-Leveling Device

• 7 leveling shafts
• Shaft Diameter: 96 mm
• Surface: Precision machined, hard chrome coated

Ensures smooth feeding and improves forming accuracy.

3. Roll Forming Machine

• Driving System: Gear & Sprocket Transmission
• Forming Stations: 28 steps + 2 shaping steps
• Shaft Diameter: 85 mm
• Shaft Material: 45# Steel (precision machined)
• Roller Material: GCr15, carbonitriding heat treatment (HRC60–62)
• Side Wall Thickness: 18 mm
• Frame Base: H450 steel
• Main Motor: 22KW *2
• Forming Speed: 15-18m/min (without punching & cutting)

Designed for high stability, durability, and continuous production.

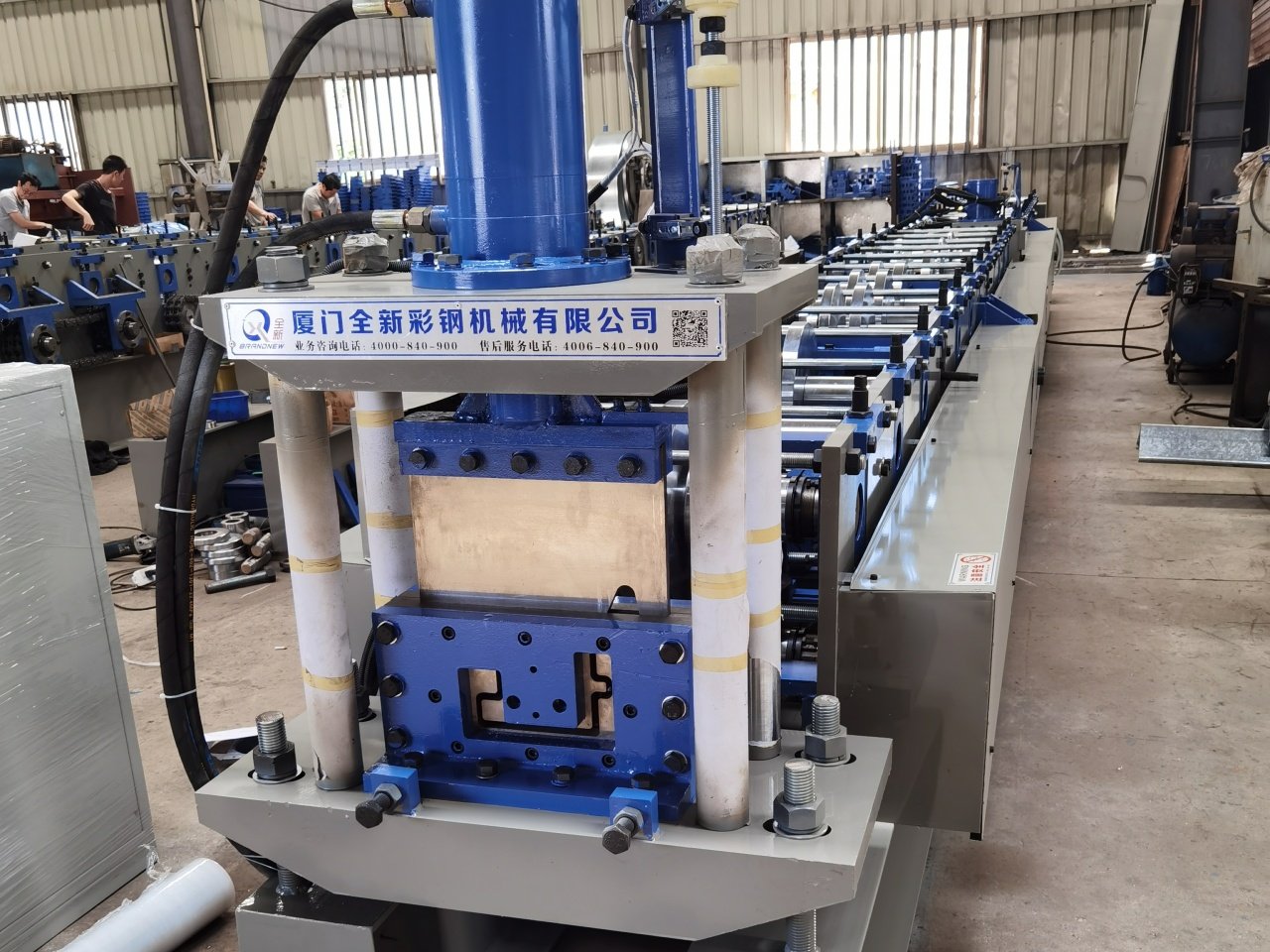

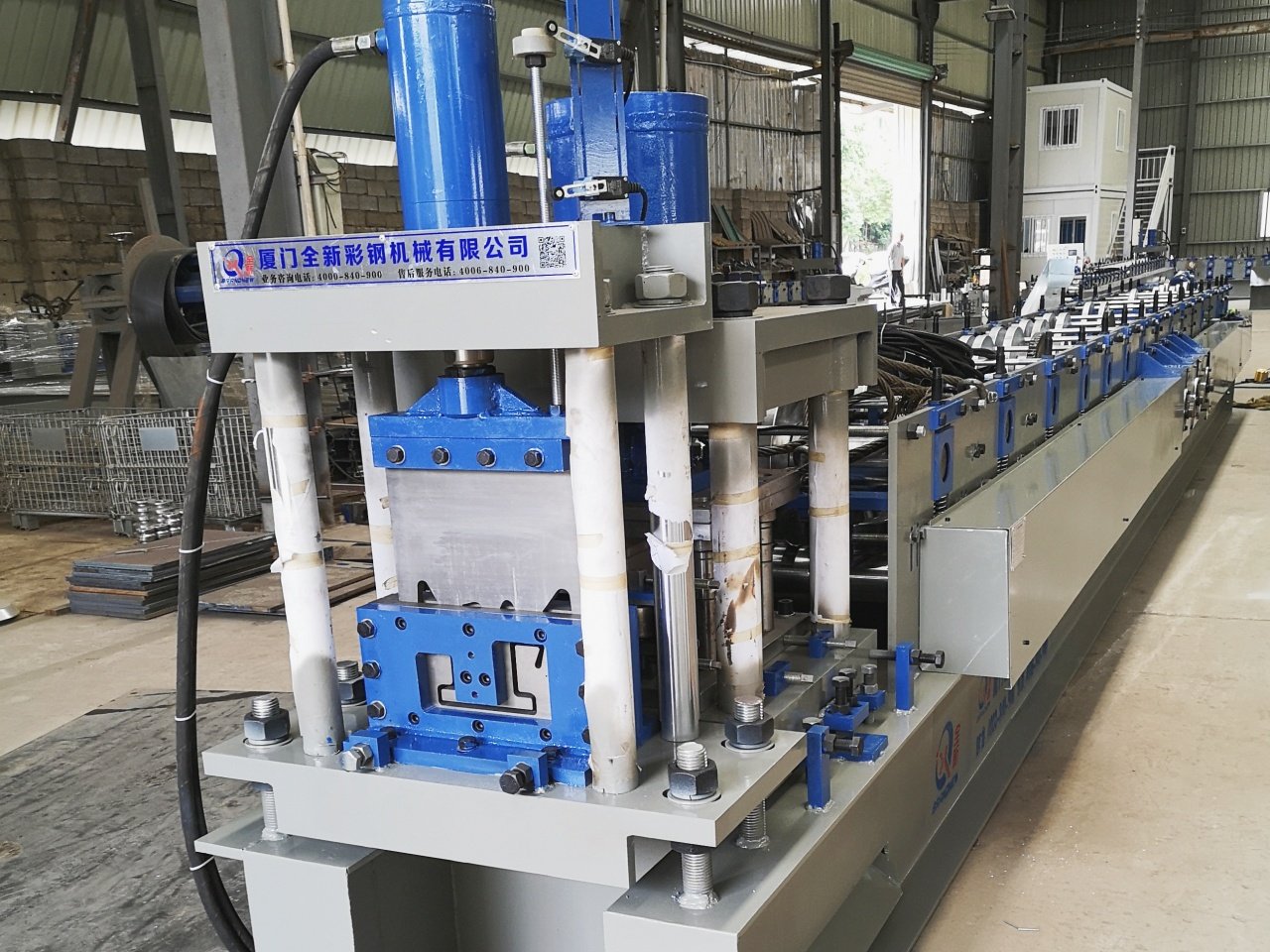

4. Hydraulic Punching Device

• Type: Post punching
• Punch Die: Cr12 material (for junction box holesor customized according to engineer needs)

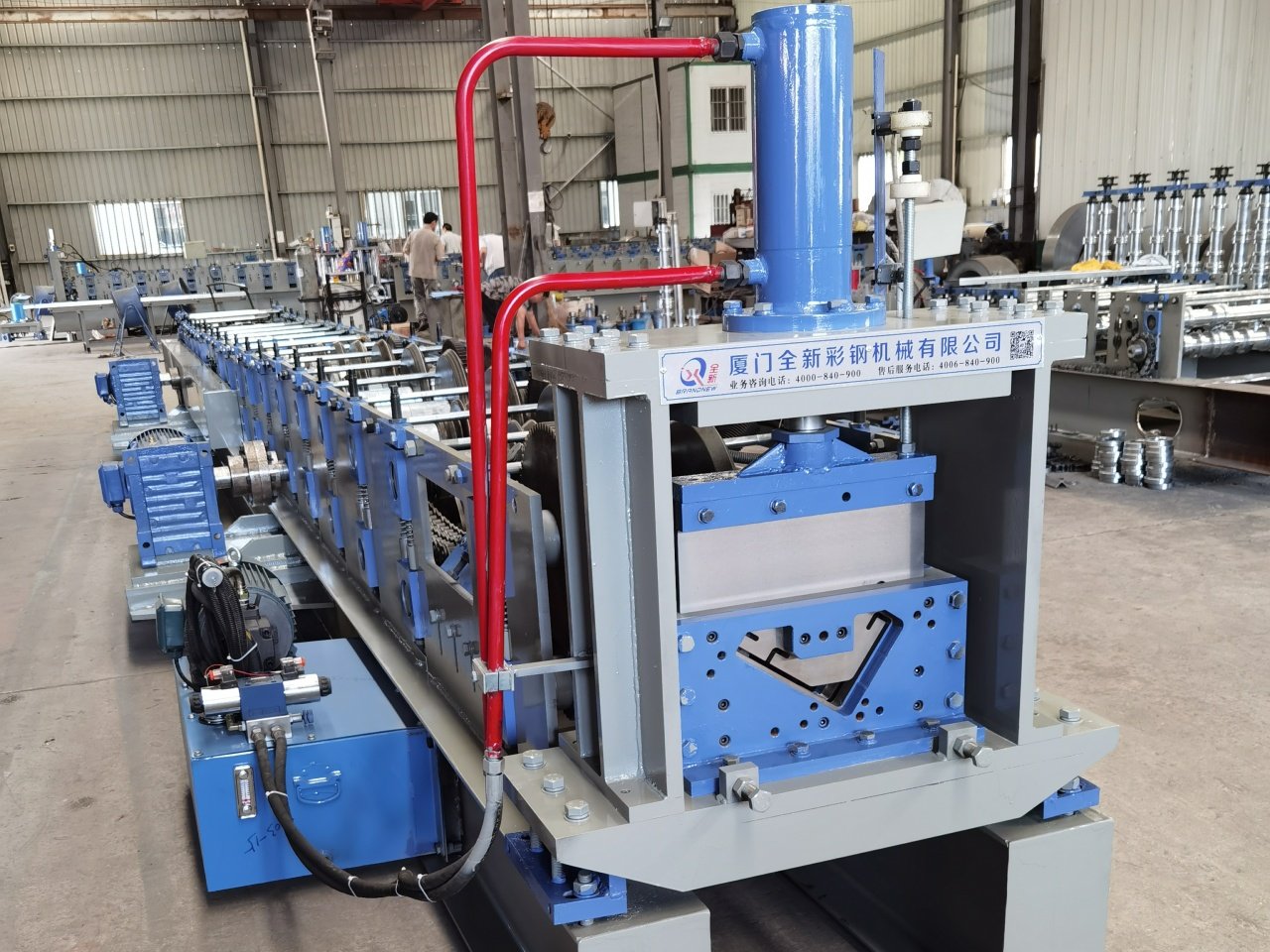

5. Hydraulic Cutting Device

• Pump Motor Power: 5.5KW
• Max Pressure: 8 MPa
• Cutting Type: 3-blade cutting (including slug cutting)
• Blade Material: Cr12 (heat treated)
• Solenoid Valve Brand: Yuci

6. PLC Control System

• Automatic control of length & quantity
• Components: PLC, inverter, touch screen, encoder
• Cutting Length Tolerance: ≤ ±2 mm
• Control Voltage: 24V

Famous brand electric parts, provides fully automatic and precise operation.

7. Product Rack

• Type: Un-powered
• Quantity: 3 units



Key Advantages

✅ High Precision Forming

Advanced leveling and roll forming ensure accurate profiles and consistent quality.

✅ Strong & Durable Structure

Premium materials like GCr15, Cr12 rollers and 45# steel shafts guarantee long service life.

✅ Fully Automatic Operation

PLC system reduces labor cost and improves production efficiency.

✅ Integrated Punching & Cutting

Hydraulic system allows precise punching and cutting in one continuous process.

✅ Ideal for Mass Production

Stable speed and strong structure make this container house frame roll forming machine suitable for large-scale prefab house manufacturing.



Why Our Container House Roll Forming Machine Stands Out



Compare Before You Invest—Choose the Right Production Line

Not All Container House Machines Are the Same

When choosing a flat pack container house production line, many buyers focus only on price.

However, lower-cost machines often lead to:

❌ unstable performance

❌ inaccurate profiles

❌ frequent breakdowns

❌ high maintenance costs



The real question is: Are you buying a machine, or a long-term production solution?



Our Machine vs Common Market Machines



Key Factors	Our Machine ✅	Typical Suppliers ❌
Frame Strength	H450 heavy-duty frame, stable at high speed	Light structure, vibration issues
Roller Material	GCr15, HRC60–62, long lifespan	Low-grade steel, wears quickly
Shaft Quality	45# steel, precision machined	Poor machining, shorter life
Forming Stations	28 + 2 shaping steps, high precision	Fewer stations, poor profile accuracy
Leveling System	7 shafts, chrome coated	Basic or no leveling device
Punching System	Hydraulic post punching, stable & accurate	Manual or unstable punching
Cutting Accuracy	≤ ±2mm tolerance	Larger errors, material waste
Automation	Full PLC control system	Semi-automatic or outdated control
Motor Power	22KW *2, strong & stable	Underpowered motors
After-Sales Support	Full technical support & customization	Limited or no support







What This Means for Your Business

Lower Long-Term Cost

Cheap roll forming machines may save money upfront—but cost you more in maintenance, downtime, and rejected products.

Our customized container house system roll forming machine ensures stable production and long service life, reducing hidden costs.



Better Product Quality

More forming stations + precision leveling =

✔ smoother profiles

✔ better fitting container structures

✔ higher customer satisfaction



Higher Production Efficiency

With powerful motors and stable transmission, you can:

✔Run continuously

✔Reduce downtime

✔Increase daily output



Less Maintenance Trouble

High-quality materials and components mean:

✔ fewer breakdowns

✔ easy maintenance

✔ longer machine lifespan





Built for Serious Manufacturers

Our container house frame roll forming machine is not designed to be the cheapest—

it is designed to be the most reliable and profitable choice.



Ideal for:

Growing prefab house factories

Large-scale construction suppliers

Investors entering modular housing industry



Real Value = Performance + Stability + Support

Many suppliers stop at selling machines.

We go further by offering:

(1) Custom design based on your drawings

(2) Full production line solution

(3) Installation & training support

(4) Long-term technical service

We will help you build a complete container house manufacturing business, not just supply equipment.

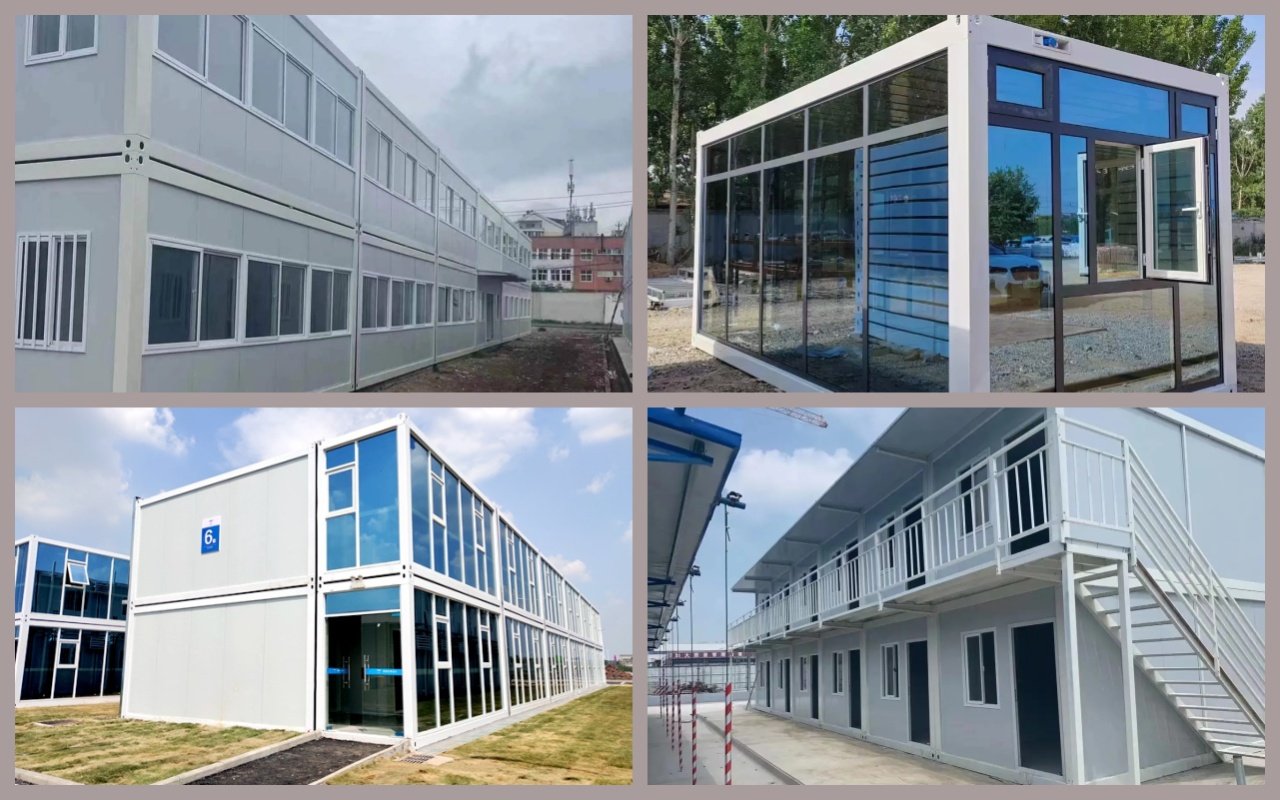

Container House System Engineers







Ready to Compare with Your Current Supplier?

Before you make a decision, talk to us.

Get:

Detailed technical comparison

Customized production solution

Transparent factory pricing



Make the smart investment—choose quality, stability, and long-term profit.
