Description



High-Speed Solution for Metal Furring Channel Roll Forming Machine

This Metal Furring Roll Forming Machine is specially designed for producing lightweight galvanized steel furring channels which are used in ceiling suspension systems, drywall framing, partition walls, and interior decoration projects.



This machine has stable roll forming structure with precision-machined rollers, it is good to ensure smooth profile forming, accurate dimensions, and high production efficiency. It is suitable for continuous production of 0.4~0.6mm galvanized cold rolled steel strips and widely used in modern building material manufacturing industries.



With compact structure, easy operation, and low maintenance cost, the C8-30 metal furring machine is an ideal choice for manufacturers who are looking for reliable and cost-effective ceiling channel production equipment.



If you have your own styles at your local, show us the profile design drawing or sample pictures, we can customize the furring roll forming machines as your market needs!

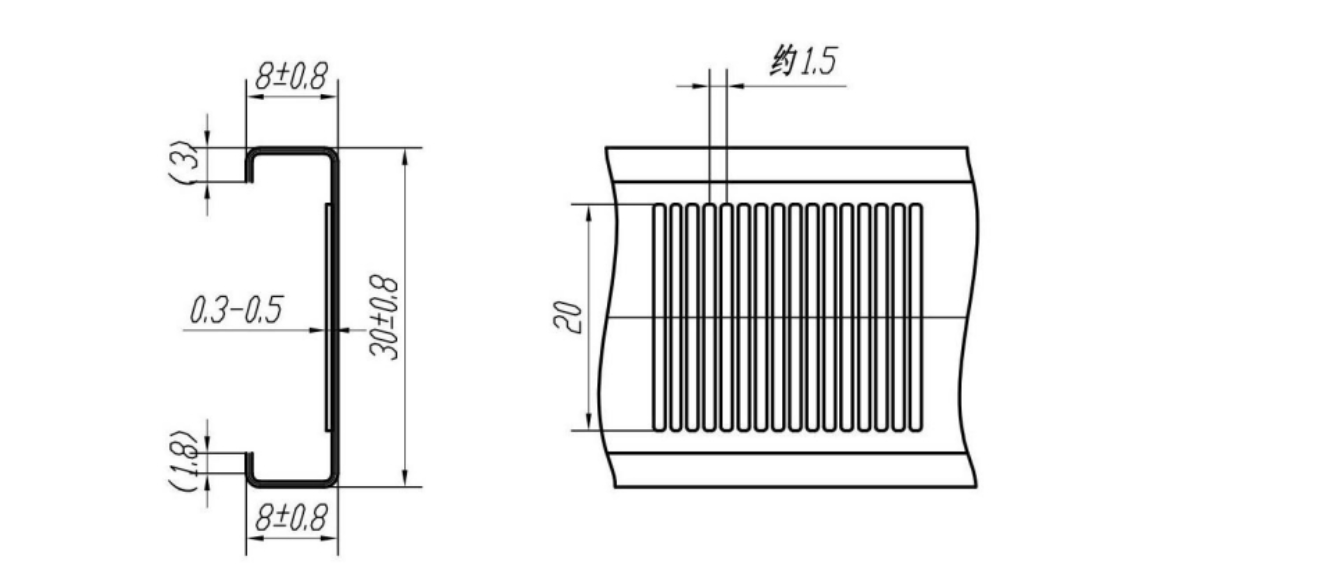

Profile Design Drawing





Material Thickness: 0.4–0.6mm

Profile Height: 30±0.8mm

Flange Width: 8±0.8mm

Edge Height: 3mm / 1.8mm

Embossing Width: 20mm

Embossing Depth: Approx. 1.5mm



Technical Parameters



Item	Specification
Hydraulic Motor	3KW
Main Motor	4KW
Shaft Diameter	60mm
Side Wall Thickness	18mm
Machine Frame	Made from H200
Forming Stations	14 Stations + 3 Straightening Stations
Roller Material	45# Steel Precision Machined, Hard Chrome Coated and Polished
Cutting Length Accuracy	±2mm
Forming Speed	0–20m/min (Without Punching & Cutting)
Speed Control Type	AC Frequency Speed Control (Inverter: Sine/Delta Equivalent)
Driving Method	Gear Reducer Motor + Chain Transmission
Cutting Method	Hydraulic Post Cutting (Three-Blade Cutter), Drop-Type Cutting, Blade Material: CR12
Length Measuring Method	Photoelectric Encoder
Control System	PLC (Delta)
Operation Method	Button + Touch Screen (VIEW,made inTaiwan)





Product Applications in Different Areas



The final C8-30 metal furring purlins are commonly used in:



(1) Gypsum board ceiling systems

(2) Drywall partition structures

(3) Interior decoration framing

(4) Commercial building ceiling systems

(5) Office and residential suspended ceilings

(6) Lightweight steel construction projects

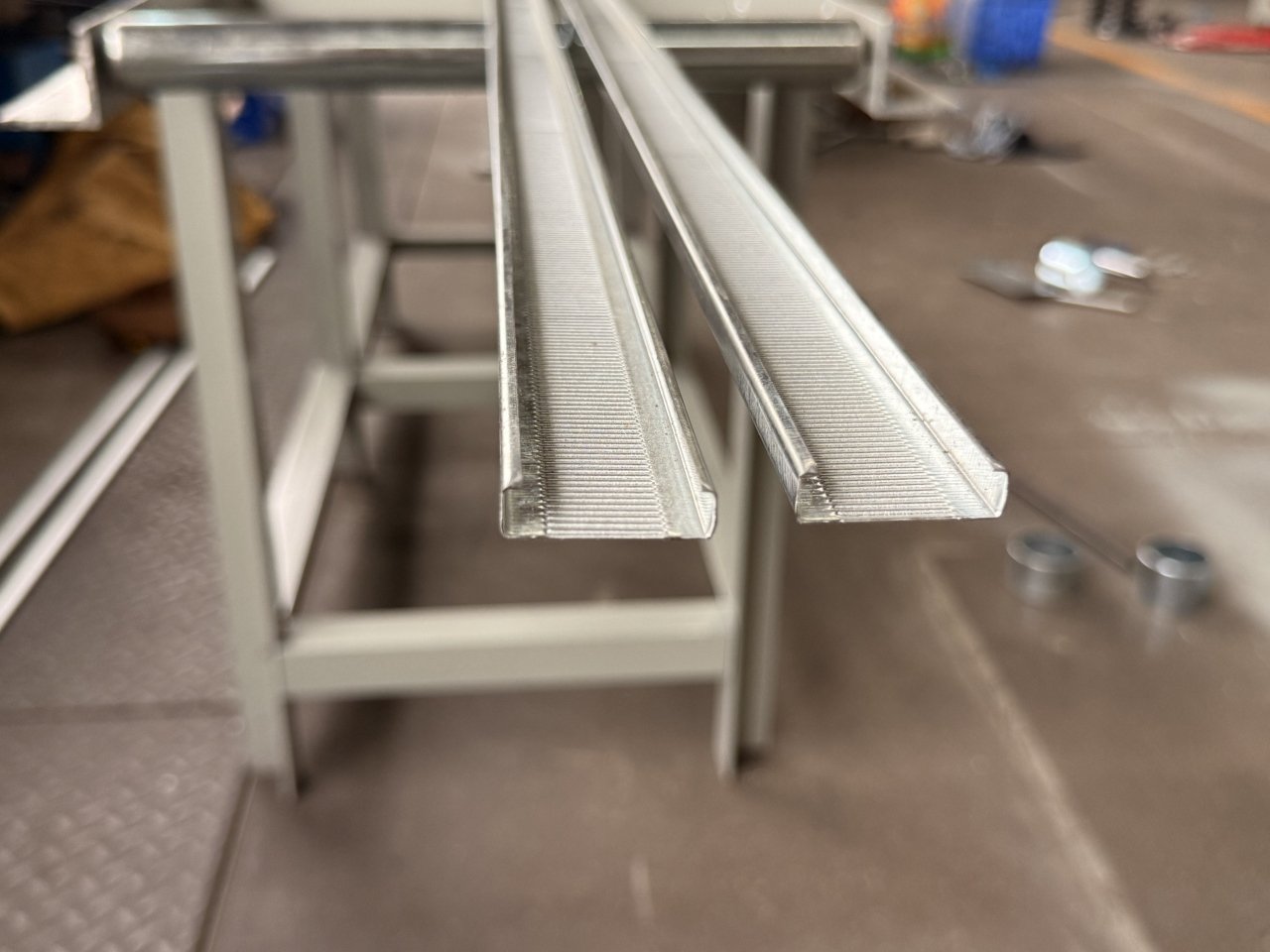

For our current design, the embossed rib design on the profile surface helps improve profile strength and installation stability. We can customize emboss or remove the emboss  according to final product’s applications.





 Machine Advantages

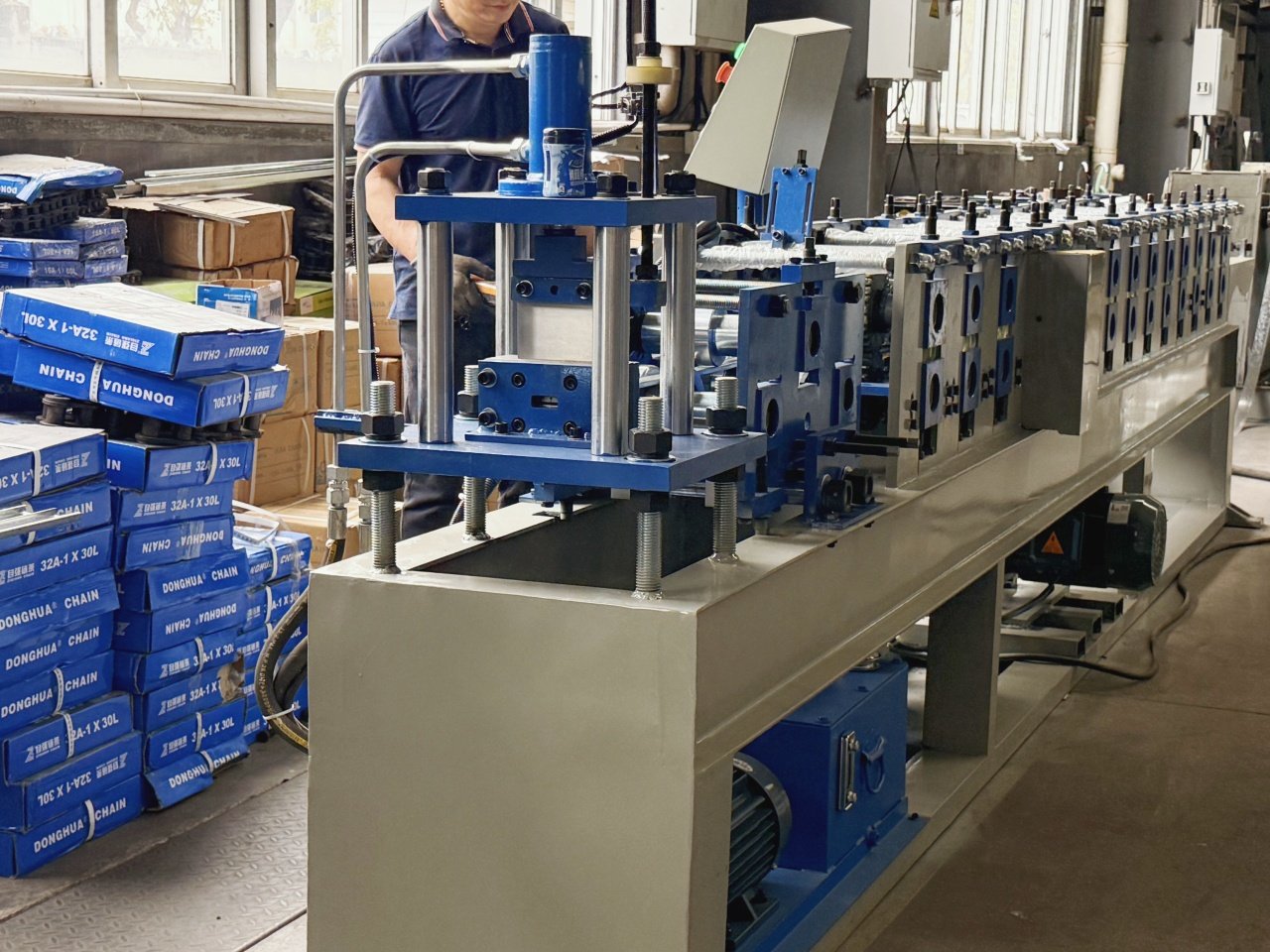

Stable Roll Forming Performance



There are 14 forming stations with 3 straightening sections for this furring channel forming machine, so whole machine’s strong structure ensures smooth profile roll forming and reducing deformation during high-speed production, it is good for keeping metal furring is straight and no waves at the lip positions.



Precision Roller Processing



All forming rollers are manufactured from high-quality 45# steel with hard chrome coating and fine polishing treatment, it has the good advantage of excellent wear resistance and long service life.

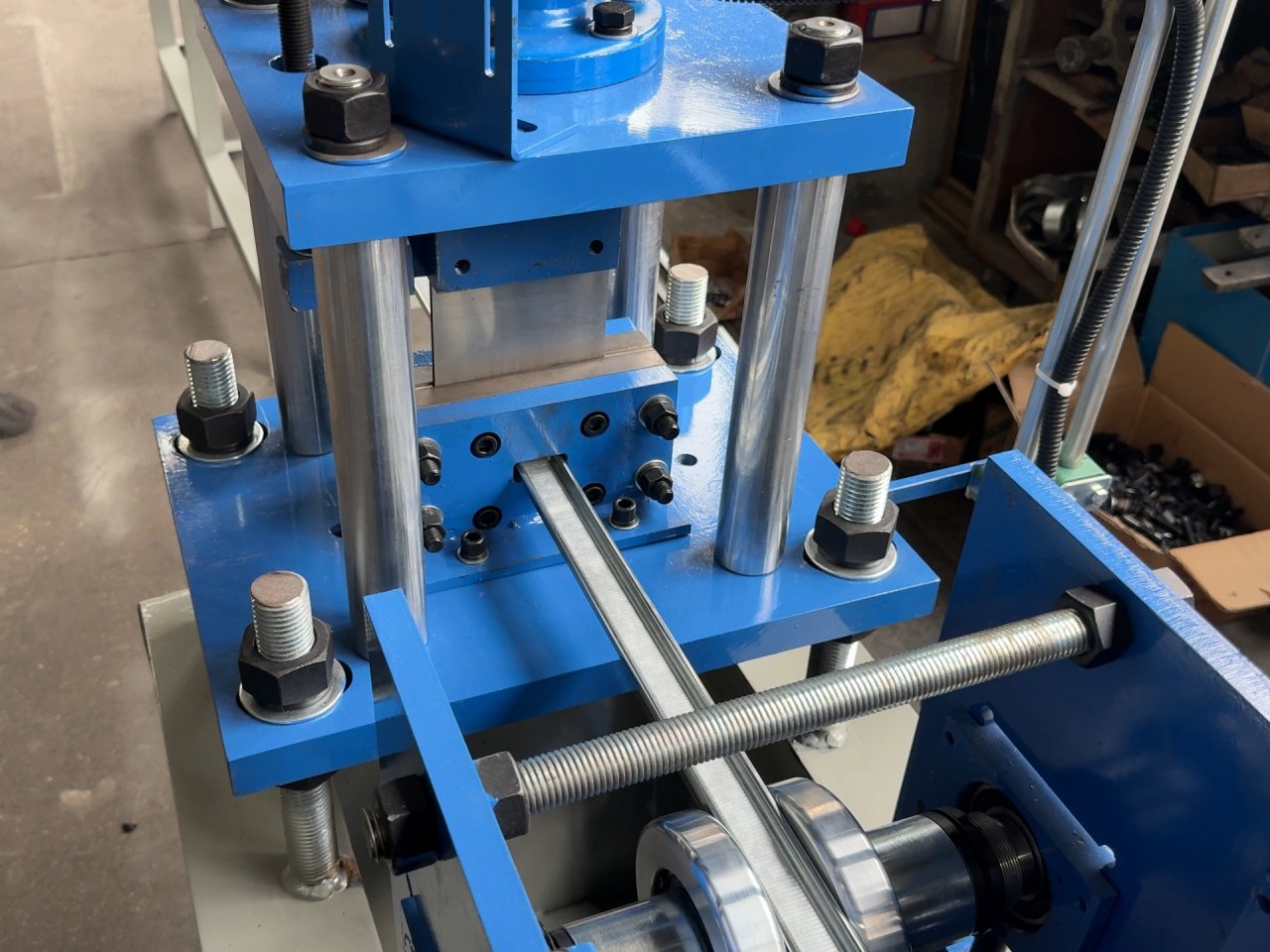

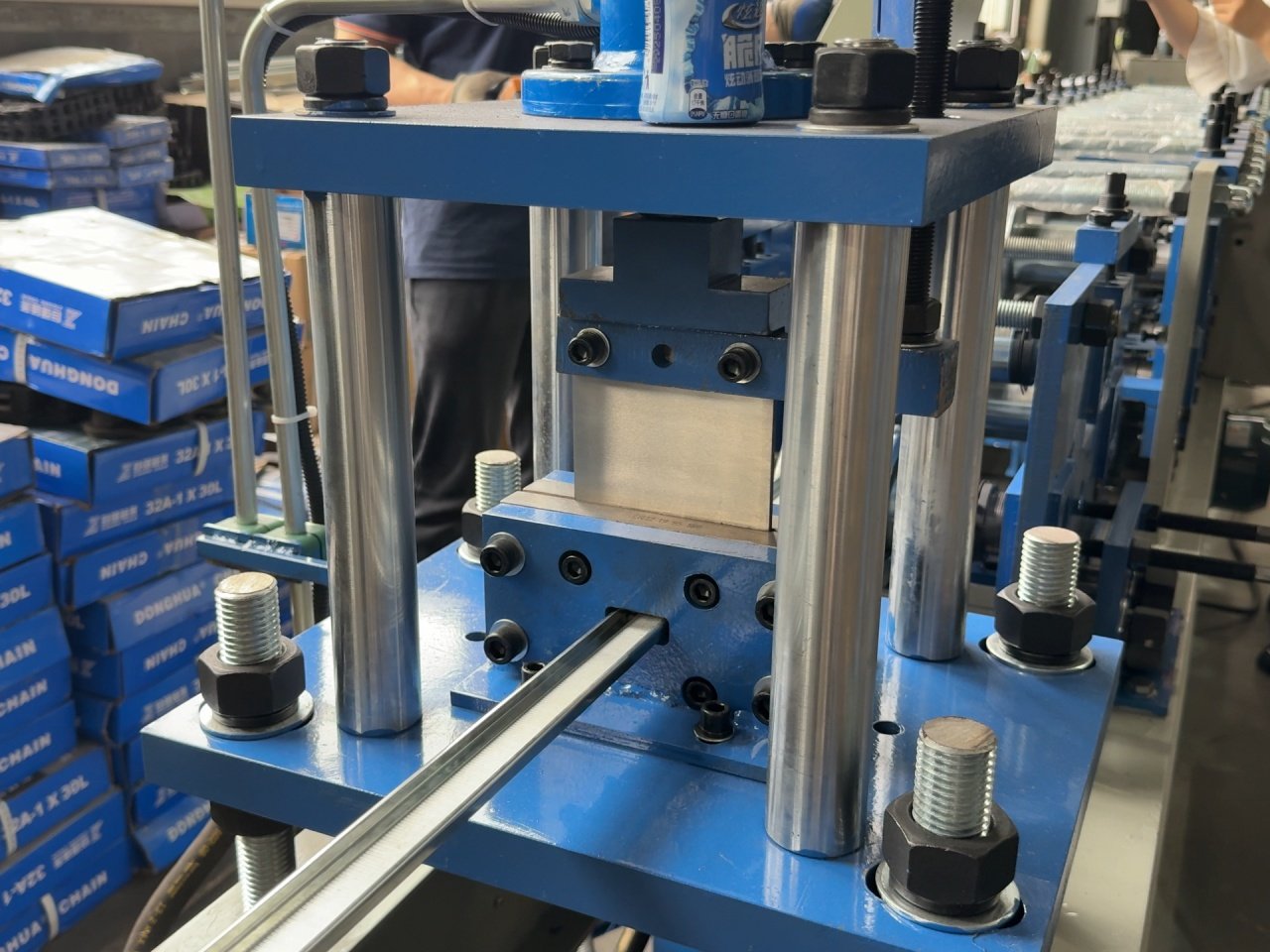

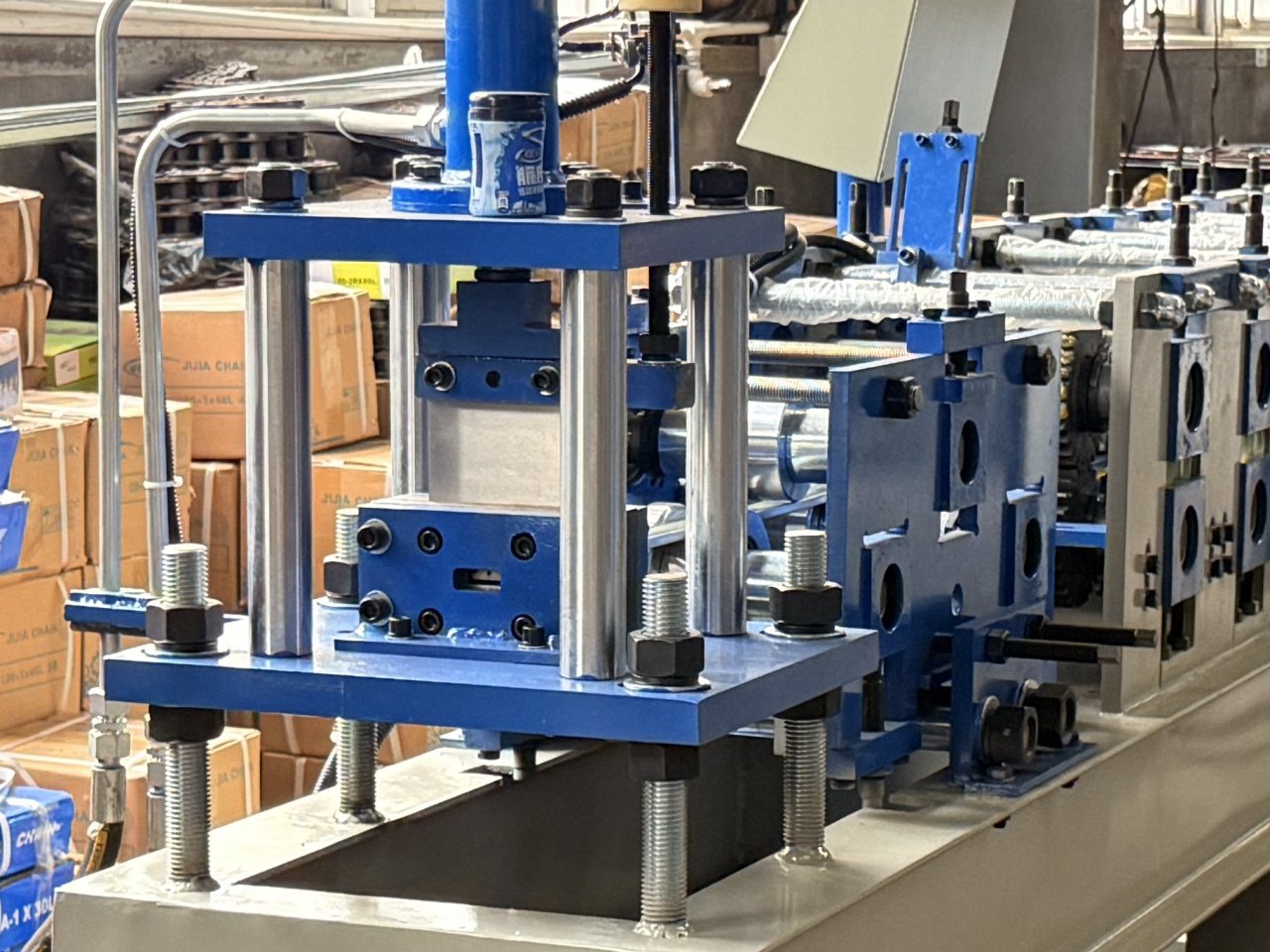

Accurate Cutting System



There are encoders, one encoder for measuring length and the other encoder is for measuring hole distance, so high precision control system and good accuracy Cr12MoV cutting blades, we can get clean cutting edges and stable cutting precision within ±2mm.



Adjustable Speed

The production speed can be adjusted through the frequency inverter control system according to different production requirements.



Digital PLC Control



With high speed motor driving and equipped with PLC control system, all the furring channels length, quantities and working speed can be set on touch screen.







Why Choose Our Roll Forming Machine



As an experienced roll forming machine manufacturer in China, Beenew Machinery provides customized metal roll forming machine solutions according to customer’s profile drawings and market requirements. We also can provide quick delivery, turnkey roll forming project for the roll forming machines you need.



Our metal forming machines are designed with focus on:



* Stable long-term operation

* Fine profile forming product

* Easy maintenance

* Lower production cost

* Fast delivery and technical support



We accept customized profile sizes, punching designs, embossing patterns, and machine configurations according to buyers’ available request.



If you are looking for a reliable Metal Furring Roll Forming Machine supplier, feel free to contact us for machine videos, profile samples, and quotation details.
