Warehouse shelf rack roll forming machine
Shelf rack is a structural frame made of cold-formed steel used as a storage system to support material loads in a horizontal direction.
Description
Shelf rack roll forming machine
The market demand for storage shelves is very large. Its structure is mainly a frame made of steel, and the production machine is mainly a roll forming machine.
Common roll-formed components for racking include:
Rack crossbars are horizontal, load-bearing components used to connect rack uprights and support the rack decks;
Rack uprights are vertical components used to support the entire rack.
Machine Parameters
Material Thickness: 2-3mm
Forming Steps: 20 steps
Roller Material: 45# steel, coated with hard Chrome
Driving Motor: 18.5KW*2
Hydraulic Cutting Power: 7.5KW
Hydraulic Pressure: 10-12MPa
Power Supply: 380V/50HZ/3Ph (can be specified by user)
Cutting Type: Servo cutting, flying cut
Tolerance: ±2mm
Material of Cutting Tool: Cr12MoV
Control System: PLC with touch screen
Machine Dimension: 10800*1150*1650mm
Machine Net Weight: 6.5Tons

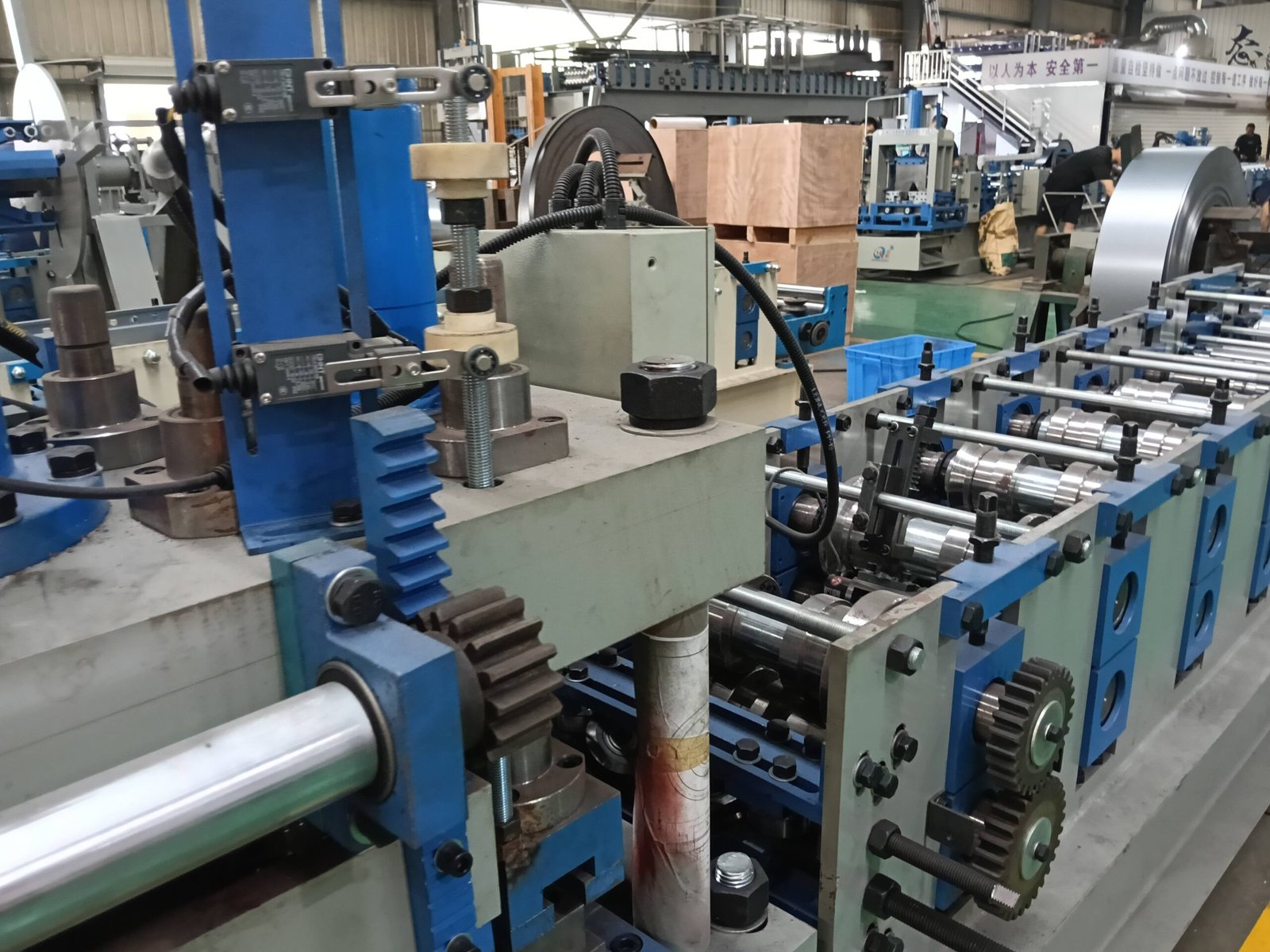

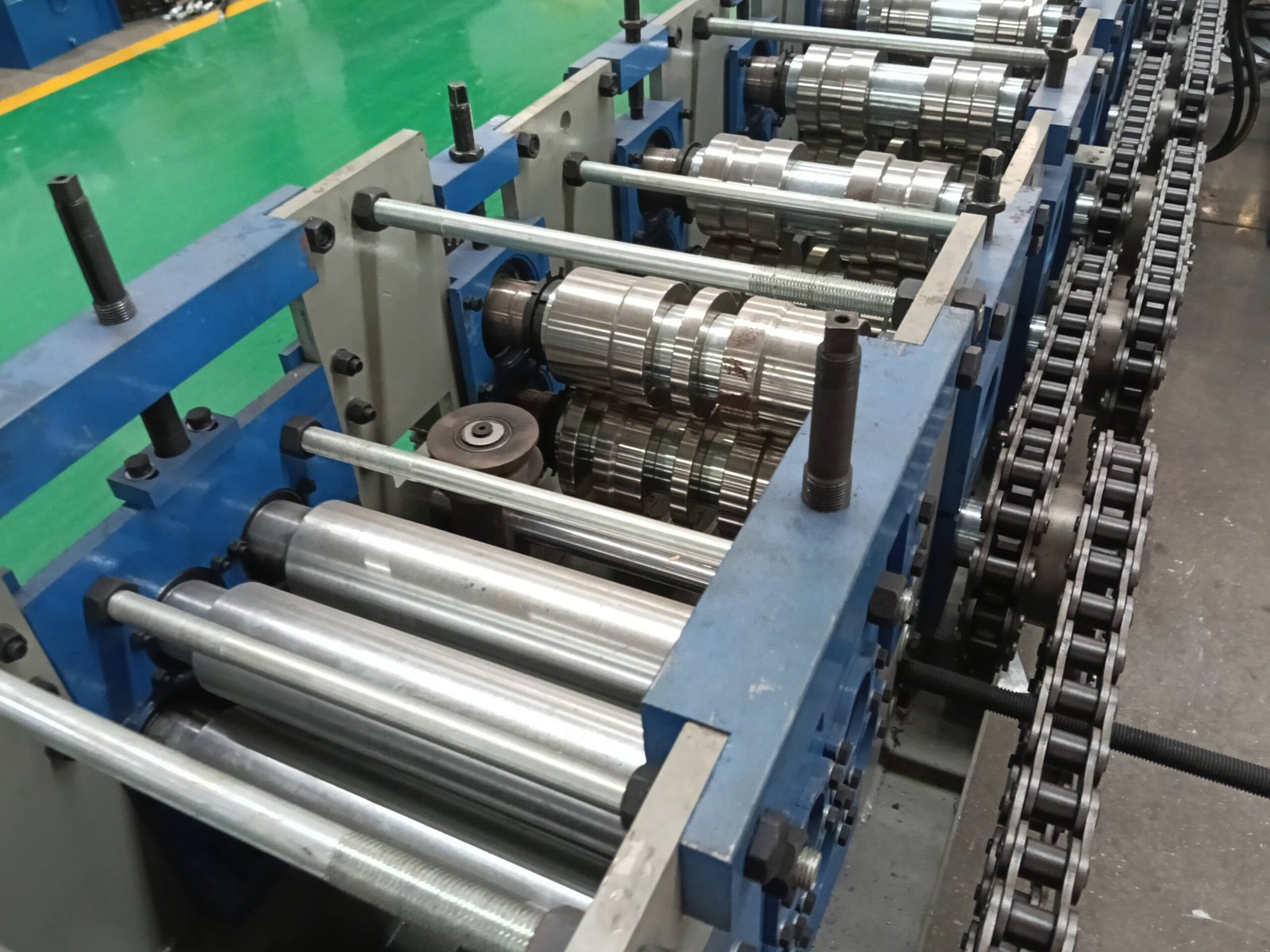

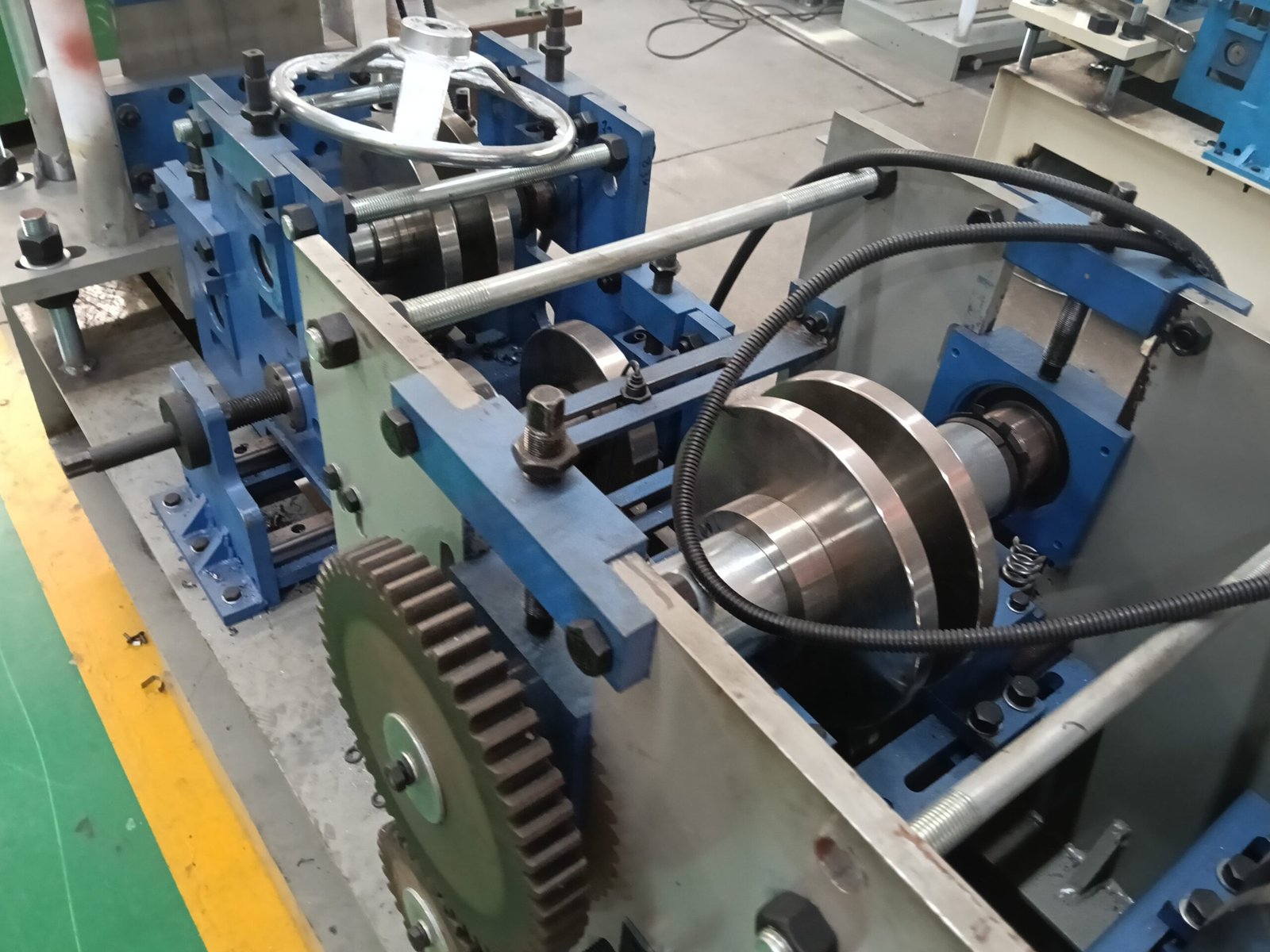

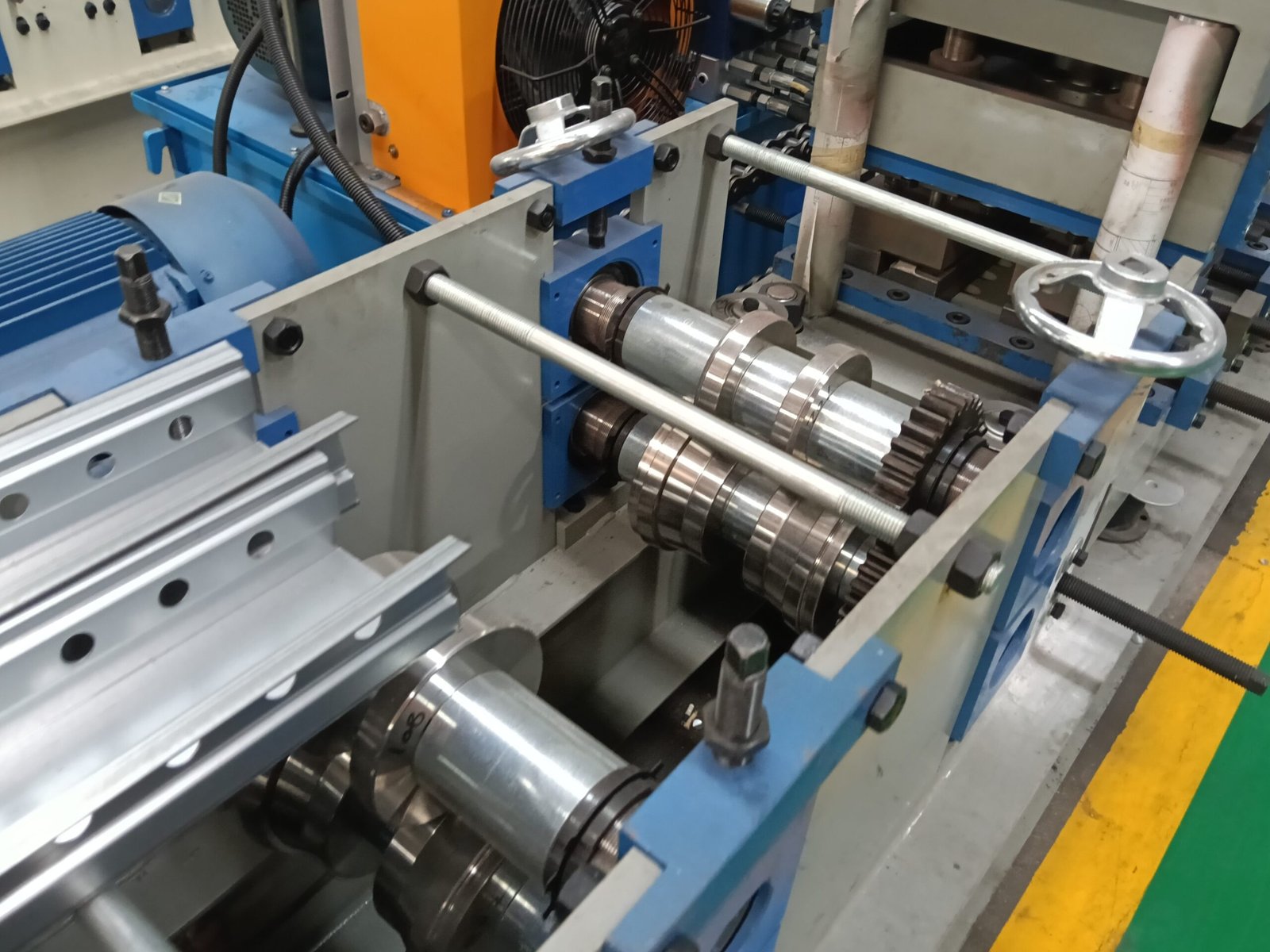

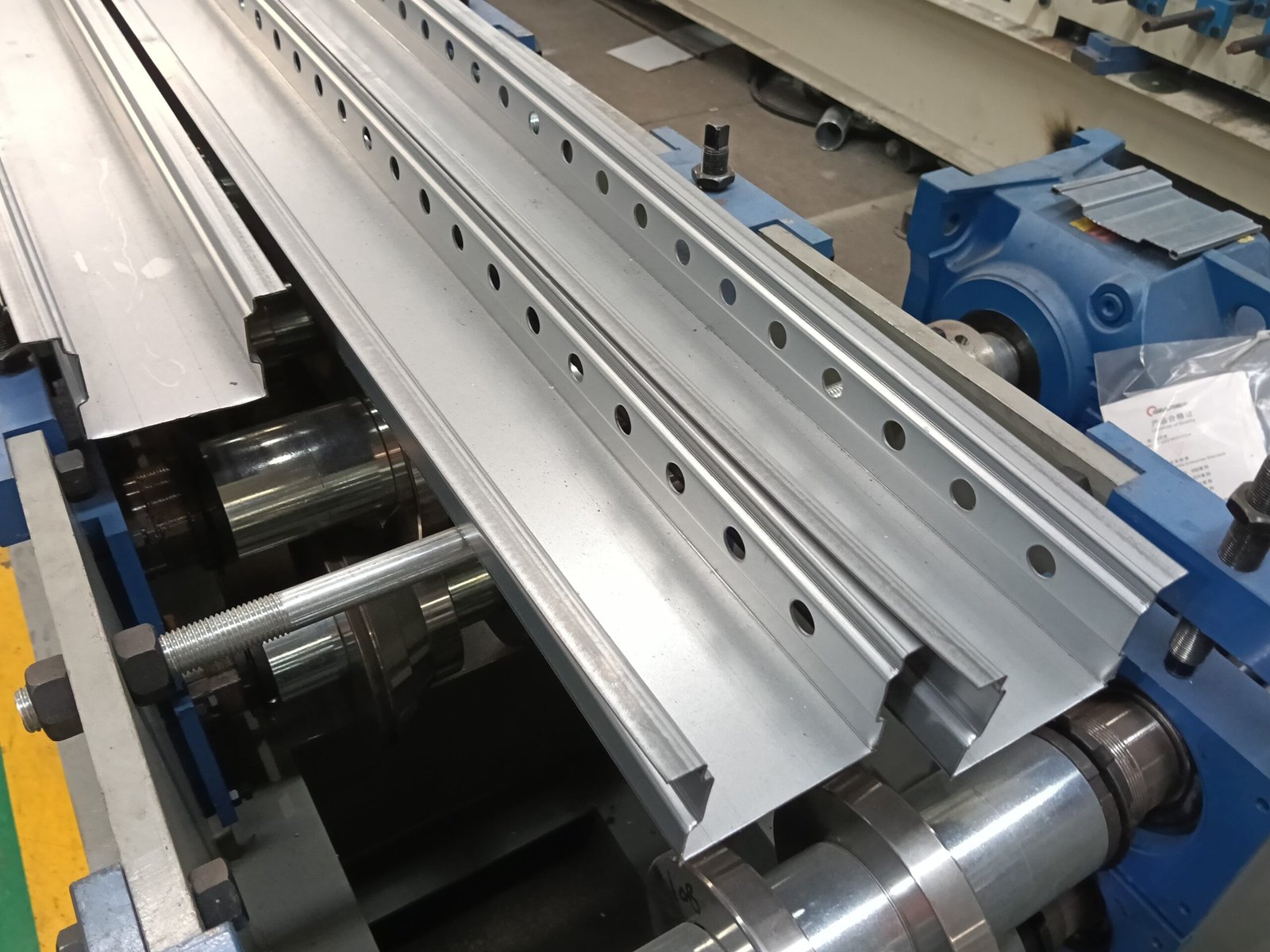

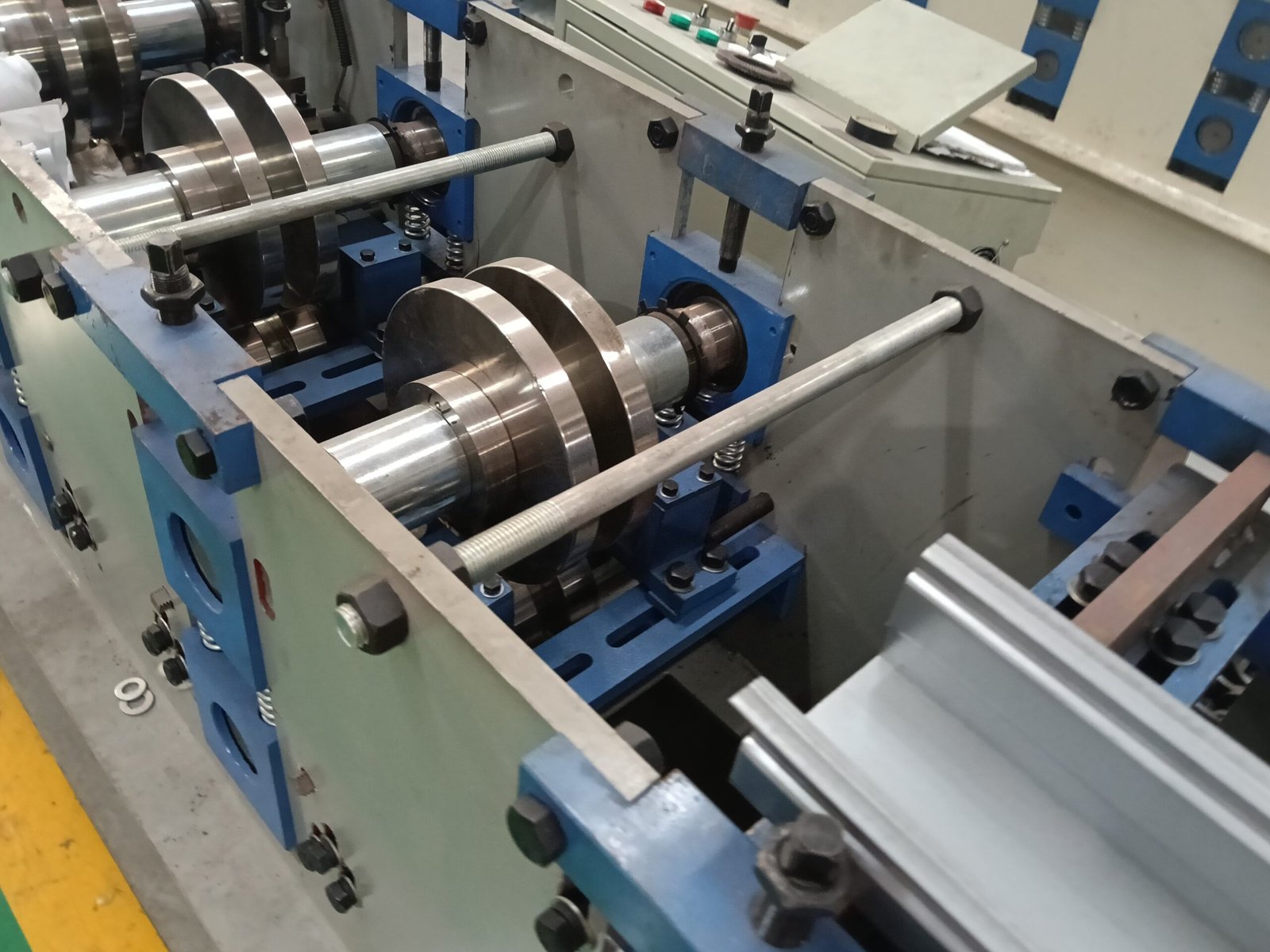

Sample Picture
