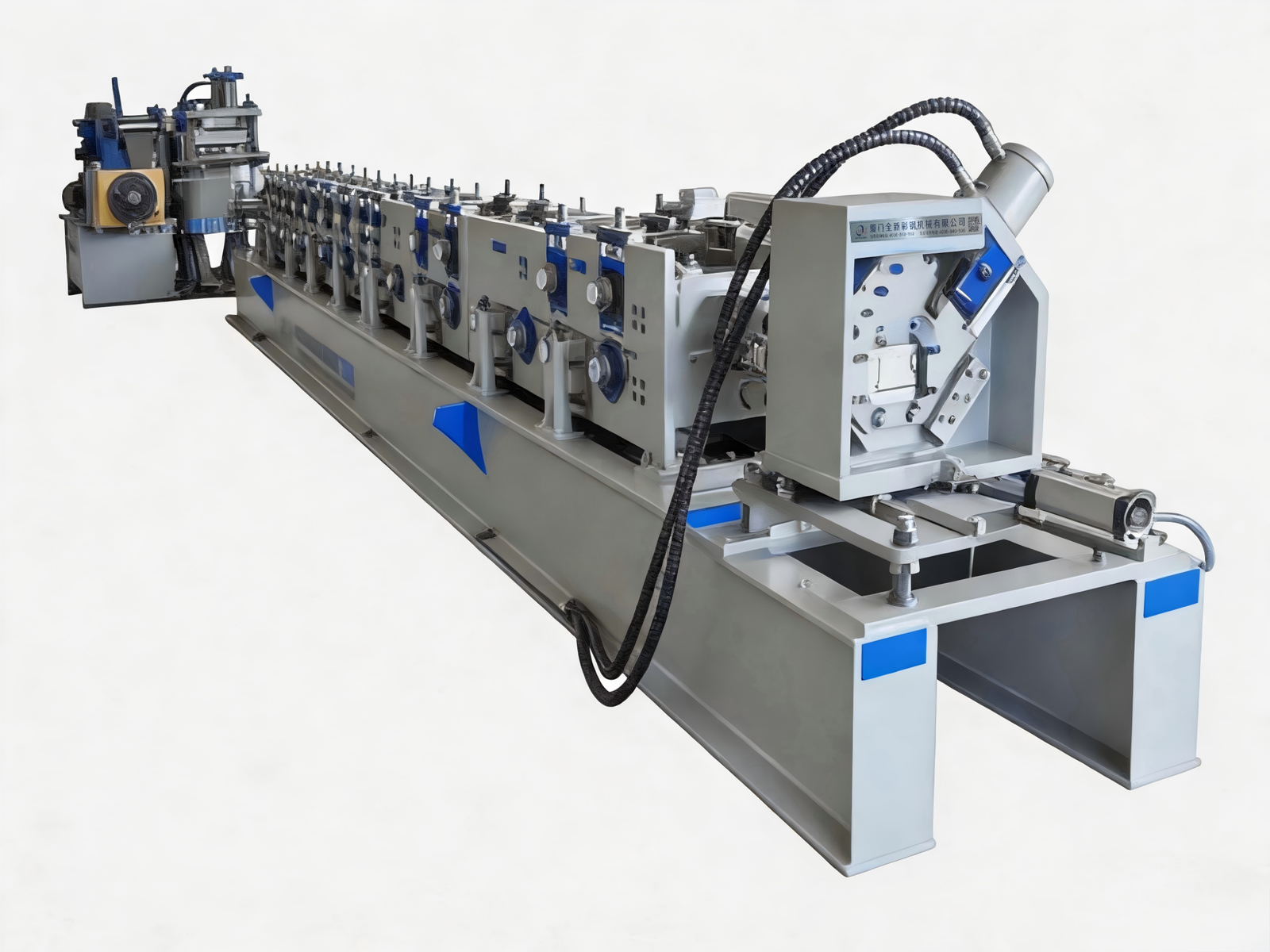

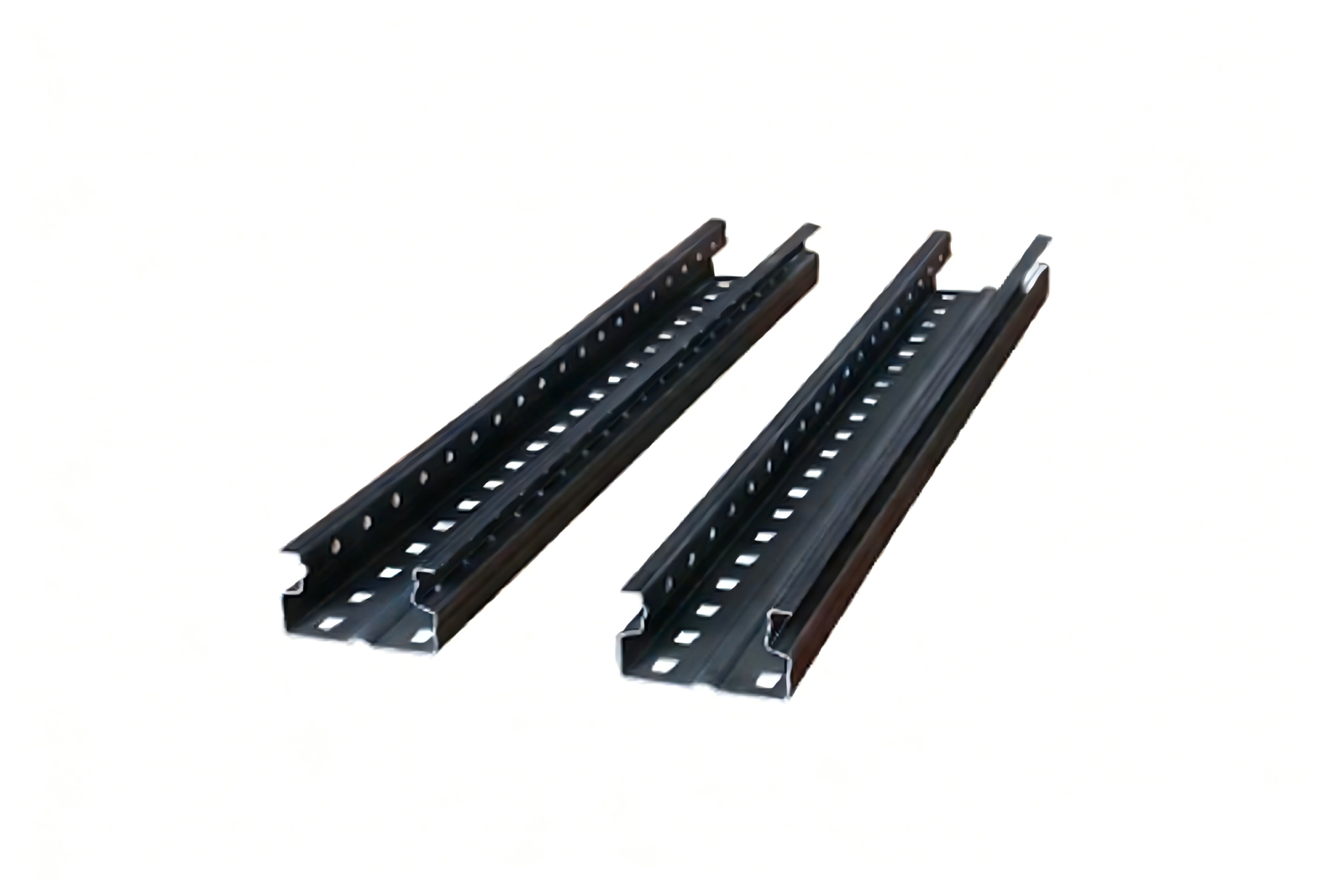

Upright Roll Forming Machine for Warehouse Storage Rack

Description

Upright Roll Forming Machine

–An Efficient Solution for Column Forming



1. Are you currently facing these challenges in your column production?

In steel structure buildings, warehouse shelving systems, and photovoltaic mounting systems, columns function as the primary load-bearing components, where their manufacturing quality directly determines the structural stability and safety of the entire system. However, most manufacturers currently face the following challenges in column production:

Material compatibility challenges: Orders frequently require diverse materials including galvanized sheets, cold-rolled sheets, and hot-rolled sheets, with thicknesses ranging from 1.6mm to 2.5mm. Traditional equipment requires frequent die changes and complex debugging, resulting in low production efficiency;

The column size deviation and section deformation cause the installation misalignment and structure shaking, and the high cost of rework in the later stage;

The equipment has poor durability: wear and tear of wear-prone parts such as rollers and shaft ends is rapid, frequent maintenance shutdowns not only increase costs but also delay order delivery;

Production capacity mismatch: Slow molding speed and low automation levels make it difficult to handle the delivery pressure of batch orders, which limits the company’s expansion;

Weak customization capability: Customers have diverse requirements for column width, hole positions, etc., but traditional equipment struggles to quickly adapt to personalized designs, resulting in missed market opportunities.

If you’re facing these challenges, our Upright Roll Forming Machine delivers end-to-end solutions spanning technology and service.

2. Core Product Advantages of Beenew Machinery: Precisely Addressing Key Challenges in Column Production

1. Multi-material compatibility + width-thickness adaptability: Say goodbye to mold change anxiety

To address the production requirements of “multi-materials and variable thickness”, our equipment is optimized from the design phase:

Extensive material compatibility: Supports various common metal sheets including galvanized, cold-rolled, and hot-rolled plates, meeting raw material requirements for construction, warehousing, new energy, and other industries.

Automatic thickness adjustment: Capable of processing materials with thicknesses ranging from 1.6 to 2.5mm. The forming roller features a progressive pressure distribution system, enabling stable processing of plates of varying thicknesses without mold replacement. The single-material changeover time is reduced to under 30 minutes, significantly enhancing production flexibility.



2. 18-station progressive forming + high-rigidity body: controllable precision to ±0.2mm

The core challenge in column forming lies in “sectional accuracy and structural stability”. We achieve high-precision output through three-tiered technical safeguards:

18-step forming station: Using progressive roll forming technology, the sheet metal deformation is divided into 18 consecutive processes to prevent stress concentration and cross-sectional distortion caused by single-step forming, ensuring that the straightness and perpendicularity deviations of the columns are controlled within ±0.2mm;

The H450 high-rigidity frame: The main body is welded from H450 steel with 25mm thick side walls. Paired with a 45# steel transmission shaft (φ80/65mm), it withstands high molding pressure without deformation during long-term operation, structurally eliminating precision drift;

The PLC closed-loop control system features an industrial-grade PLC that collects real-time integrated data on pressure and speed, automatically adjusts roller position and pressure parameters, and utilizes high-precision encoder feedback to achieve digitalized process control. This ensures consistent precision even during mass production.



3. Wear-resistant design + Low maintenance cost: Extended equipment lifespan by 30%

The long-term stable operation of the equipment depends on the reliability of its key components.

Gcr15 wear-resistant roller: The forming roller is made of Gcr15 bearing steel, achieving a hardness of HRC58-62 after quenching treatment. Its wear resistance is twice that of conventional rollers, with a service life of 1-2 years under normal operation, significantly reducing downtime caused by frequent replacements;

8.8-grade high-strength fasteners: The fuselage connection bolts utilize 8.8-grade high-strength screws, providing impact resistance and anti-loosening performance. They maintain structural integrity even under high-frequency vibration molding conditions, preventing precision deviations caused by bolt loosening;

Powertrain: The 15KW main motor and 11KW hydraulic motor are both top-tier domestic brands, delivering stable power output with lower energy consumption. The hydraulic system features precision filters and cooling devices to minimize oil contamination and component wear, extending maintenance intervals to 6 months.



4. High-efficiency molding + intelligent linkage: 40% increase in production capacity

To meet mass production demands, the equipment has undergone comprehensive optimization, evolving from single-machine efficiency to full-line coordination.

6-8m/min high-speed forming: With a forming speed of 6-8 meters per minute and the rapid feeding capability of the 5T-600mm hydraulic unwinder, the production capacity exceeds 2000 meters per shift, achieving a 40% efficiency improvement over traditional equipment;

PLC intelligent linkage: Enables seamless signal integration with subsequent cutting and stacking equipment, automating the entire workflow from uncoiling to forming, cutting, and stacking. This reduces manual intervention and minimizes operational errors;

Customizable effective width: The system allows precise adjustment of the effective width to meet client design requirements, enabling seamless switching between narrow-section shelf columns and wide-section photovoltaic brackets through adjustable roller assemblies, thus fulfilling diverse order specifications.

5. Detailed Technical Parameters: Strength Comes from Details

No.	Main Parameters	parameter values	Roll forming mill parameters	parameter values
1	Material Thickness	1.5-2.5mm	Forming Stations	19-steps
2	Feeding width	Customize according to the drawing	Body Frame	H450
3	Application Material	galvanized sheet / cold rolled sheet / hot rolled sheet	Side Wall Thickness	25mm
4	Electrical Standard	415V/50Hz/3Ph (Other standards available)	Shaft Diameter	45# Steel, φ85/70mm
5	Hydraulic Decoiler Diameter	5T-600mm	Main Motor Power	15.0 KW
6	Yield Strength	Q235-350Mpa	Screw Bolts	Grade 8.8
7	Forming Speed	8-10m/min	Effective Width	As customer design
8	Control System	PLC Control System	Roller	Gcr15 Steel
9	Hydraulic Motor	11.0KW	Machine Color	Blue+Gray



6. FAQ: Addressing Customer Concerns

Question 1: My production line needs to process both galvanized and hot-rolled sheets simultaneously. Can the equipment handle this workload stably?

Solution: The solution is feasible. The equipment’s forming roller features a “flexible pressure adjustment” design. To meet the surface coating protection requirements of galvanized sheets, the roller surface is polished to prevent coating damage. For hot-rolled sheets with high hardness, the roller achieves HRC58-62 hardness, ensuring wear resistance and impact resistance. Additionally, the PLC system includes a built-in material compatibility parameter library. When switching materials, only preset parameters need to be invoked, combined with fine-tuning of the roller clearance, to achieve stable forming without mold replacement.

Question 2: How to maintain column precision stability in long-term production?

Solution: We ensure precision stability through a three-dimensional approach of “hardware + software + service”. The H450’s high-rigidity frame and 45# steel drive shaft provide deformation resistance. The PLC system collects integrated data in real time, automatically triggering compensation when wear-induced precision drift is detected. For service, we offer quarterly precision calibration using laser diameter gauges to measure column cross-sections, with targeted adjustments based on wear conditions to maintain long-term accuracy.

Question 3: Is equipment maintenance complex? Is spare parts procurement convenient?

Solution: The equipment features a modular design with core components (e.g., rollers, motors) as standard parts, enabling quick disassembly and replacement during maintenance. We provide a detailed Maintenance Manual specifying replacement cycles and operational procedures for wear parts. Spare parts warehouses are located in multiple industrial cities across China, ensuring 48-hour delivery for common wear parts (e.g., rollers, seals) and reliable logistics support for remote areas. Additionally, our technical team offers 24/7 remote assistance to resolve emergency maintenance issues.

Question 4: Can we customize the design based on my current production line layout?

Solution: Available. Our pre-sales engineers will conduct on-site surveys of your production facility. By analyzing the layout of existing equipment, production capacity requirements, and power distribution conditions, we provide customized end-to-end line design solutions. From optimizing equipment dimensions and electrical interface compatibility to planning material flow paths, all adjustments can be tailored to ensure seamless integration of new equipment with existing production lines, thereby avoiding capacity waste.

Question 5: What should I do if the equipment’s electrical standards don’t match my factory’s power distribution?

Solution: Our equipment operates on the standard 415V/50Hz/3Ph configuration, with customizable options including 380V/60Hz. During pre-sales consultation, our electrical engineers will verify your factory’s power distribution parameters, provide tailored transformer and switchgear solutions, and conduct pre-commissioning tests before shipment. This ensures seamless operation upon on-site installation.



7. Application Scenarios: Meeting the Production Needs of Pillars in Multiple Industries

In the field of steel structure construction, it is used to manufacture factory columns and high-rise steel structure support columns, with high-rigidity forming to ensure the building’s wind and earthquake resistance;

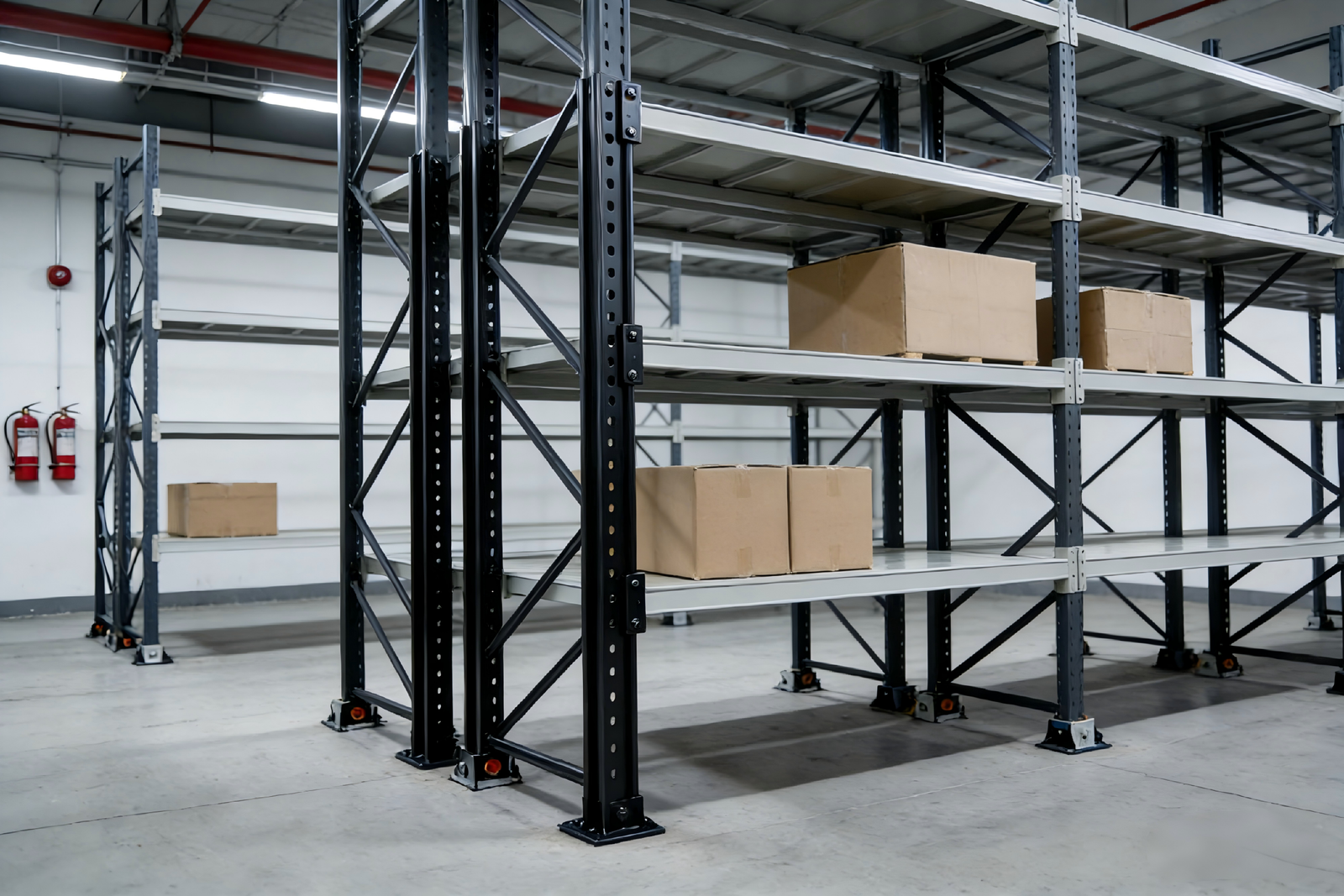

Warehouse shelving solutions: Customized shelving columns and beam profiles with precision cross-sections to enhance load-bearing capacity and space utilization efficiency;

Photovoltaic support systems: Manufacture vertical columns and inclined beams to accommodate diverse terrain installations, featuring corrosion-resistant materials that extend outdoor durability;

Elevator manufacturing sector: Forming elevator guide rail columns with high-precision straightness to ensure stable and safe elevator operation.



8. Service and Support: Full-cycle Guarantee from Pre-sales to Post-sales

Pre-sales service: Free production line design, capacity assessment, and site planning. Our dedicated 1V1 engineer will match your requirements to ensure optimal equipment compatibility;

After-sales service: Real-time live streaming of equipment production, allowing customers to remotely monitor key processes. Continuous 72-hour pre-production testing is conducted, with complete “Test Reports” and “Operation Manuals” provided;

After-sales service: We provide worldwide on-site installation and commissioning, a 12-month warranty for the entire unit (with 18-month warranty for core components), a 24/7 technical support hotline, regular follow-up inspections to monitor equipment performance, and customized recommendations for equipment upgrades and production capacity optimization.

9. Take immediate action: Get exclusive column forming solution

If you’re seeking a pillar forming machine that delivers “high precision, high efficiency, and high durability,” our vertical roller press is your ideal choice. Click “Consult Now” below to submit your production capacity requirements and material specifications. We’ll provide you with a customized solution and quote within 24 hours, helping your pillar production eliminate inefficiency and errors for a stable and efficient manufacturing experience!
