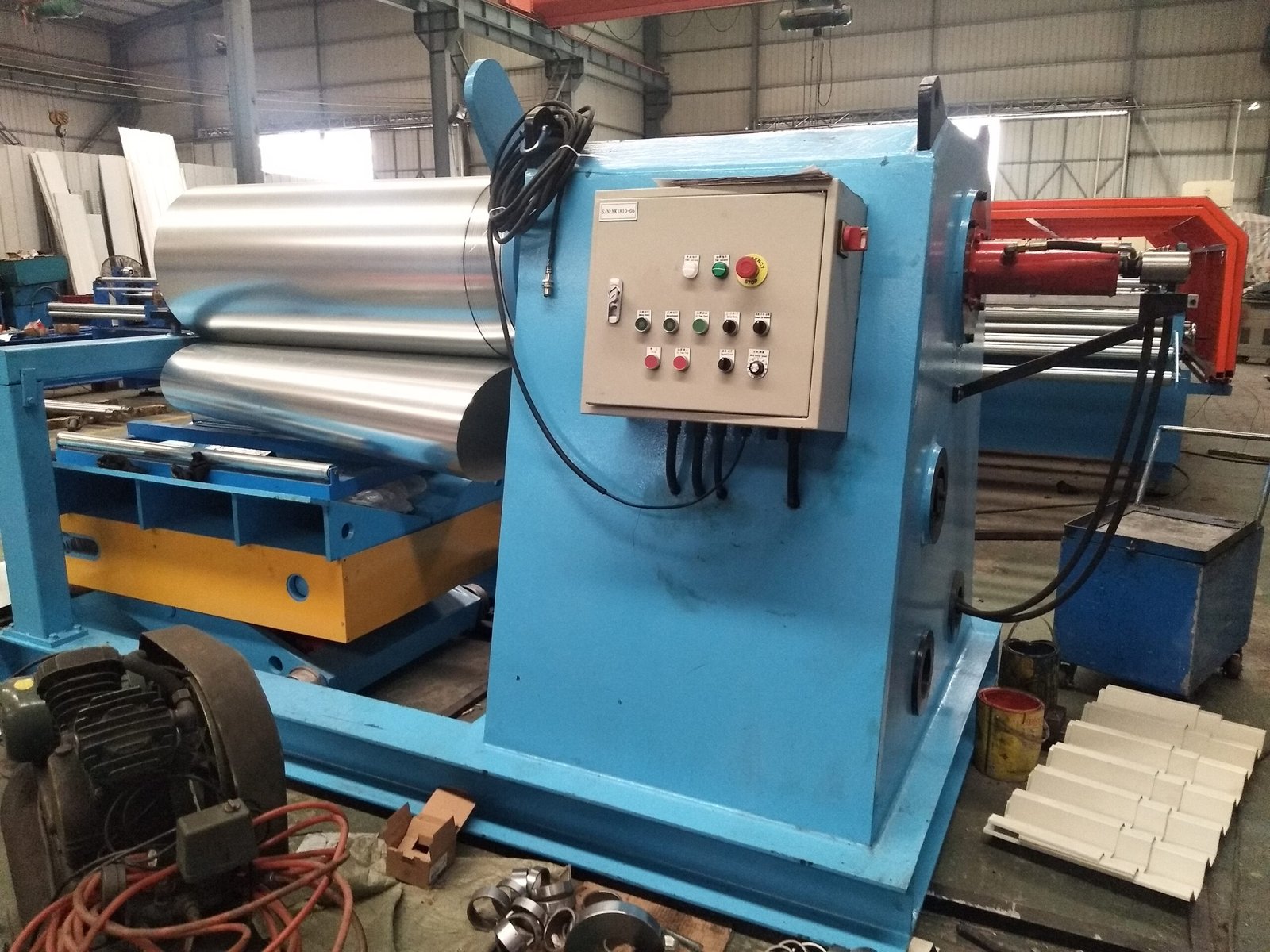

Steel Hydraulic Un-Coiler

Description

Product Description

A heavy-duty hydraulic de-coiler with coil car is necessary for metal roof roll forming machine lines, metal deck roll forming machines, cut-to-length lines, and slitting lines. The material width can be customized to suit requirements, and buyers can choose whether or not to include a compacting arm.





Machine Applications

The market offers several popular capacities: 5-ton hydraulic un-coilers, 8-ton hydraulic de-coilers, 10-ton hydraulic de-coilers, 12-ton hydraulic de-coilers, and 15-ton hydraulic de-coilers. Un-coiler capacity depends on raw material feeding width and steel coil weight. Hydraulic de-coiler with coil car’s capacity usually weigh over 5 tons.

Among other uses, the 12-ton hydraulic de-coiler with coil car is utilized in bridge decking machines and heavy-duty roofing machines.

Short Information Material Thickness: 0.8~1.2 mm Material: pre-painted coil with a yield strength of 345 MPa;

The input width is 1250 mm;

Maximum material weight is 12 MT;

Approx. 200 mm is the diameter of the principal shaft;

Coil-ID: 480-540 mm;

Coil outer diameter: max. 1500 mm;





Details of technical parameters for the de-coiler

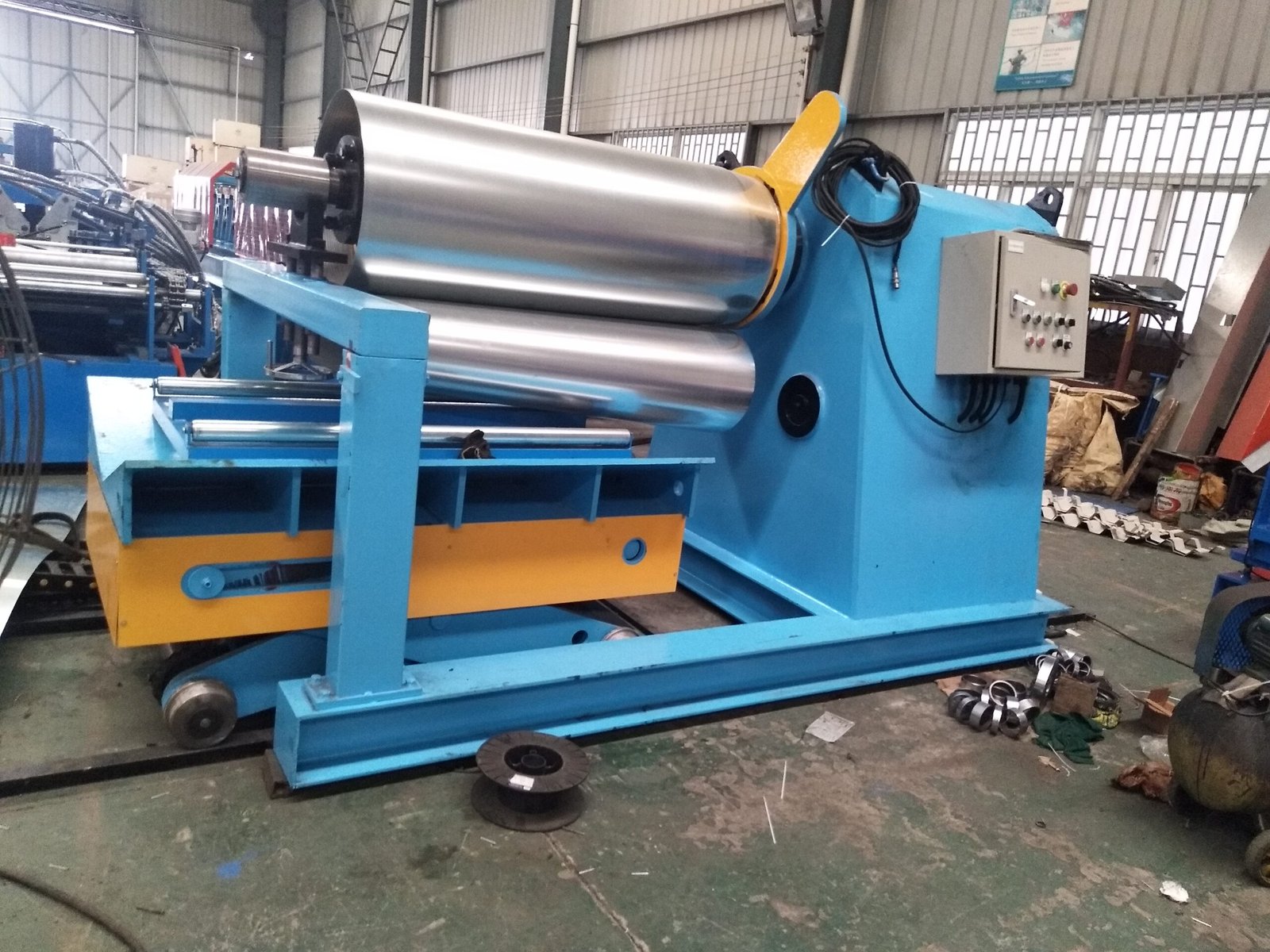

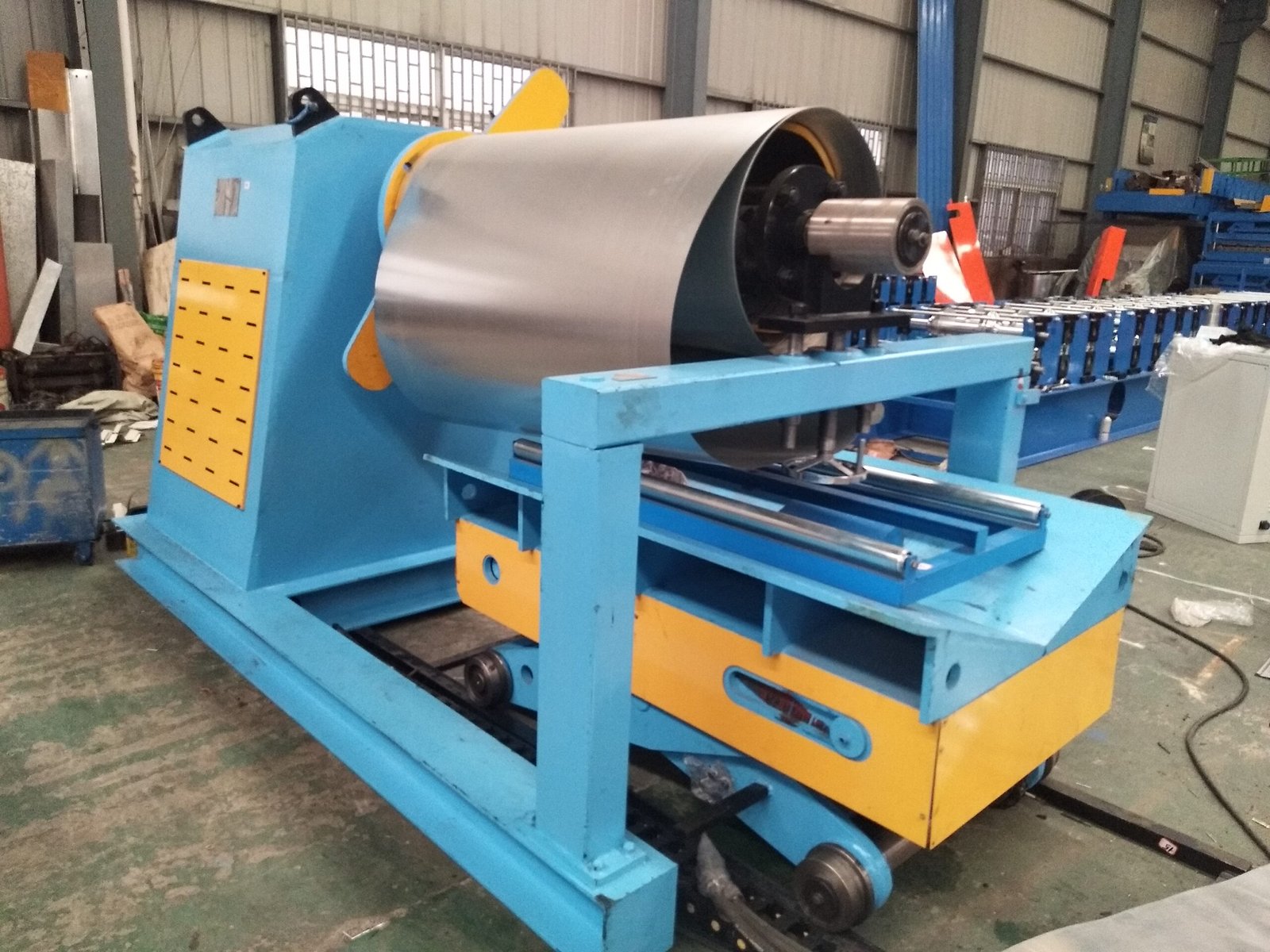

Hydraulic un-coiler with coil car

15Tx1500m Hydraulic motor: 5.5KW, hydraulic system expansion for coil inner hole;

Main motor: 7.5 kW, frequency inverter for regulating rotation speed and taper wedge expanding system;

A support arm at the end of the main mandrel keeps the machine stable;

The rotation speed should be aligned with roll former machines, given a maximum line speed of 15 m/min.

Max. load capacity: 15t;

Diameter of the main shaft: approx. 200 mm, Coil ID: 480-540 mm,Coil OD = Max. 1300 mm;

Coil outer diameter: max. 1600 mm;

During a stop for packing, the coil is secured in position by hydraulic compacting arms located on top;

Coil car with a 15-ton capacity driven by an independent motor

Coil car’s vertical stroke: up to 300 mm;

Coil car forward/backward stroke: Maximum 1600mm.
