Standing Seam Machine For Sale

Description

Standing Seam Machine For Sale



We Xiamen Beenew genuinely collaborate with you to build a brighter future for the standing seam metal roof machine for sale, portable standing seam roll former, and standing seam roller machine industries in China! The quality of our goods, production process, testing techniques, and other elements have evolved to the highest level in the portable standing seam roofing machine for sale sector thanks to our robust R&D capabilities, cutting-edge equipment, scientific management, and stringent control system. We actively seek to develop more exceptional people in the hopes of offering a robust talent guarantee and intellectual assistance to meet the objective of creating a cutting-edge, globally competitive business.

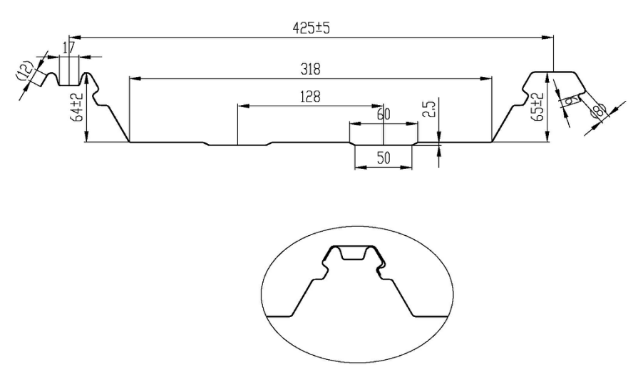

Raw Material Specification

Material: Q235 color-coated steel plate

Feed width: 610mm

Effective forming width: 425mm

Thickness: 0.5-0.8mm



Standing Seam Machine Key Parameters

Cycloid drive motor: 7.5kW

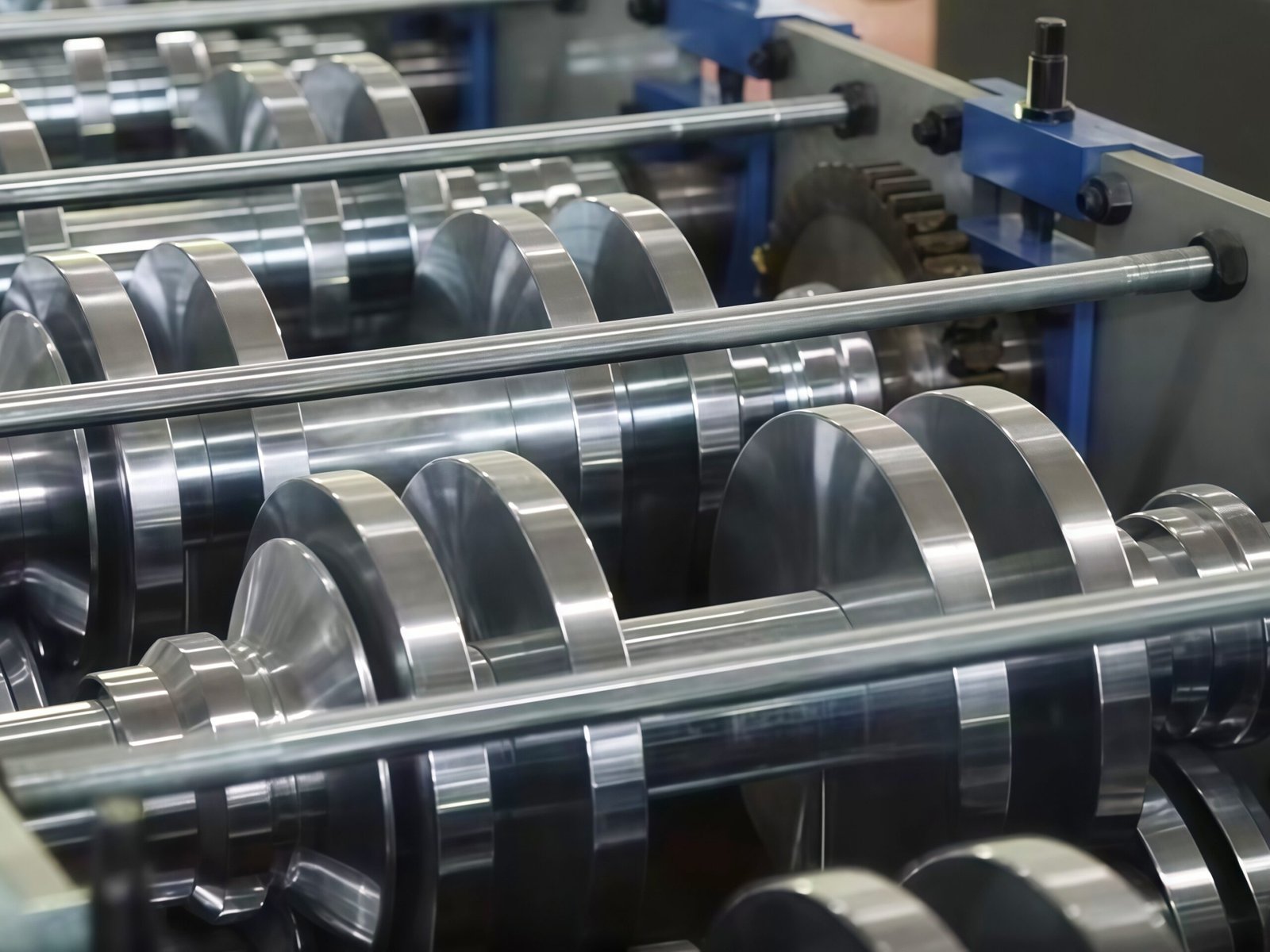

Roller diameter: 65mm

Wallboard thickness:18mm

Frame size: H350 (two-section machine, bolted)

Forming passes: 20

Roller material: 45# steel, electroplated exterior

Forming speed: approximately 13-15m/min (excluding shearing)

Drive method: Motor + chain drive

Voltage standard: 220V/60Hz/3PH (or customized)

Speed: regulation AC variable frequency drive

Drive method: Geared motor + chain drive

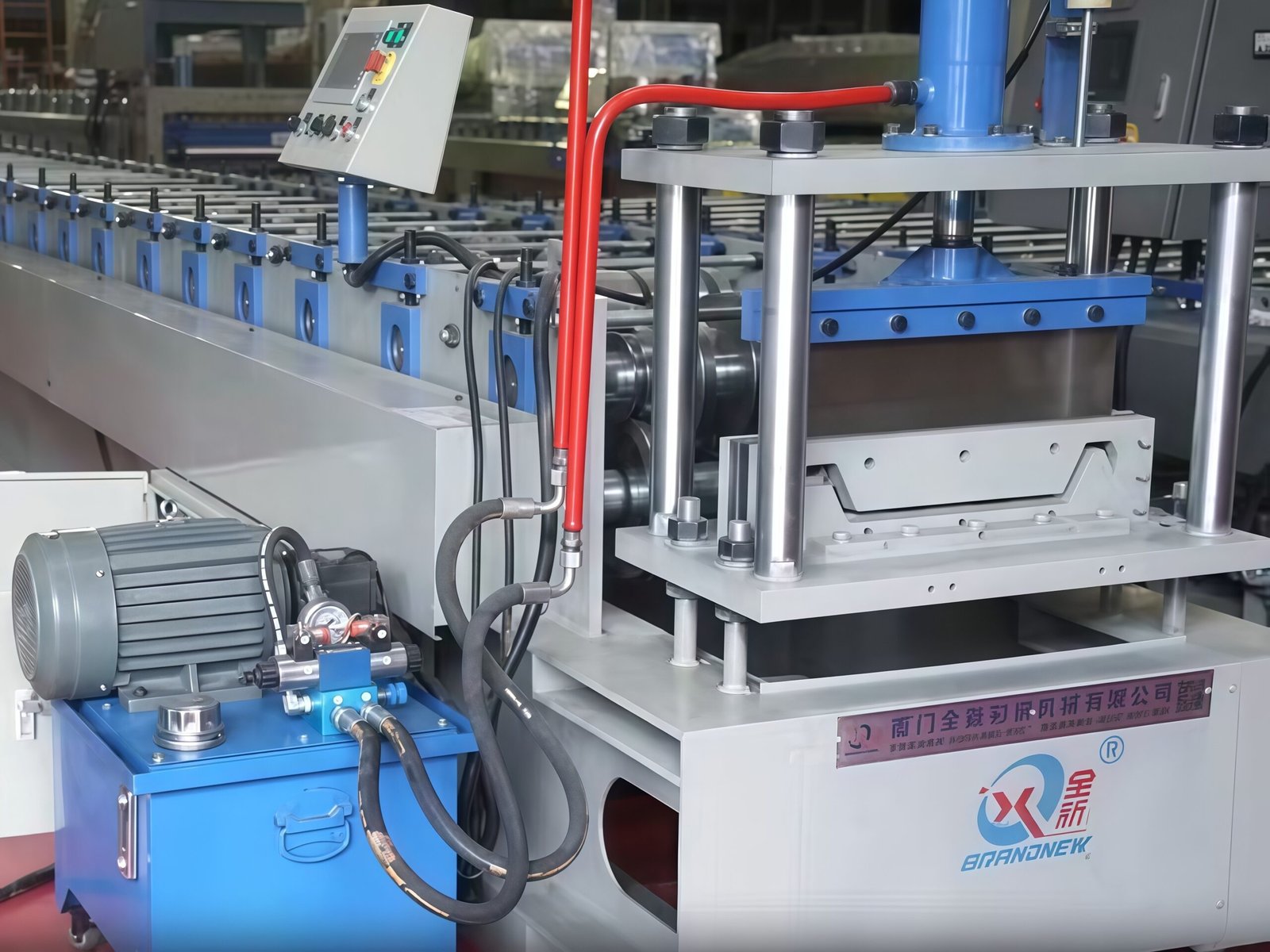

Hydraulic motor: 4kW (external oil tank, movable casters on the bottom)

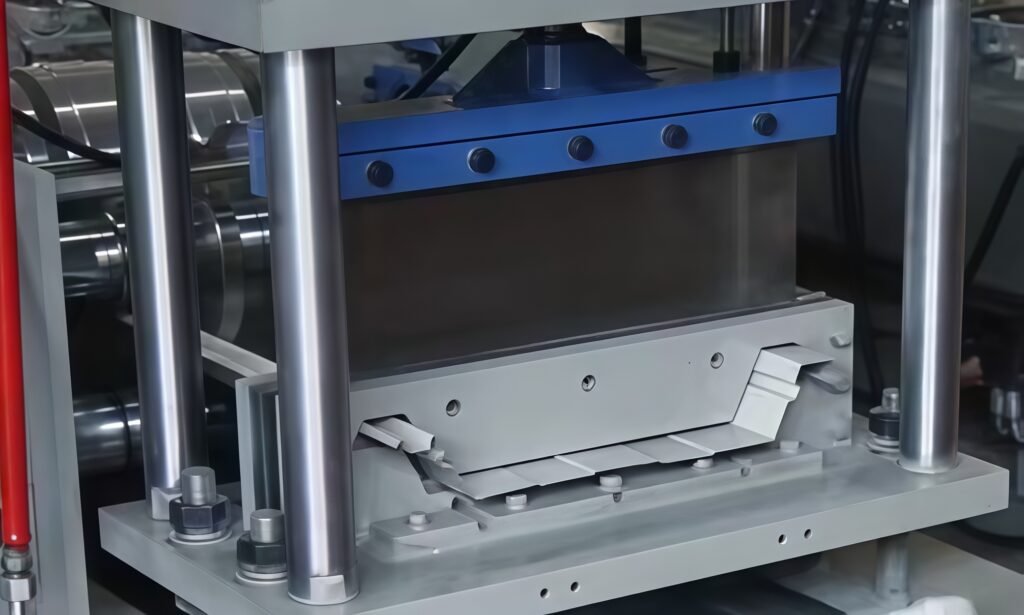

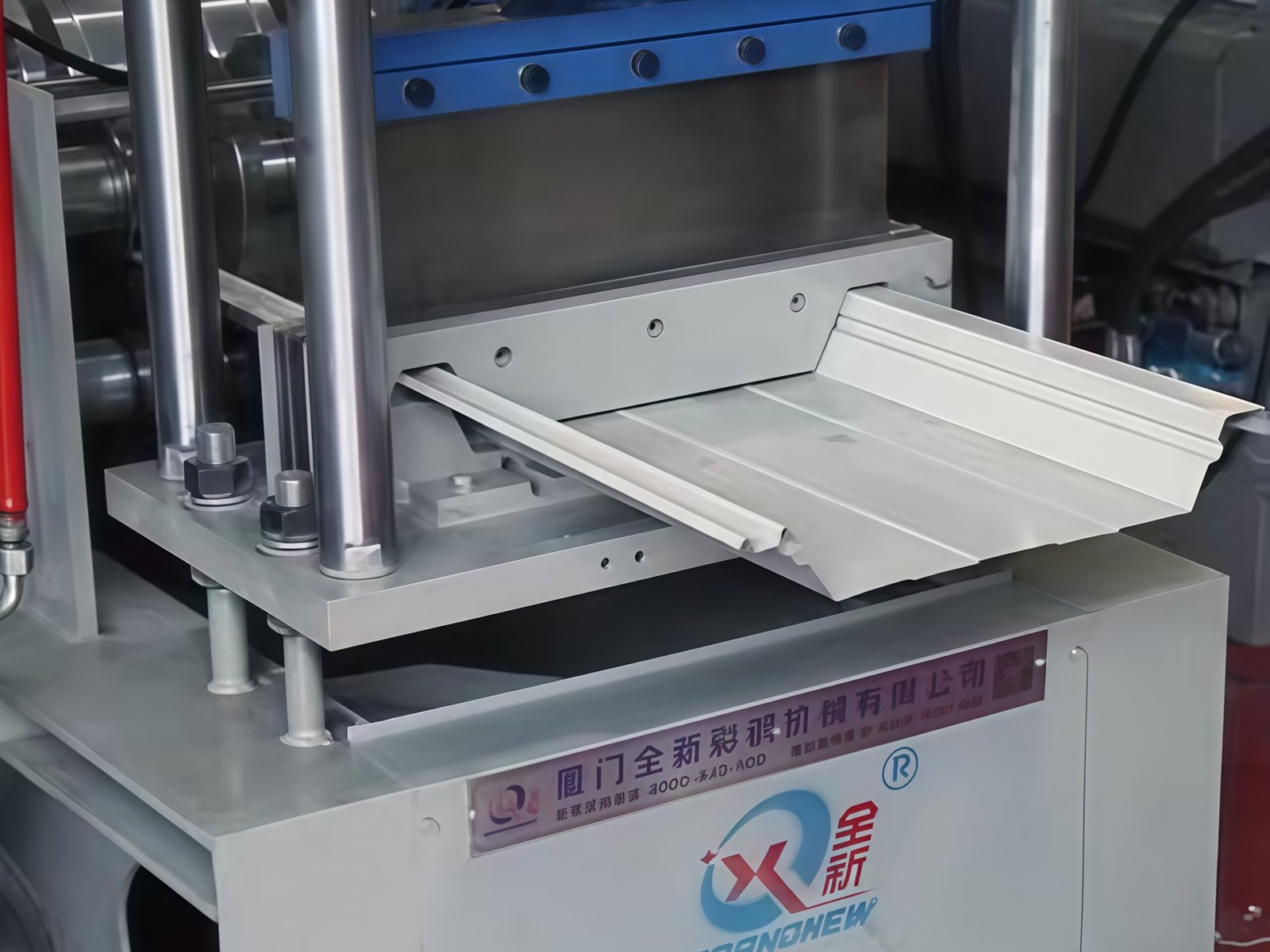

Post-hydraulic shearing: Shutdown shear with three-blade blades, blade material: CR12, heat-treated

Length measurement: Photoelectric encoder

Control method: PLC

Operation method: Buttons + touch screen





Beenew is dedicated to giving customers the best possible environmental protection solutions, and also sustains positive working relationships with reputable environmental protection organizations and businesses.  Stricter company regulations and standards will force us to take on more responsibility and adhere to higher standards of behavior.  We are committed to you the best possible customer service.  Our staff is very flexible and capable of responding to shifting consumer demands and market situations.  We are able to satisfy the various needs of our clients by utilizing the excellent conditions and significant benefits of mass production.  The circular economy is an advanced economic concept that aims to increase labor employment, reduce environmental damage, increase economic efficiency, and use less resources.





All of our employees will keep up their hard work, and we will guarantee our clients that we will provide them with high-quality standing seam roof panel machines, customized standing seam roll forming machines, a standing seam roll former factory, and financial advantages along with dependable, safe quality and competitive pricing. One of the top producers and distributors of portable standing seam roofing machines is Xiamen Beenew Machinery. For more than ten years, our factory has focused on designing, developing, and producing high-quality, customized portable standing seam roofing machines for sale that are built in China. Please test our excellent service.
