C50-160 Solar Bracket Roll Forming Machine
Beenew’s solar bracket roll forming machine is to form 1.5mm-3.0mm strut channels with required types. The machine is able to produce C shape web size from 50mm t0 160mm, also available for high yield strength of 550MPa Galvanized/ galvanized aluminum-magnesium.
Description

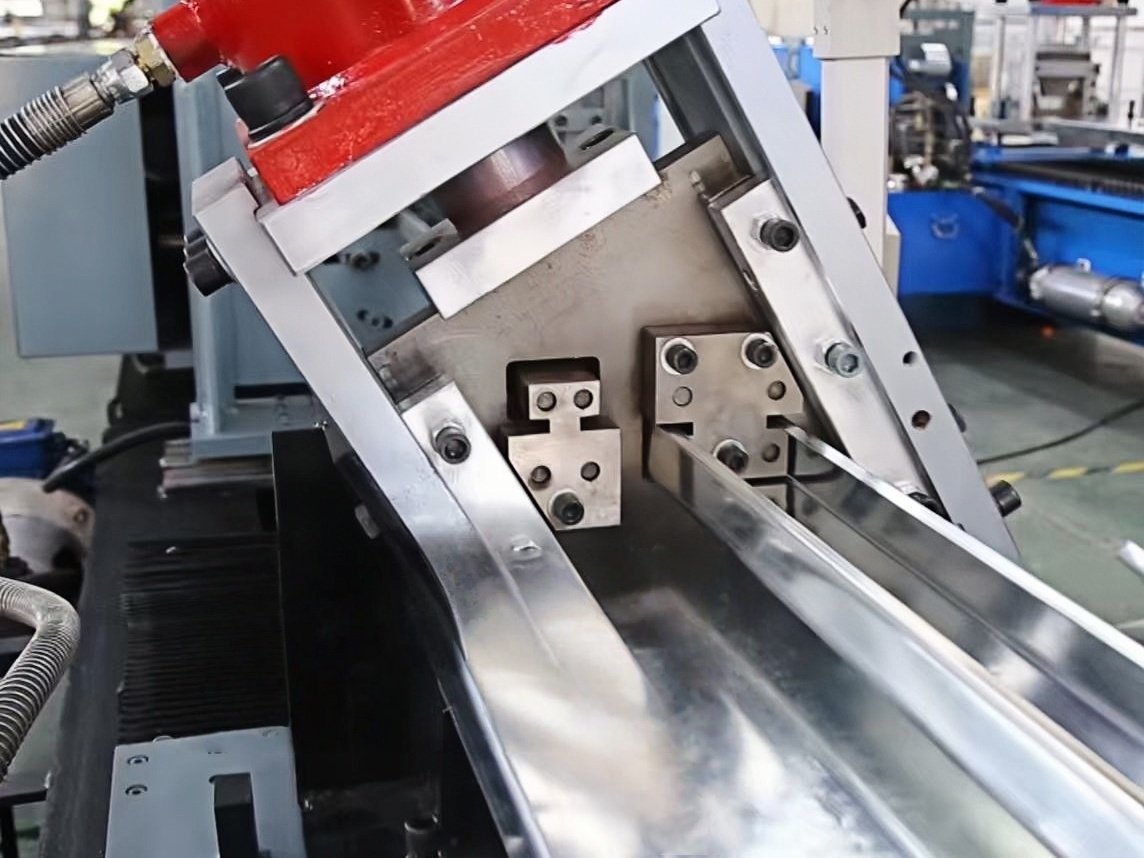

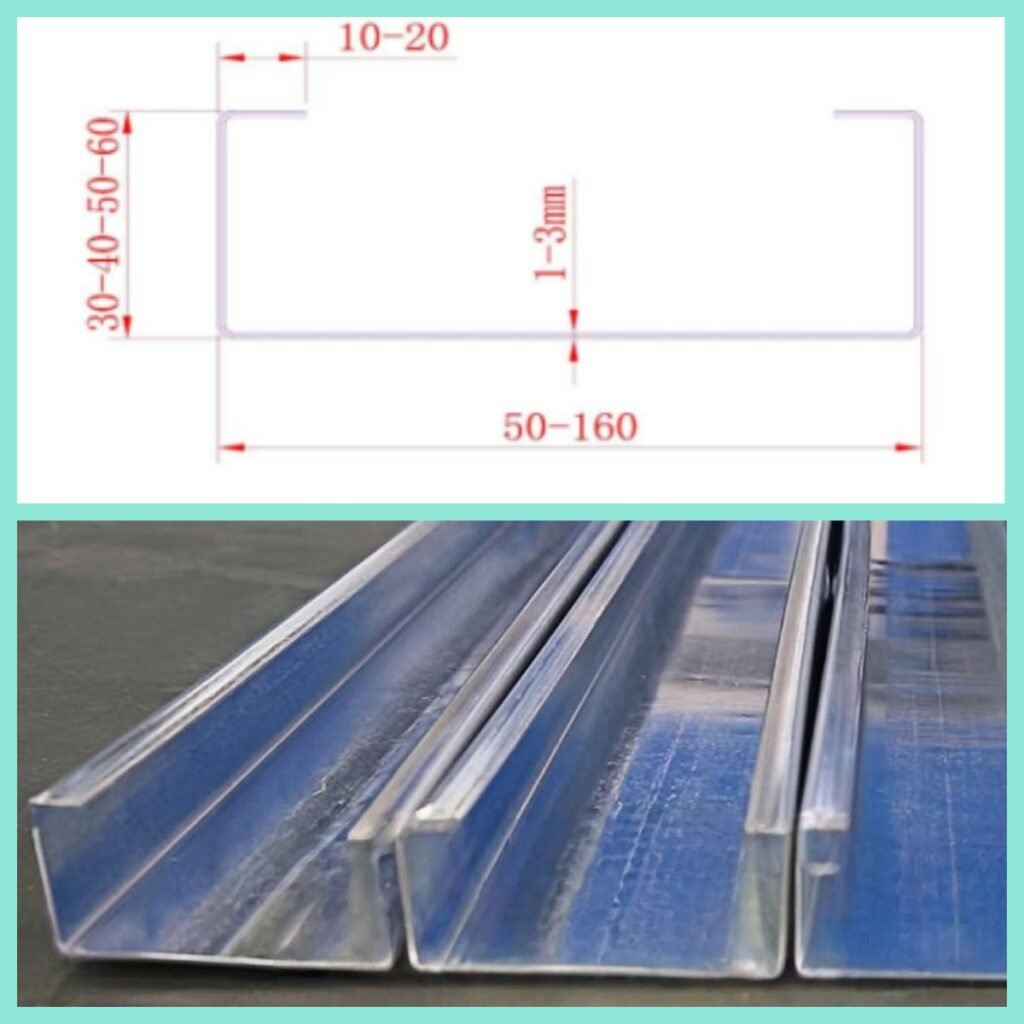

Beenew Roll Forming Machine’s PV support bracket is a cold roll-formed steel channel used for solar mounting support and structural structures. Metal coil strips are used to produce the channel, which is then rolled into an open channel section with lips for extra stiffness using an automatic size interchangeable solar bracket roll forming machine.
Beenew’s solar bracket roll forming machine is to form 1.5mm-3.0mm strut channels with required types. The machine is able to produce C shape web size from 50mm t0 160mm, also available for high yield strength of 550MPa Galvanized/ galvanized aluminum-magnesium.
Suitable Material
Galvanized/galvanized aluminum-magnesium
Yield strength: ≤550MPa
Material thickness: 1.5-3mm
Material width: 150-320mm
Machine Parameter Details

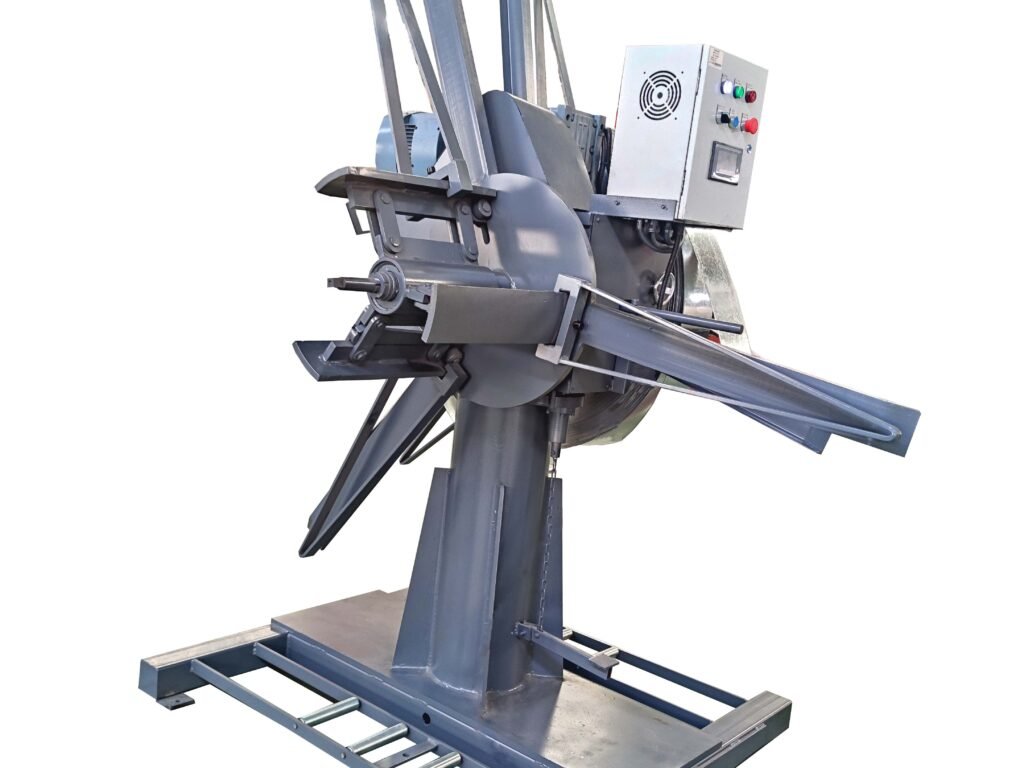

4 Tons Hydraulic Uncoiler with Double Head
Automatic main spindle start-stop;
Manually regulate the steel coil’s inner hole’s contraction;
3KW of main motor power;
350mm is the discharge width.
Range of jaws: 450-530;
Load rating: < 4Tx2 rolls.

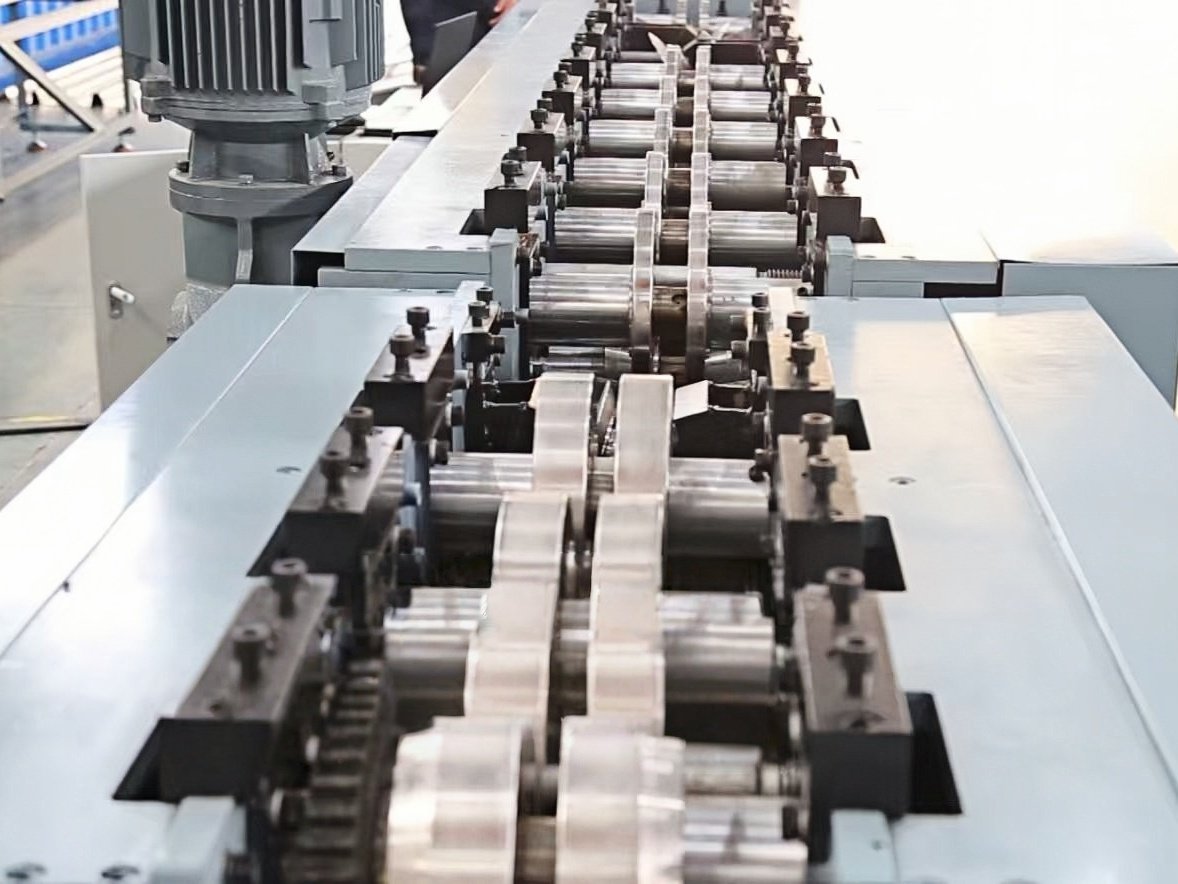

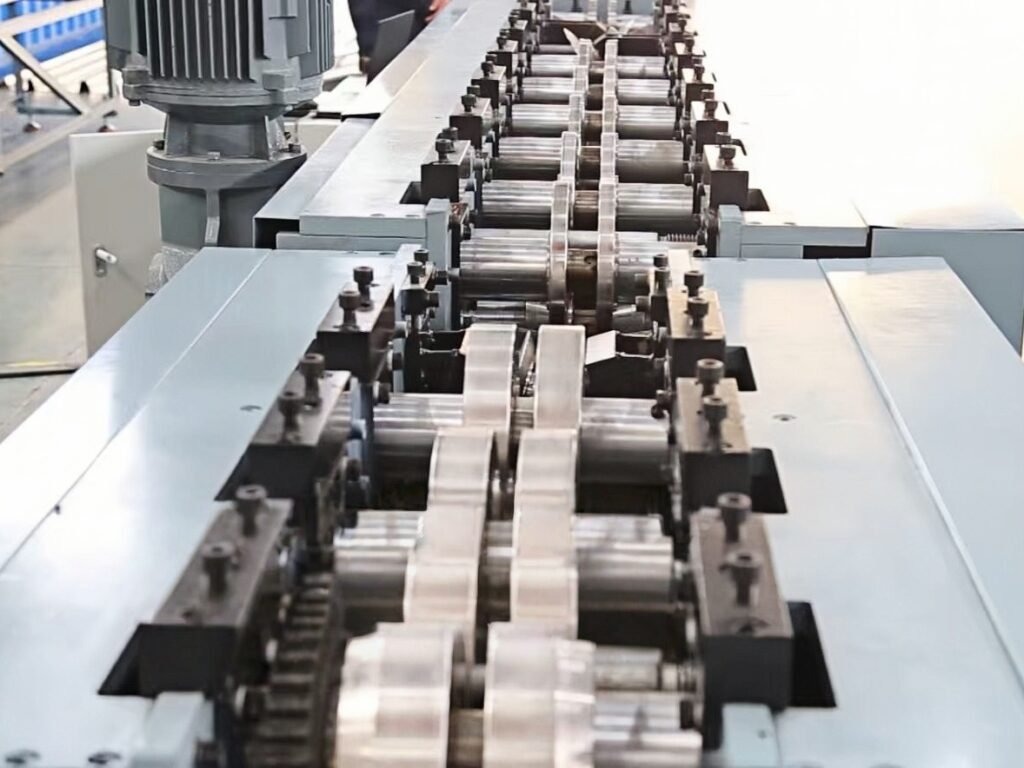

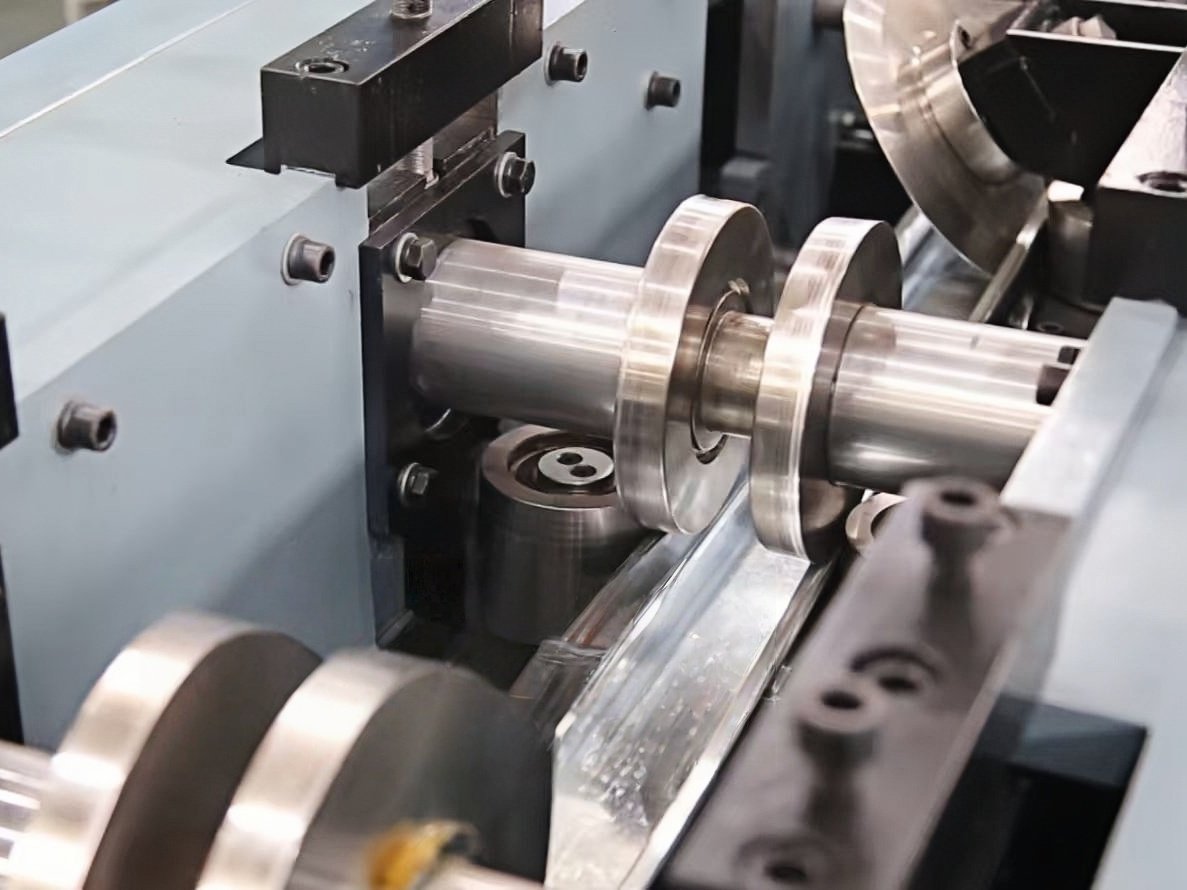

Roll Forming Machine
Main motor: 22kw;
Type-changing motor: 0.37kw+0.55kw+1.1kw;
Servo motor for cutting: 3kw;
Hydraulic motor: 7.5kw;
Automatic control of processing quantity and cutting length;
Length tolerance: ≤±1 mm
Rolling speed: 5-45m/min;
Forming: 13 steps + shaping;
Anti-scratch feeding and oiling device:
Forming rollers material: Cr12 mold steel, heat-treated to hardness 58-60 after CNC machining;
Shaft material: 40cr tempering treatment 280-320HB, after CNC finishing;
The frame is made of 400# H-beam + steel plate welding;;
Shear mode: flying cut, no waste;
Cutting blade material: Cr12Mov;

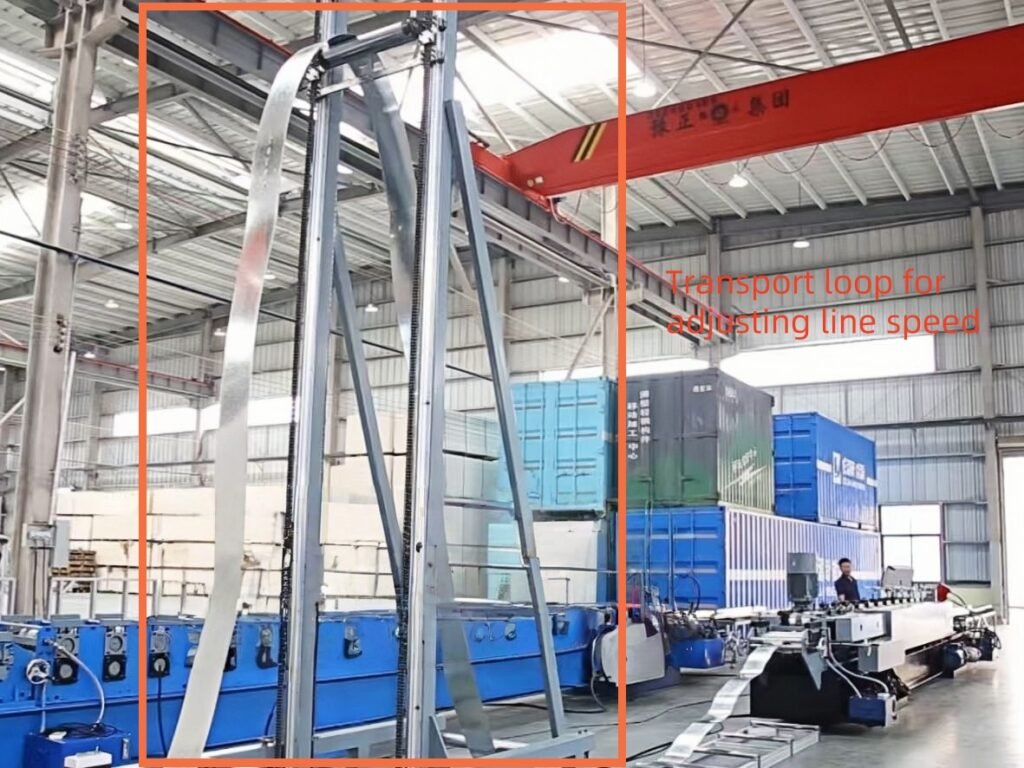

Transport Loop for Adjusting solar bracket roll forming machine line speed

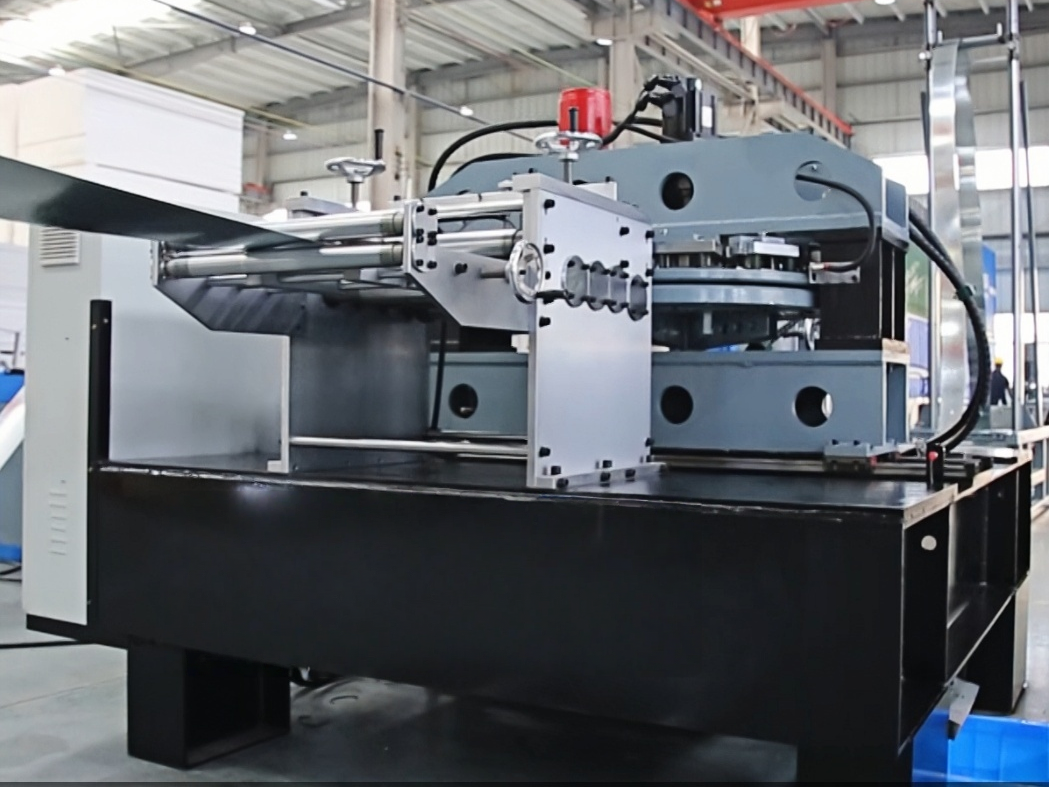

Rotary Punching Machine
Parameters of hole type

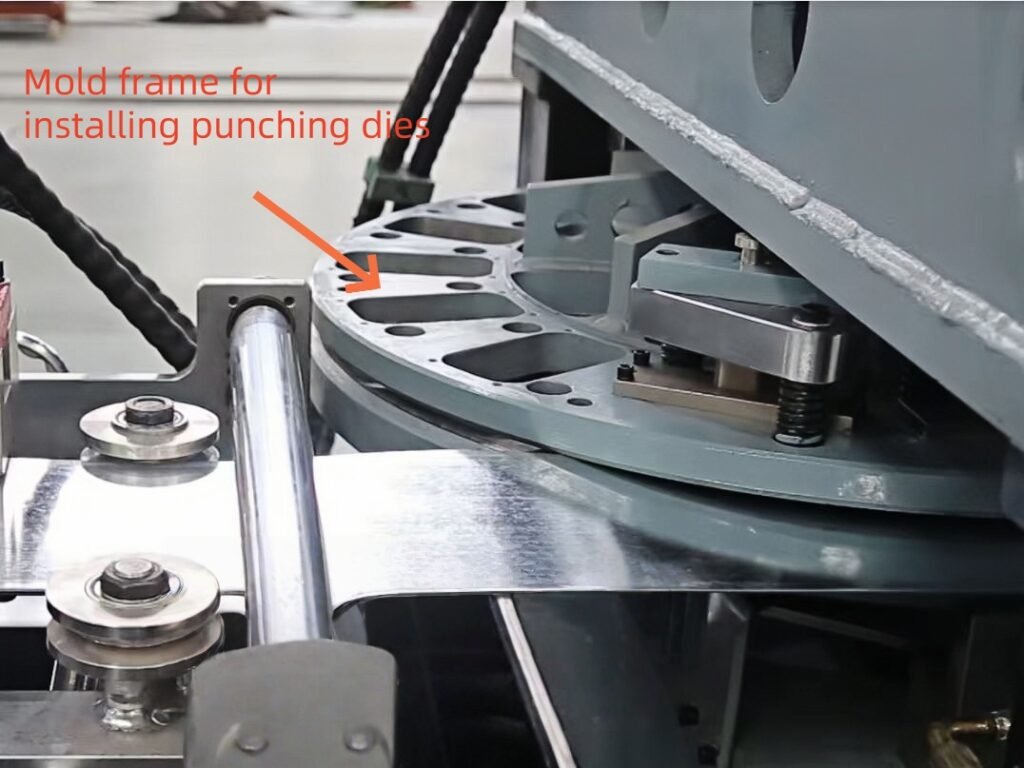

Total 12 sets of punching ides, and all the punching dies and grouping of punching mold can be customized according to customer’s requirements.
Key Parameters
Control system: self-developed turret punch control system
Automatic control of processing quantity and punching position;
Punching position tolerance: ≤ ± 1 mm
Clamping host power: 7.5kw (servo motor);
Rotary motor: 2kw (servo motor);
Turret moving motor: 7.5kw (servo motor)
Hydraulic motor power: 11kw;
Accumulator model: 16L;
Clamping speed: 100m/min;
Combined punching speed 20-60m/min;
12 sets of mold turret: 1 set;
Hydraulic cylinder: 3 groups;
15)Mold material: Cr12Mov;
So, this is the fast speed roll forming machine line for solar bracket used, it is better than hydraulic stop punching, well improves daily output. There are 12 sets of punching dies for standby, any installing hole for solar support need, choose it on control system and start to produce again, no need to cost more for changing punching dies again. Contact to us soon for more details of this machine now!
