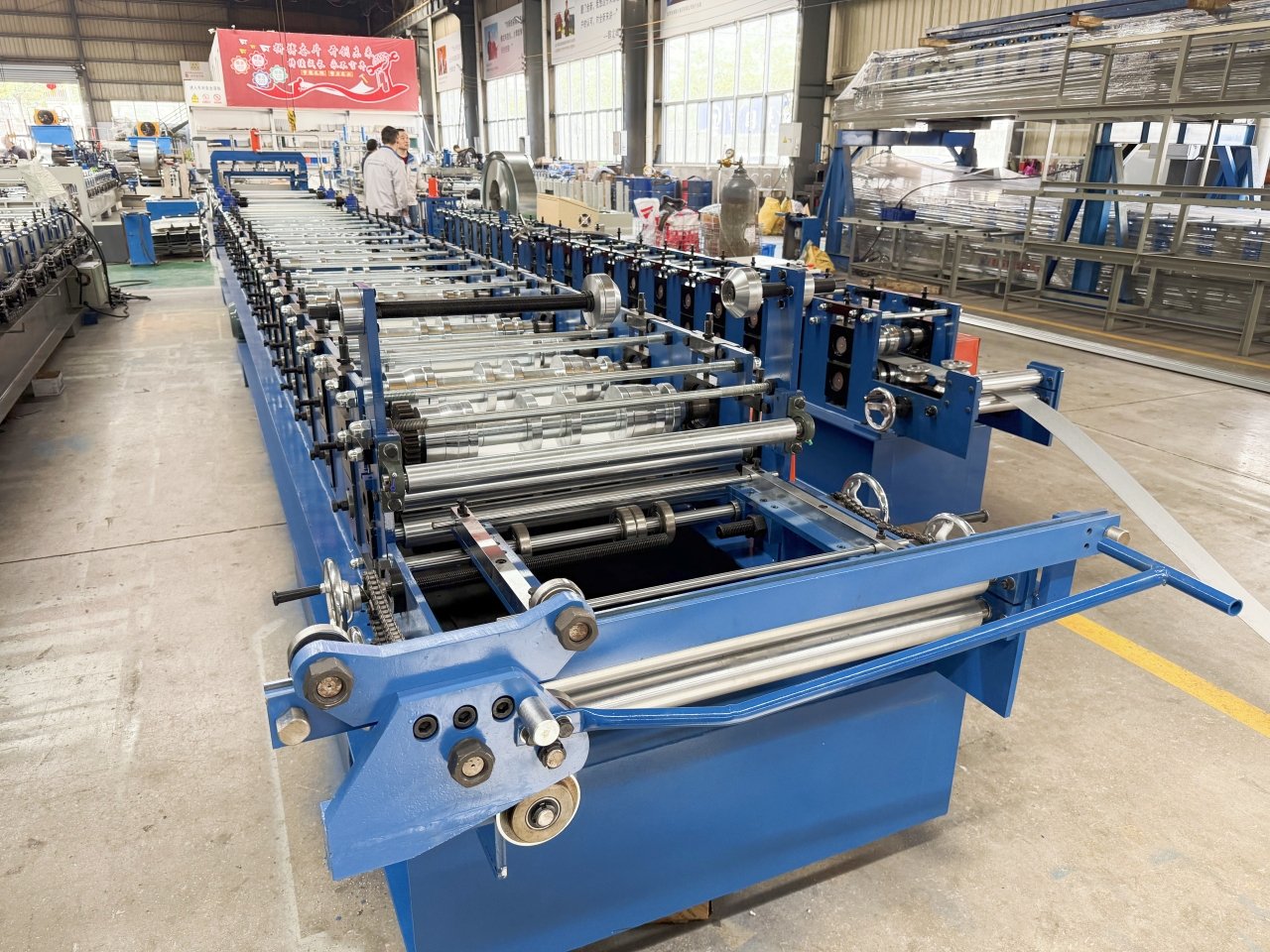

Snap Lock Metal Roofing Machine



Snap Lock metal roofing machine is special design steel metal roofing system, compare to screw nuts installation metal roof, snap lock roofing owns better waterproof function and more beautiful appearance, snap lock panel machine is popular working in job site both for saving transportation cost and easy shape deformation.

Xiamen Beenew Machinery has provided many different designs of snap lock metal roofing machines for worldwide market. As one type of portable standing seam roll forming machines, it condenses good roll forming technologies into one small size roll forming machine, it is portable for processing at on metal roofing engineer job sites, so our snap lock roof panel machine is the best choice for Steel structure factory buildings, prefabricated houses, villa roofs, and modern farms.



What are the Advantages of Snap Lock Metal Roof?

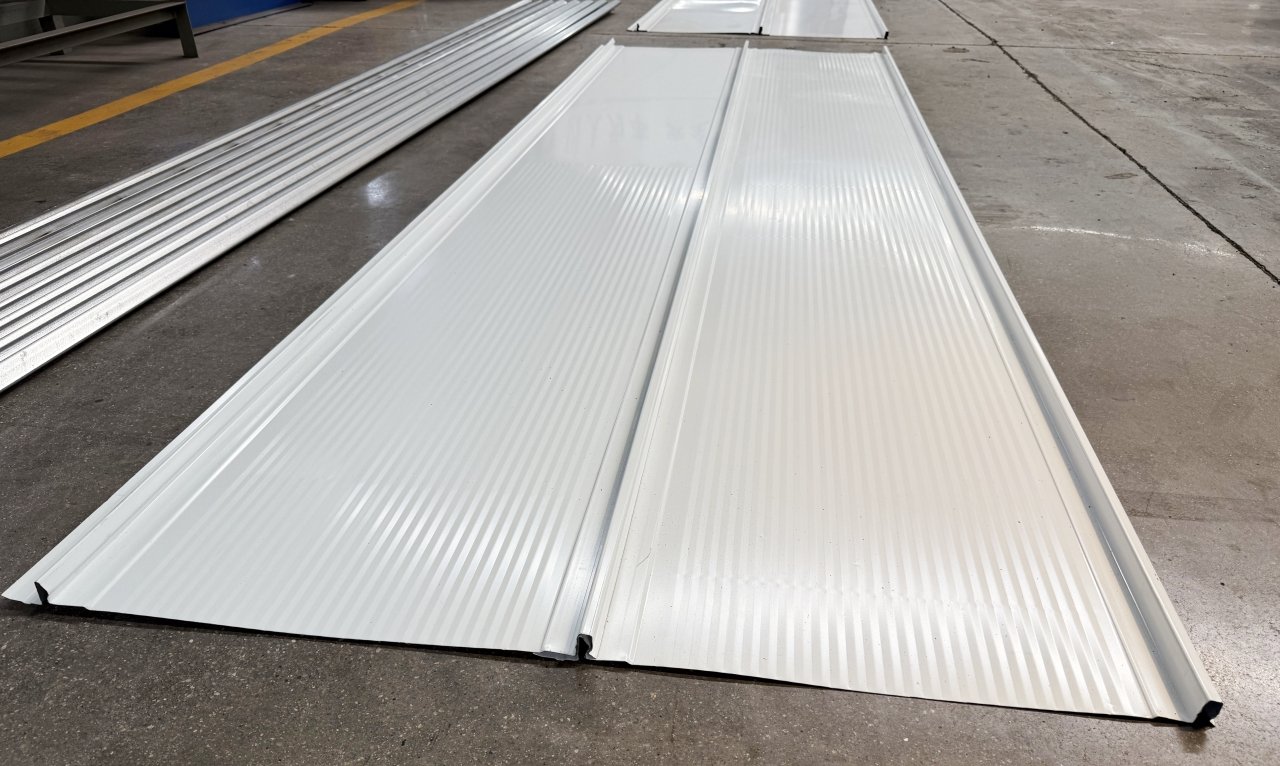

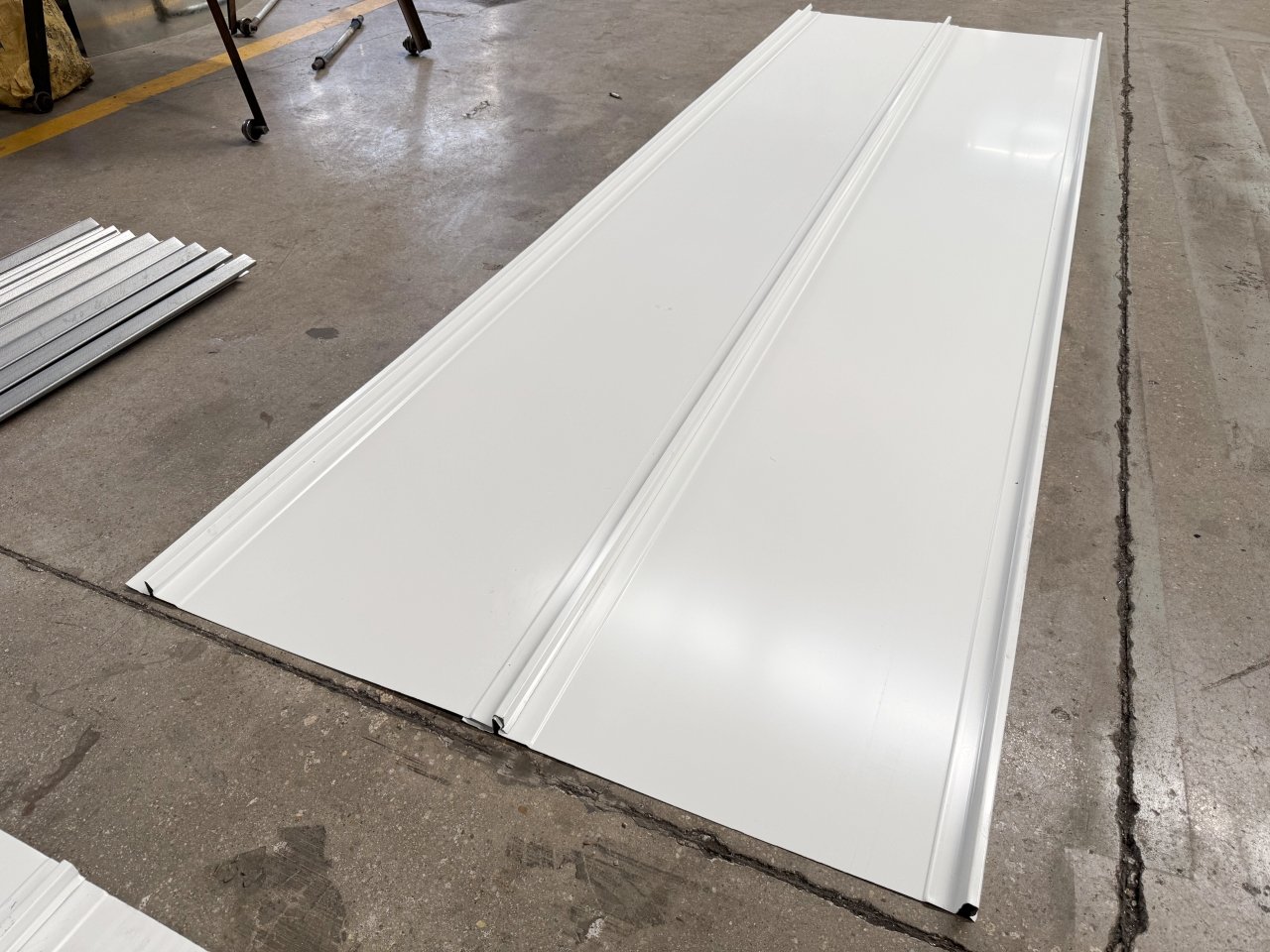

This snap lock metal roofing machine is specifically designed for concealed-lock roof panels. The metal roof panels have advantages as below:



Zero-penetration waterproofing: The special snap-lock fixing method ensures that there are no exposed screws on the metal roof panel surface. This forbidden water leakages caused by screw holes thermal expansion or rubber gaskets aging well.



Freely expandable and contractible to resist metal panel deformation: The unique sliding snap-fit design allows the roof panels to expand and contract freely in the longitudinal direction when the temperature changes, effectively preventing the panel surface from twisting or cracking due to stress concentration, thus extending the roof’s lifespan.





Highly portable, allowing the factory to be moved to steel construction site

The integrated design makes equipment small and lightweight; so the entire snap lock metal roofing machine can be easily transported within a 20GP or 40GP container. Upon arrival at the project site, unloading and commissioning can be completed by one worker only, eliminating the need for forklifts or other lifting machinery. Production can begin immediately after plugging in power.



How is the Snap Lock Metal Roofing Machine Working?

Our Beenew’s snap lock metal roofing machine production line equips with automated PLC control system, operator can adjust production metal roofing length and quantity according to construction schedule. This makes it particularly suitable for remote areas or urgent repair projects with tight deadlines.



Normally, one set snap lock metal roofing machine is suitable for 0.3-0.7mm thickness pre-painted steel coil, and also can roll forms Aluminum-magnesium-manganese coil, stainless steel coil. If user needs, the snap lock panel machine can be designed as simple size changeable machine for different feeding width snap lock roofings by easy operation, such as YX25-210, YX25-330, YX25-430 or YX25-435. Metal roofing length can be stepless adjusted according to project needs, it can be set on touch screen freely.



Strong Mechanical Structure and High Quality Electric Parts

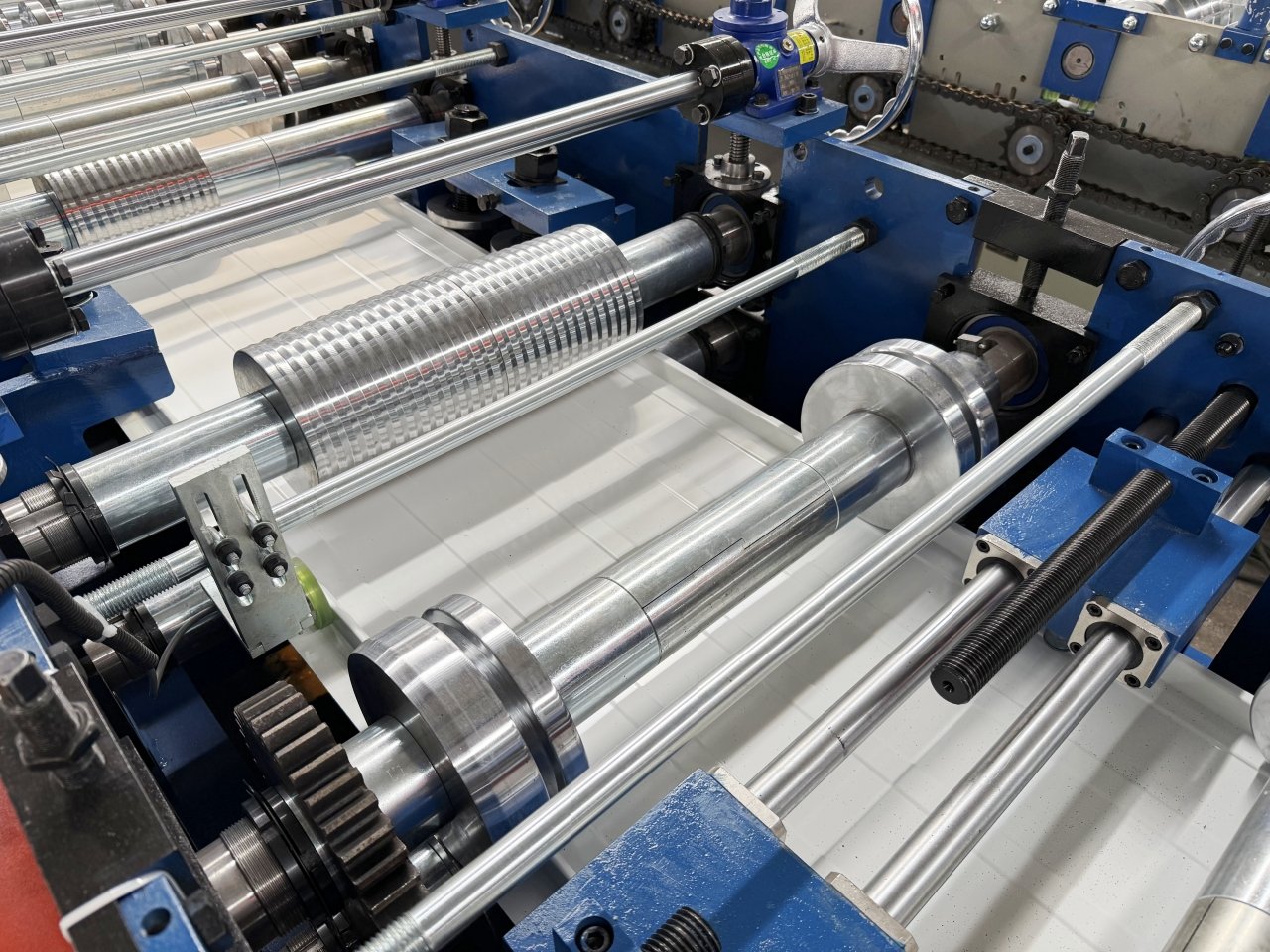

Forming Shafts: All shafts are made of 45# round steel with high frequency quenching and tempering treatment and hard chrome plating on the surface. It has high hardness and strong wear resistance, ensuring that the plate surface is flat and without vibration.



Machine Frame: Choose thick-walled national standard square tubing, which is welded as a whole and then subjected to tempering and aging treatment to eliminate internal stress, ensuring that the equipment will not deform during long-term high-intensity use.



Driving System: Adopt famous brand driving motor such as Orui, Simenz, Guomao or Dongyuan, keep whole snap lock metal roofing machine running stably.



Control System: Equipped with an industrial-grade PLC programmable controller and a high-precision encoder, it achieves precise cutting error control within ±1mm. It features a portable handheld case or touchscreen with a simple and easy-to-understand user interface.

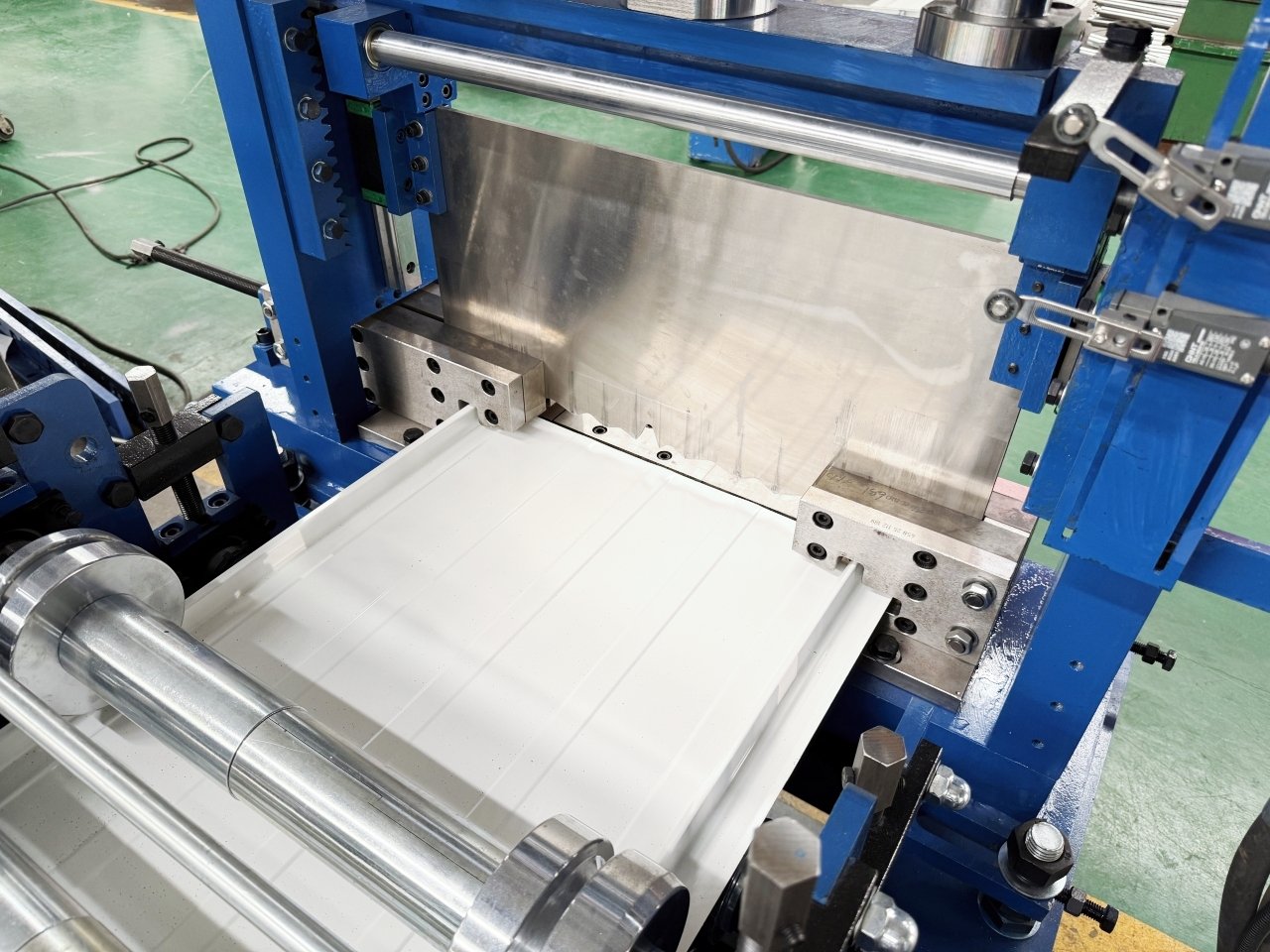

Cutting Mold: Made of Cr12MoV alloy steel, it undergoes vacuum heat treatment, resulting in a clean, burr-free cut surface and a service life of tens of thousands of cycles.



Machine Key Parameters

Material Thickness: 0.3-0.8mm

Forming Station: 12-18 stations (depends on final profile designs)

Forming Speed: 20-25m/min (can be customized according to user’s requirements)

Main Motor: 5.5-7.5KW

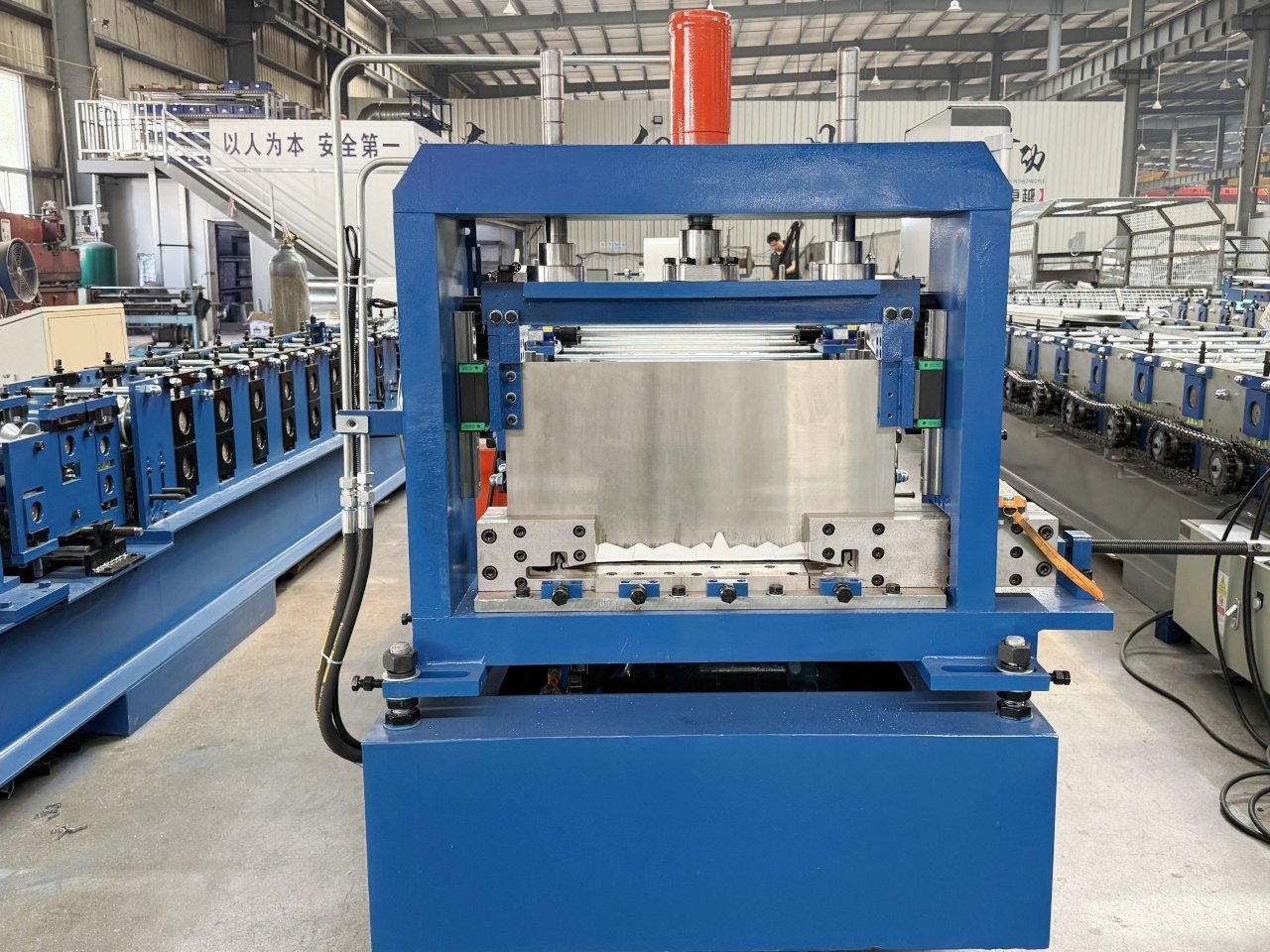

Cutting Type: Hydraulic Cutting Off

Control System: PLC





No matter metal roofing processing factory or metal roofing engineer teams, Xiamen Beenew Machinery focus on making metal roofing roll forming machines more easier operation, choose our snap lock metal roofing machines now, it is not only one set roll forming machine. But also our service team behind you to improve your local market more fast! Get in touch with us to ask metal roofing machine solution.
