Shutter Door Roll Forming Machine
The Beenew Roller Shutter Door Roll Forming Machine is widely used for producing roller shutter doors in customized dimensions and designs. Its advantages include high production accuracy and efficiency as well as reliable performance.
Description
Shutter Door Roll Forming Machine
The de-coiler, roll forming machine, cut-off device, run-out table, and electrical control panel make up the majority of the Door Shutter Roll Forming Machine. The Beenew Roller Shutter Door Roll Forming Machine is widely used for producing roller shutter doors in customized dimensions and designs. Its advantages include high production accuracy and efficiency as well as reliable performance.
Rolling Door Shutter Roll Forming Machine Brief Parameters:
Material: G.I. Coil; 15 Groups of Rollers
Power Source: Customized 380V, 50HZ

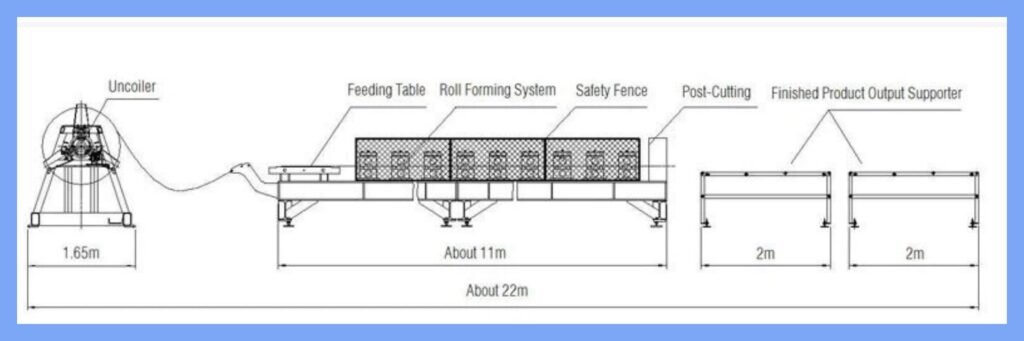

Production Process for Rolling Shutter Roll Forming Machines:
Composition of a Roller Shutter Door Manufacturing Machine:
| No. | Name | Qty |
| 1 | De-coiler | 1 set |
| 2 | Material feeder & leader | 1 set |
| 3 | Roll forming machine | 1 set |

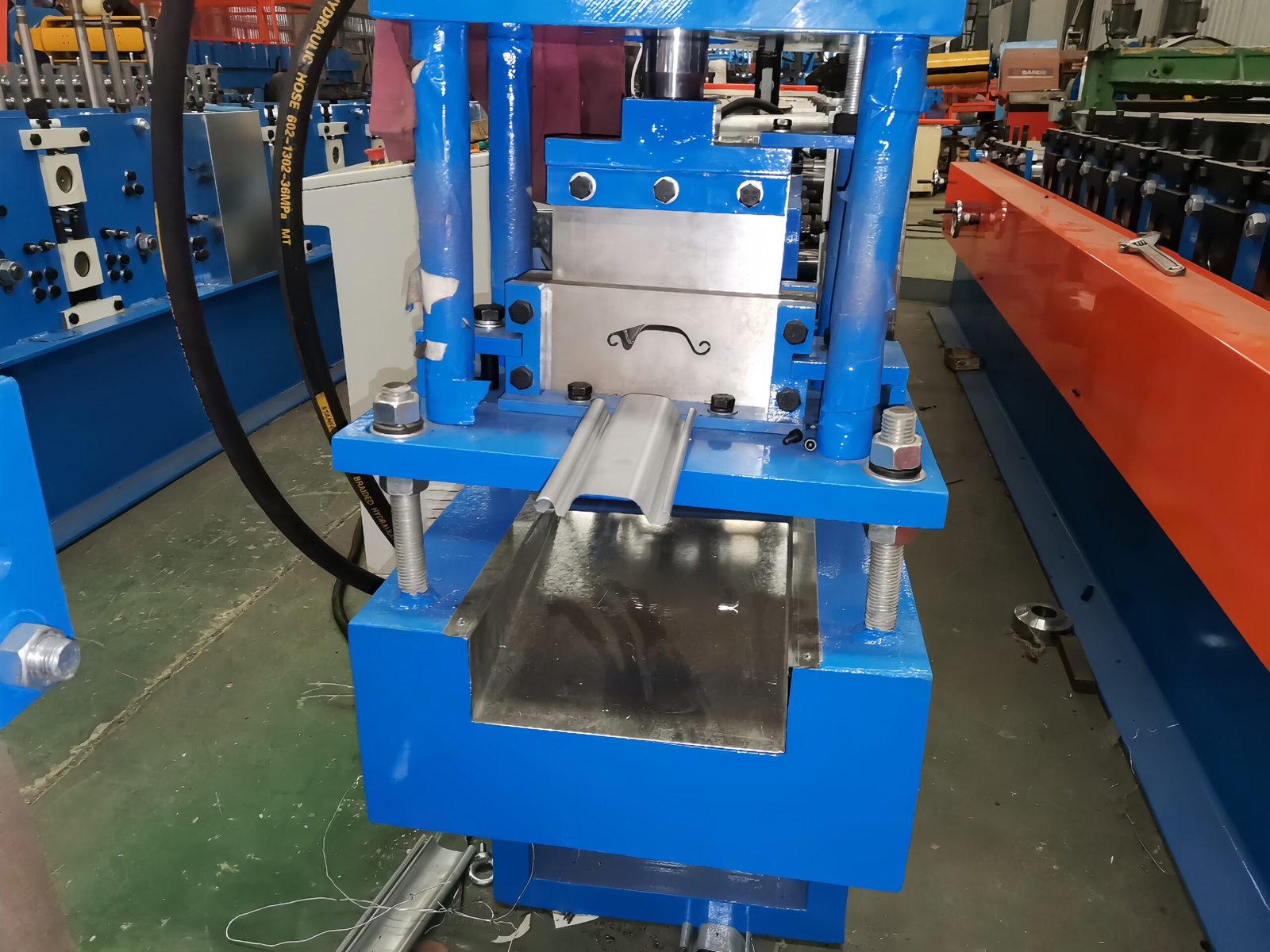

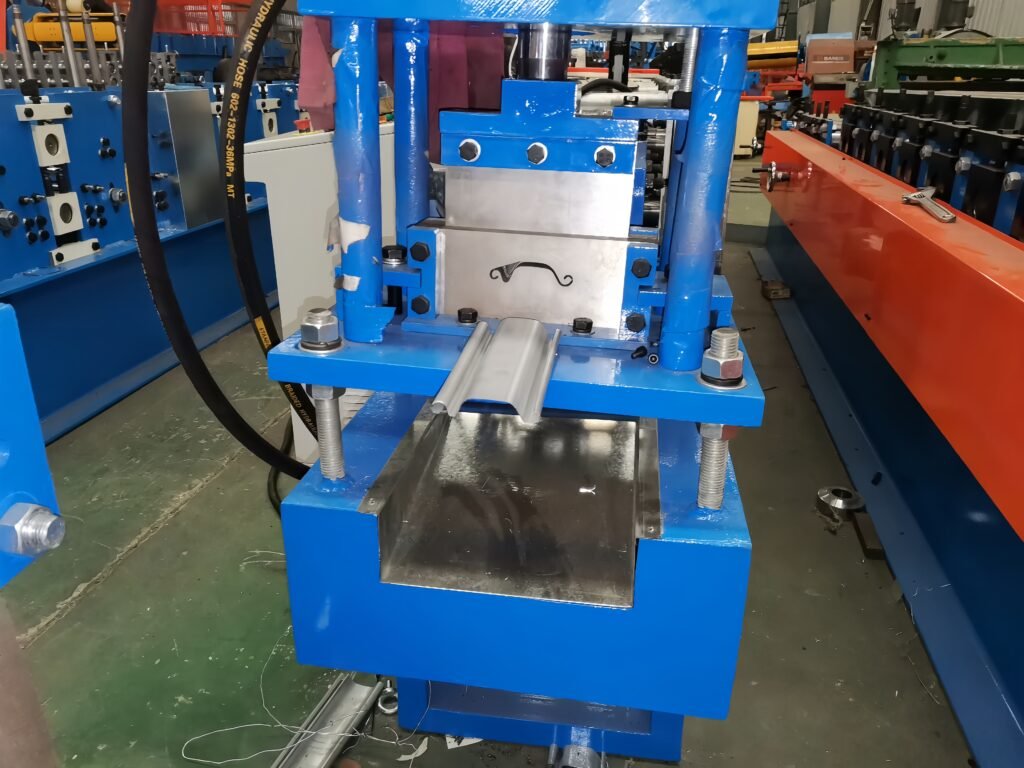

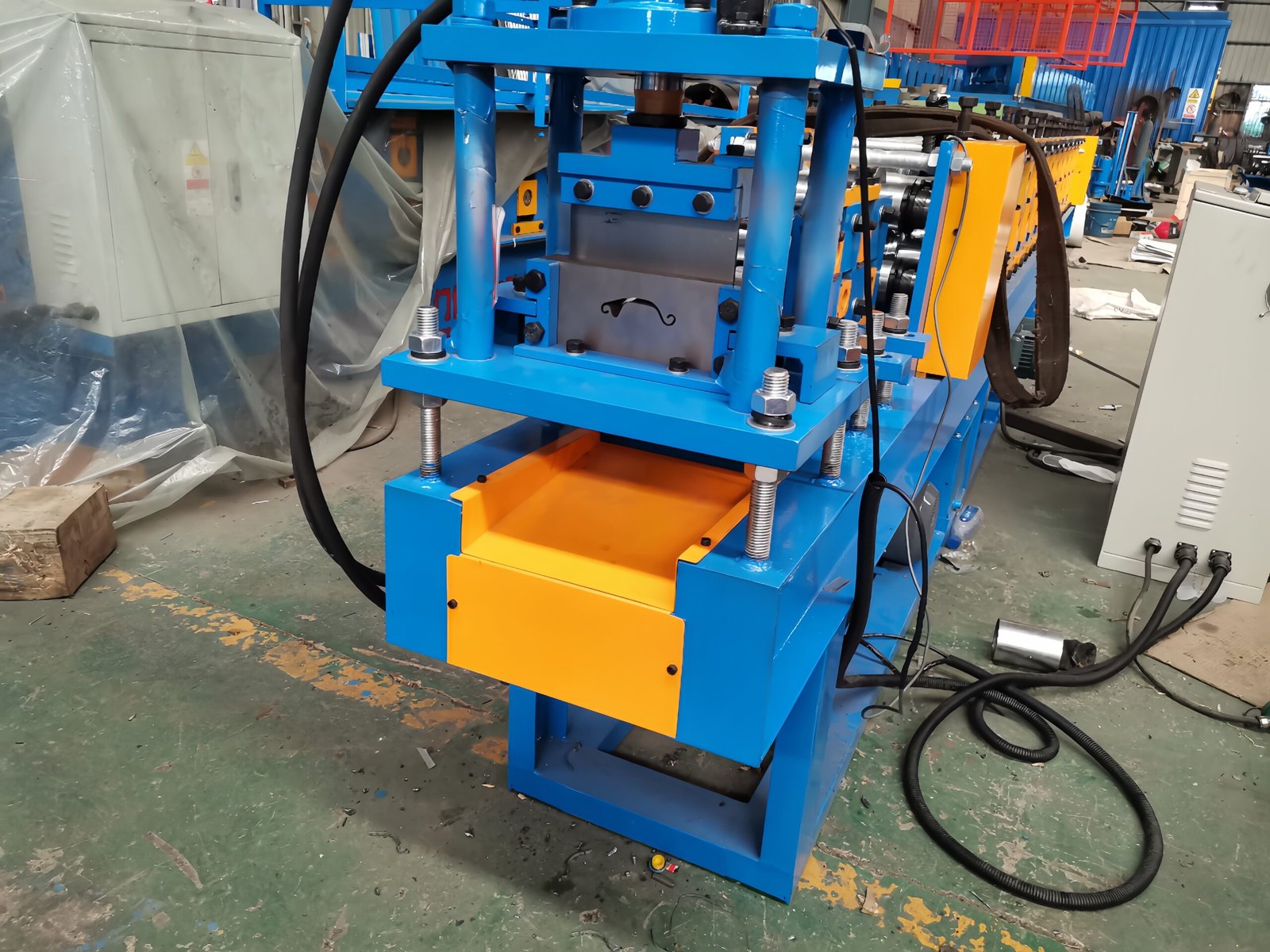

| 4 | Hydraulic cutting off device | 1 set |
| 5 | Product run out table | 2 pcs |
| PLC control Unit | 1 set |

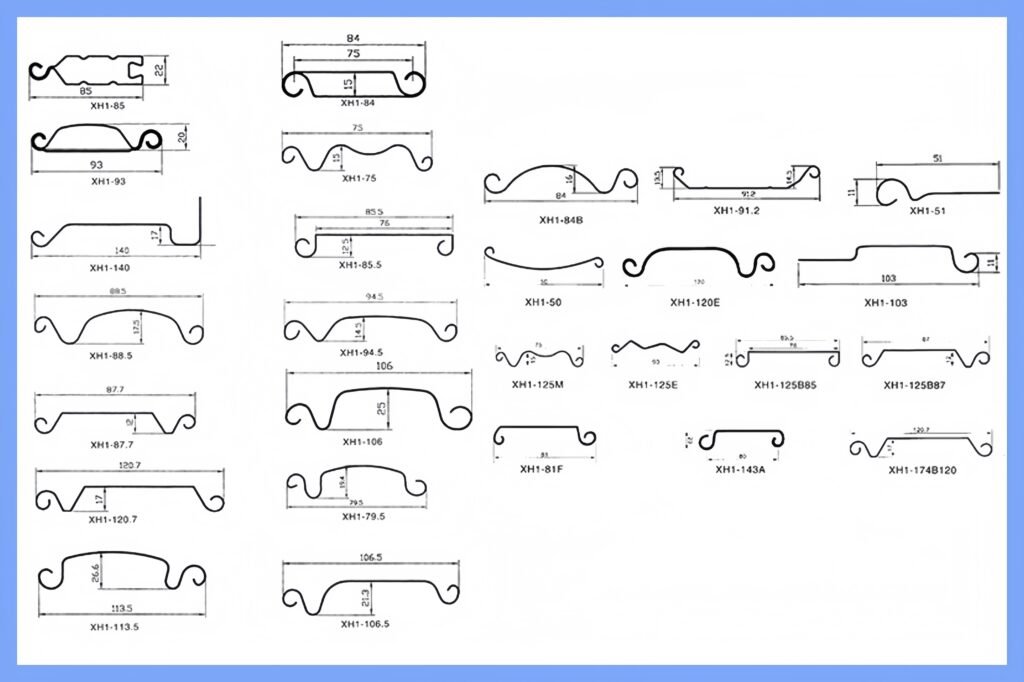

Drawings of Door Shutter Profiles:
We could manufacture the metal shutter door equipment to meet the needs of your goods.
Industrial shutter door making machine, commercial rolling door forming machine, garage door roll forming machine, fire-rated shutter making machine, curtain system forming machine, and heavy-duty roller shutter door machines are all available.

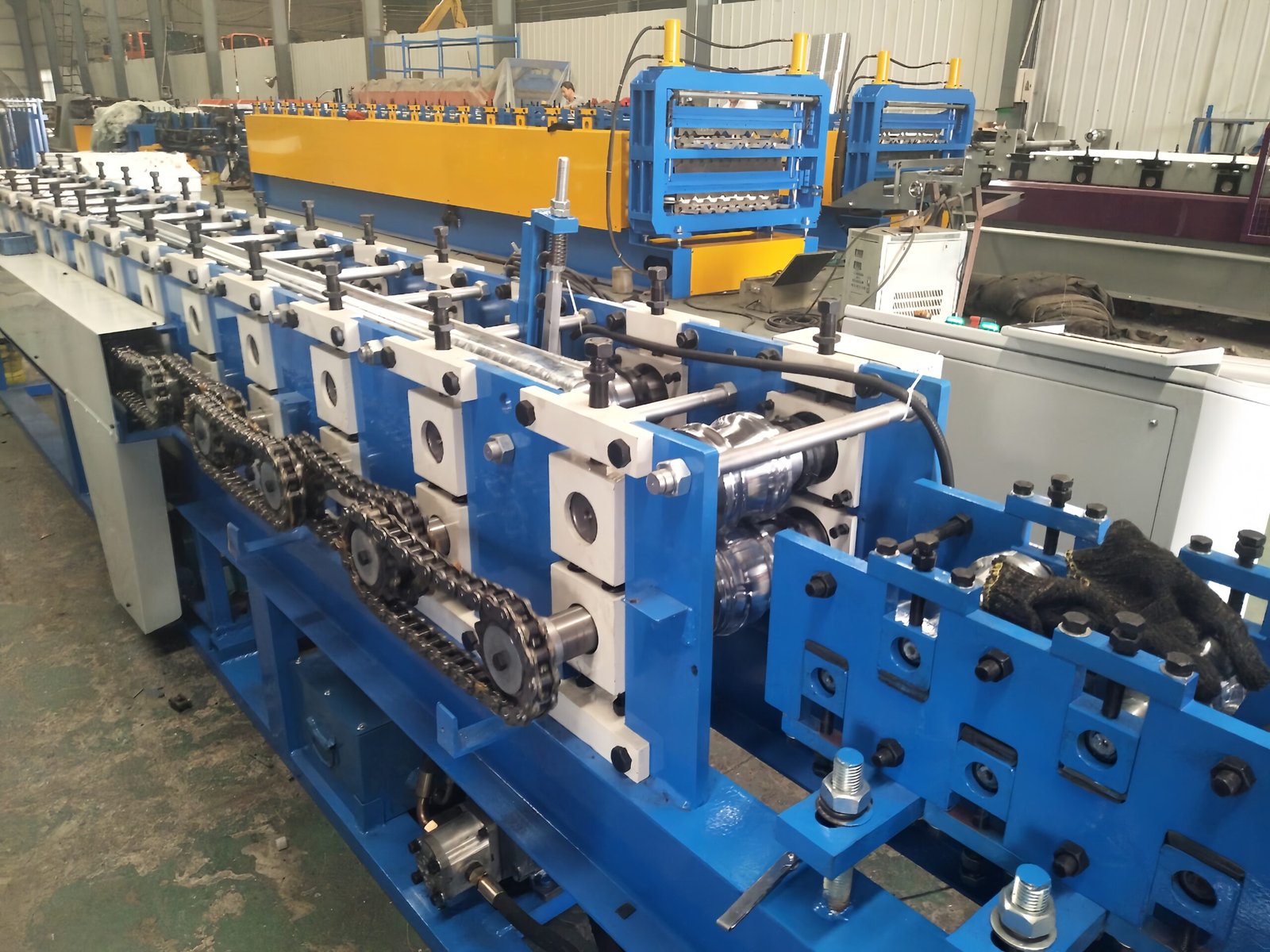

The center and upper portions of the frame are where the forming roller set is installed. The drive motor and the gearbox are mounted in the center and bottom part of the frame, the output end of the drive motor is connected with the gear box, and the output end of the gear box is connected with the forming roller set through the sprocket set.
