Roof Tile Roll Forming Machine

Description

Roof Tile Roll Forming Machine



1. What does a roof tile roll forming machine do?

Simply said, this roof tile roll forming machine is a “metal tile processing plant”! You put in rolls of metal materials like color steel plates or galvanized steel, then the tile roof roll forming machine’s rollers and molds roll them step-by-step into the glazed tiles shapes—different customized roof tile making machines can handle different styles from antique-style barrel tiles and flat tiles like those in ancient palaces to European-style roof tiles.

The steel glazed tiles much lighter than traditional ceramic glazed tiles, and they are also shatter-resistant, waterproof, and have vibrant colors. Therefore, antique-style buildings (such as temples and garden pavilions), villa roofs, and even some European-style houses abroad all love to use this type of metal glazed tile—it’s beautiful and hassle-free.







2. Common Styles and Names

The most popular are the 828 roof tile roof roll forming machines and the 820 shape tile sheet making machines, such as: fully automatic 828 glazed tile forming machine, Beenew 820 glazed tile forming machine and Bamboo-shaped tile roll forming machines are also a mainstream style, offering high flexibility.

Normally, we directly call it a “roof tile roll forming machine,” or simply a “steel tile forming machine” or “steel sheet forming machine”. Some call it a “metal roofing tile roll forming machine,” while others use the brand/model name; for example, the Beenew model is simply called by brand name + type—simple and straightforward.

In summary, a roof tile roll forming machine is essentially a “roof aesthetics maker.” While domestic and international models may differ, the core function is the same: to transform metal sheets into attractive and durable glazed tile roofs.



3. Machine Key Parameters

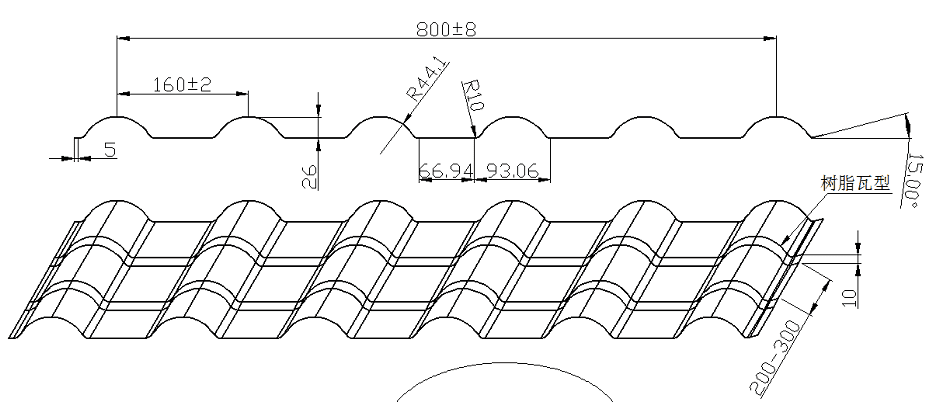

Profile Design Drawing

Feeding width: 1000mm

Material thickness: 0.3-0.6mm

Galvanized steel yield strength: 235-355MPa

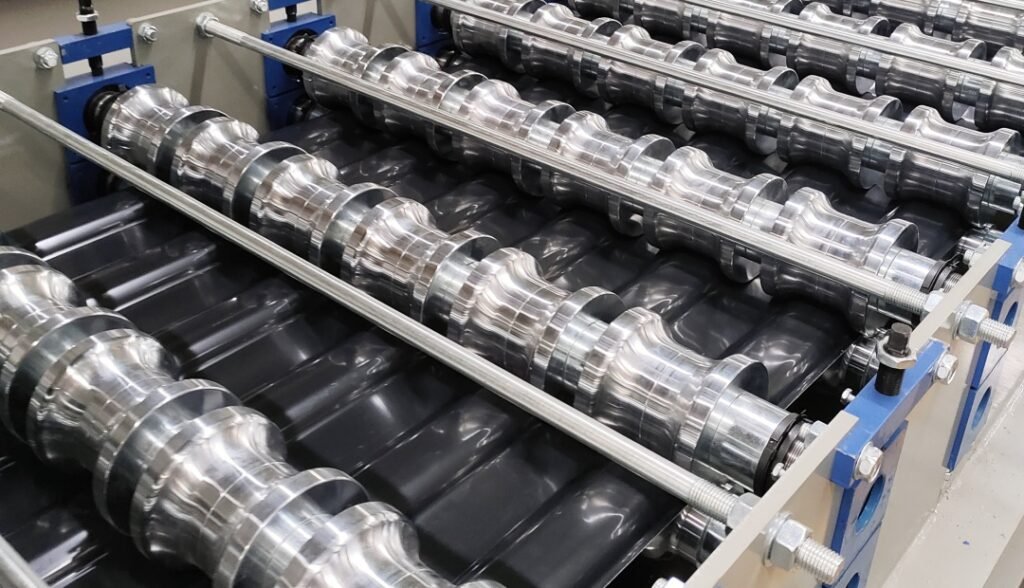

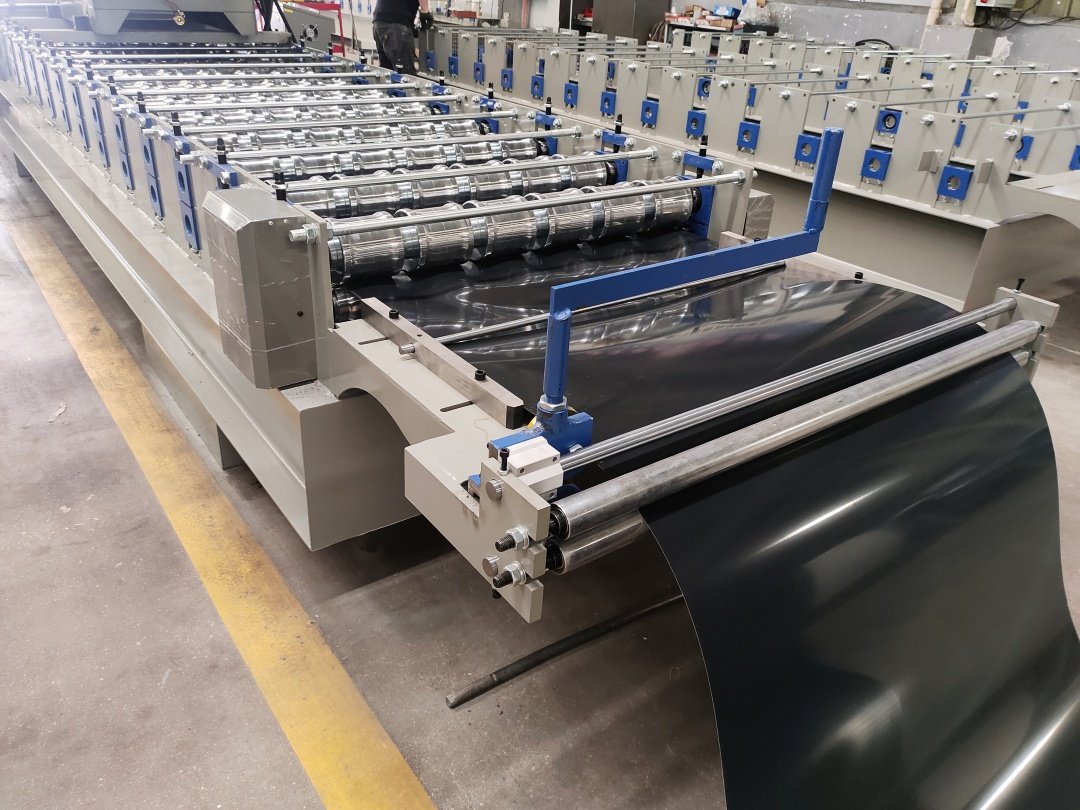

Main Roof Tile Roll Forming Machine

Body frame constructed by welding H350 grade steel,

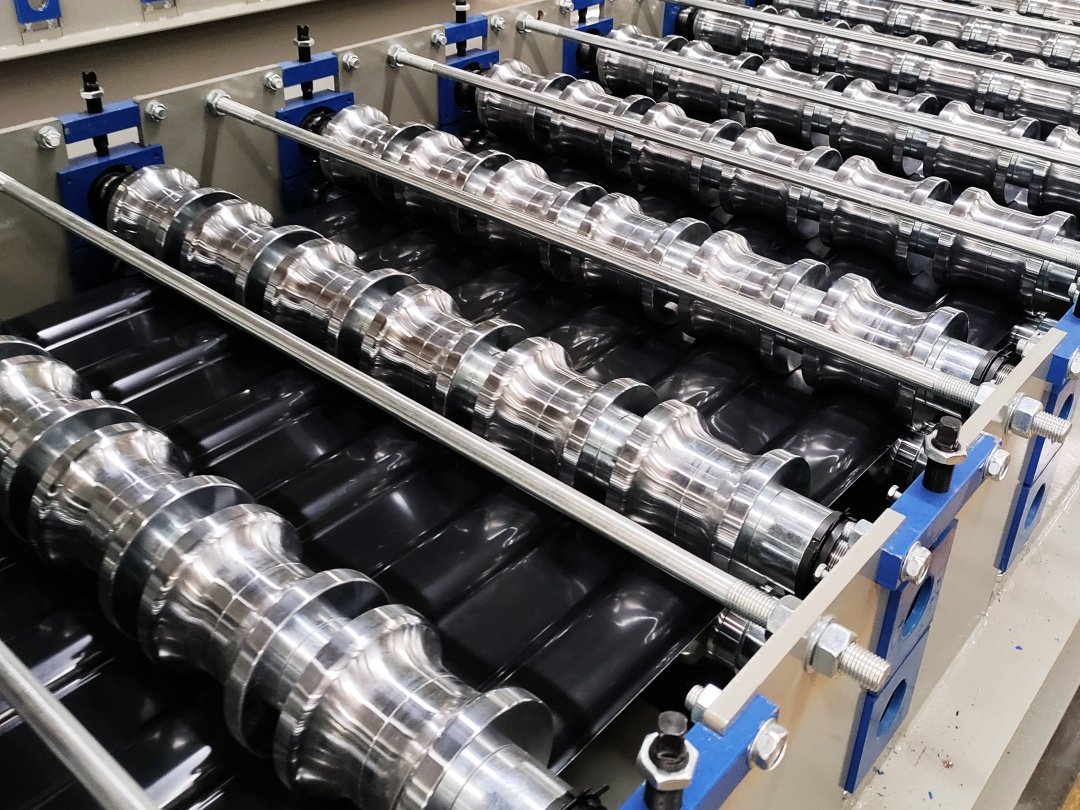

Rollers made from 45# steel using CNC lathes, heat treatment, and hard Chrome coating;

precision-machined shafts with a diameter of 75/95 mm
Gear/sprocket transmission, motor driving

Approximately 18 steps to form
Size of chain: 1/1.2 inch
7.5KW main motor with frequency speed control
Forming speed: about 3–5 m/min
All the screw bolts are grade 8.8 to guarantee that the machine structure is securely fixed and has a long lifespan.

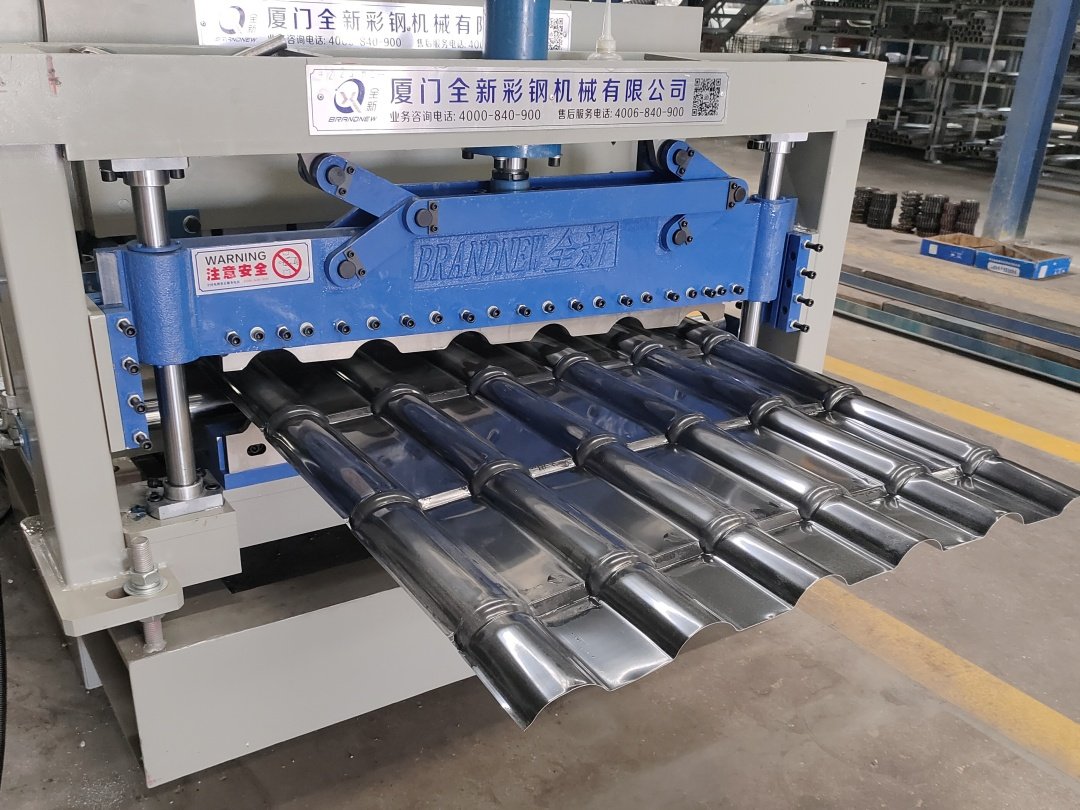

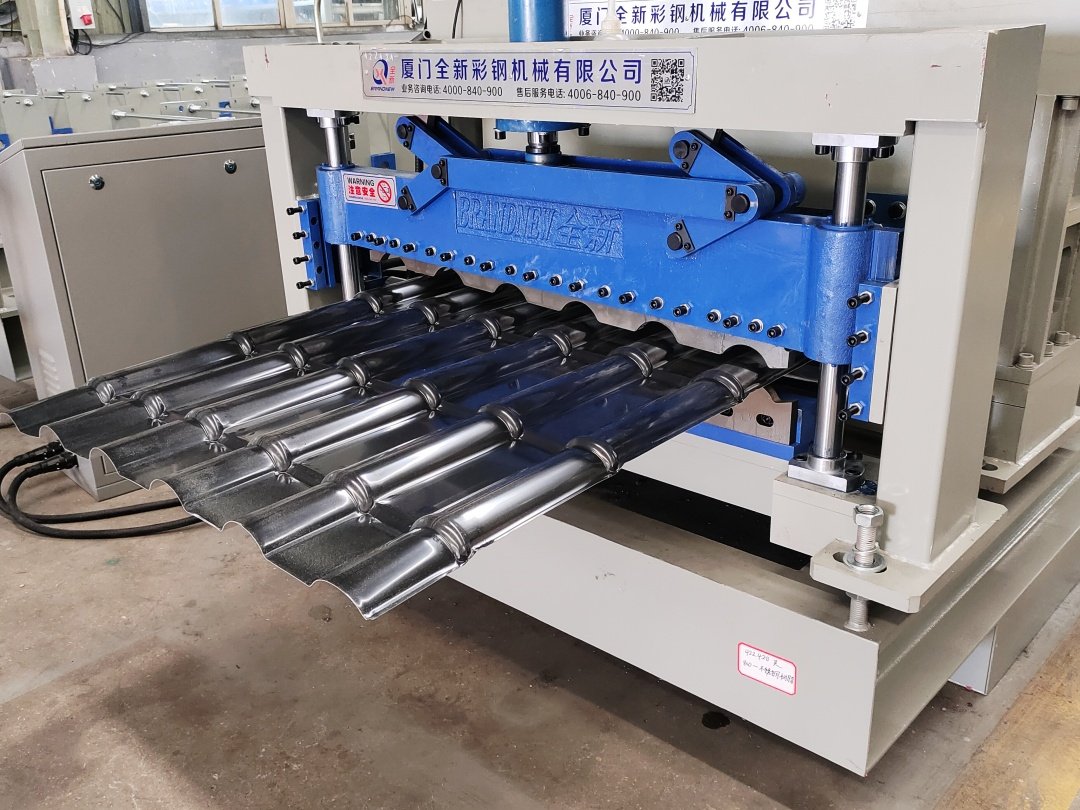

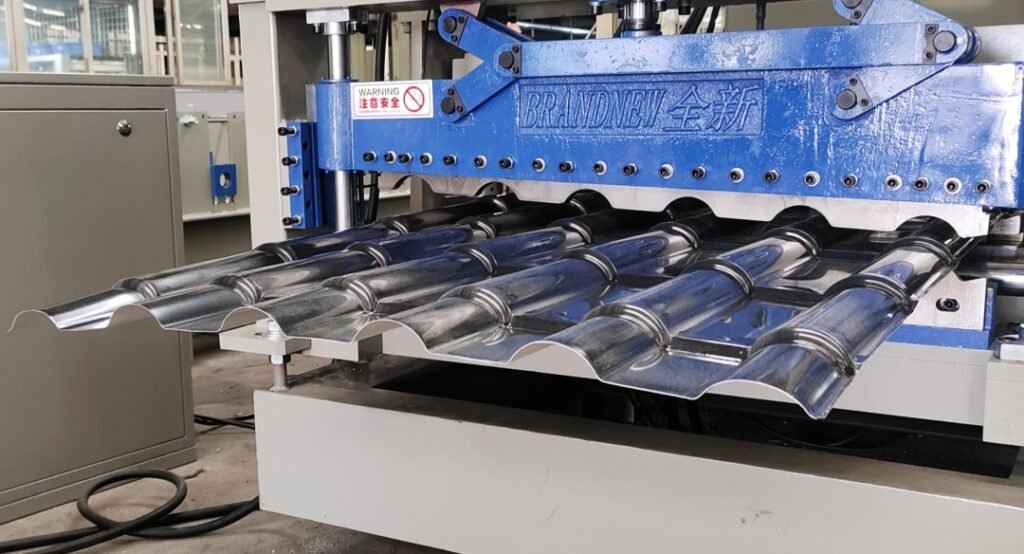

Two-step hydraulic stair-pressing and cutting device Pressing technique:

Clamp the sheet first, then press so that there are no folds or breaks after pressing, giving the finished tile a lovely appearance.
14 mm is the stair depth (or customized).
Cutter frame constructed by welding premium 20mm steel plate
Stop to press, post cut, stop to cut, two-piece cutting blades, no waste material, no blanking cutting,
5.5 KW pump motor; 12 MPa cutting pressure



Material for cutting tools:
Heat treatment at HRC58–62 degrees for Cr12Mov (=D2 steel, with at least one million times cutting life)
To guarantee that the circulated oil is clean and to extend the hydraulic system’s lifespan, the hydraulic system is equipped with an oil filter.

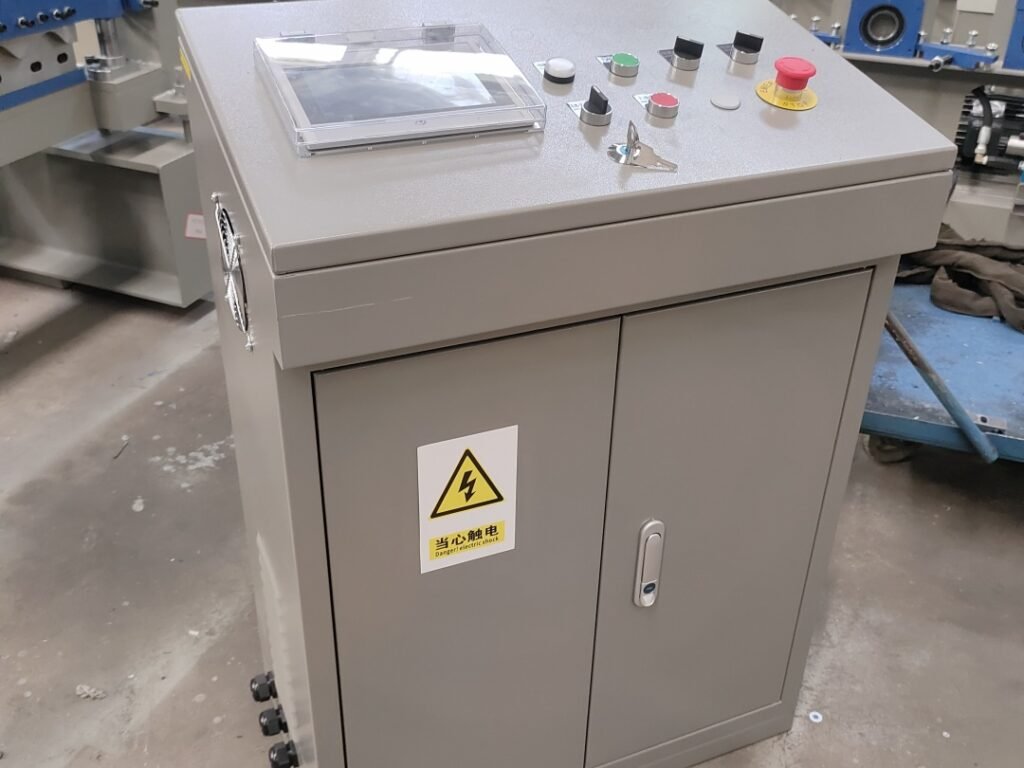

PLC Control System:

Control the tile length, cutting length & quantity automatically.

Combined with：PLC, inverter, Touch Screen, Encoder, etc

Cut-to-length tolerance≤±1 mm

Control voltage 24V
