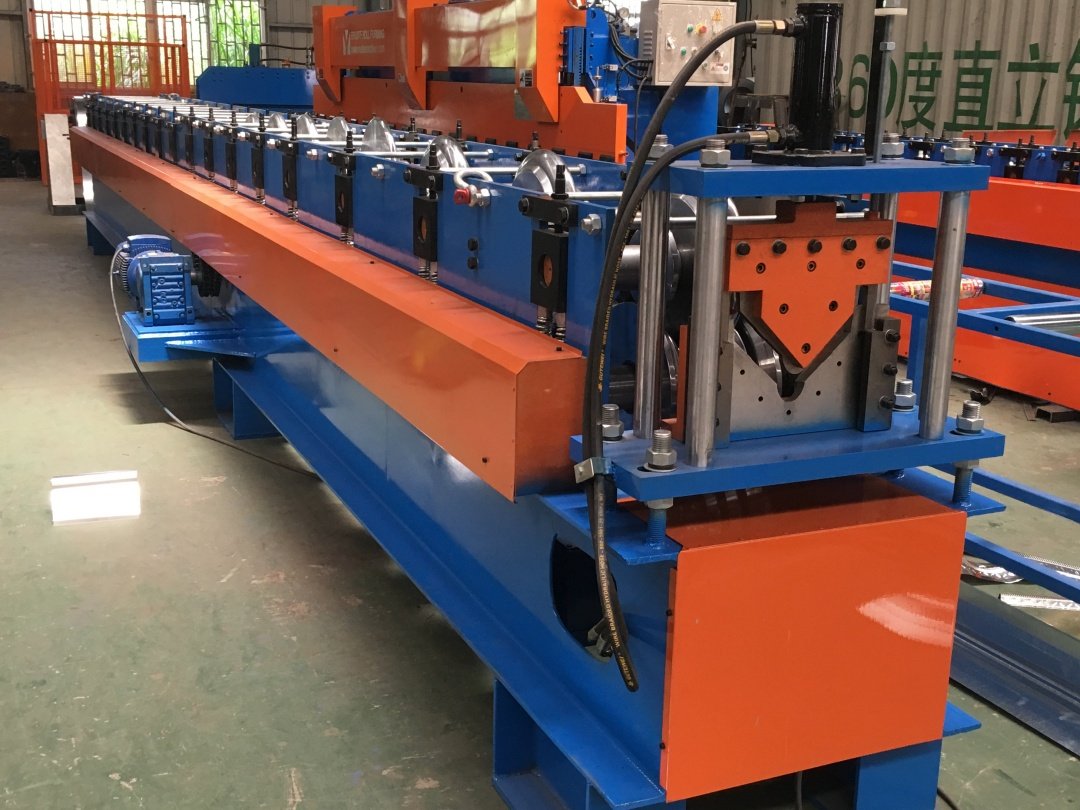

Half-round Ridge Cap Forming Machine

Types of Ridge Cap Sheet

Base on different applications, there are different names for kinds of ridge cap roll forming machines:

Standing Seam Ridge forming machine: It is for processing the most high-end and modern model currently, with no exposed fasteners and the best waterproof performance.

Ridge Roll / Roll Cap Forming Machine: Ridge roll cap is the common used style in the market, this design is suitable for metal roofing such as corrugated sheets and trapezoidal sheet, and is easy to install.

Ridge Cap Panel forming machine: This is a modern and geometric design, it is popular used for commercial and modern residential applications.

Vented Ridge Cap Forming Machine: This roof ridge design integrates ventilation functions, playing a crucial role in the ventilation of the attic.

Profile Design and Sample

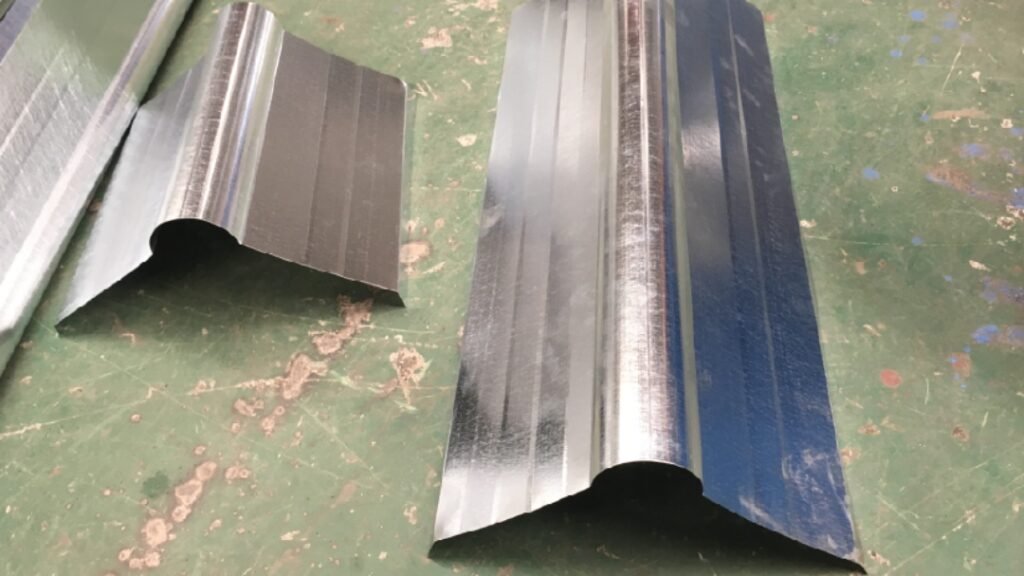

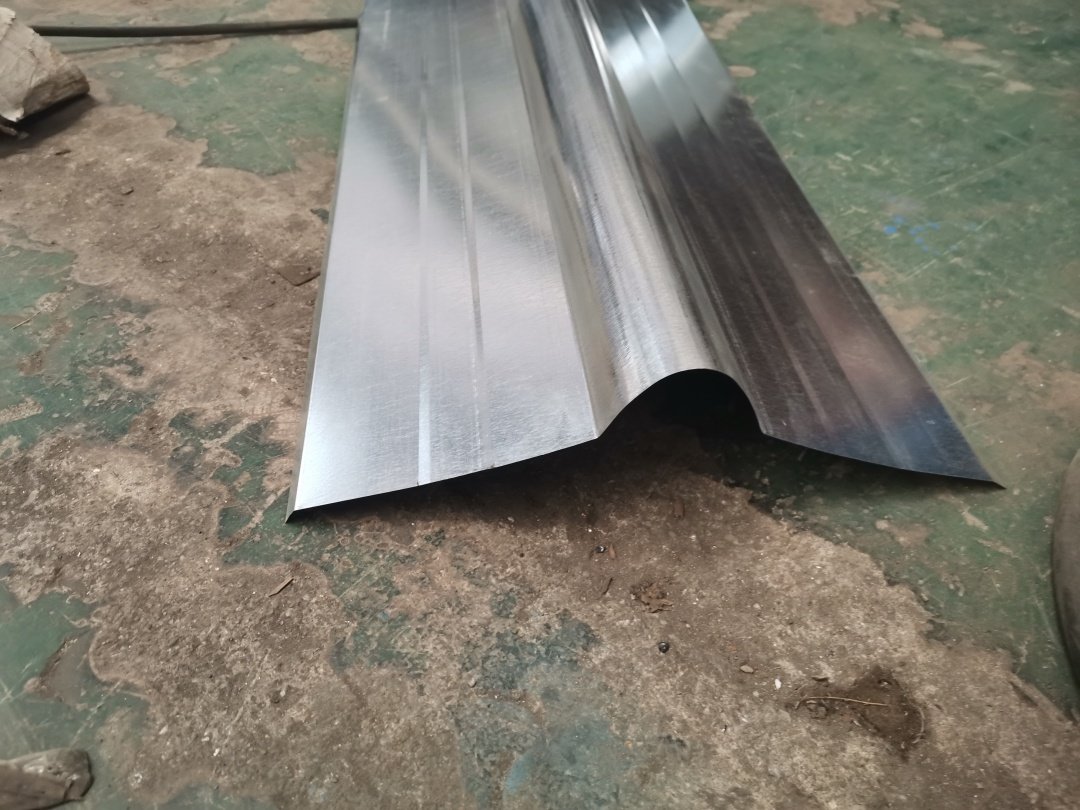

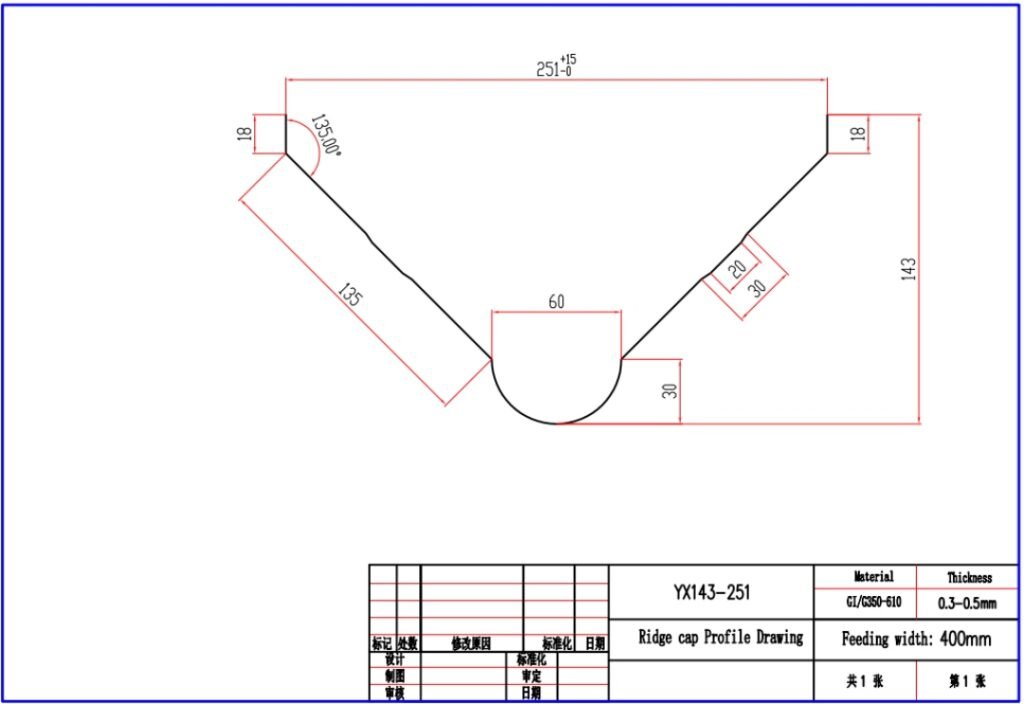

This is the half-round ridge cap design of ridge cap roll forming machine, it is a prefabricated, curved or semi-circular, stand-alone component that is directly attached to the ridgeline. The suitable pre-painted steel material thickness is for 0.3-0.5mm and feeding width is about 400mm.

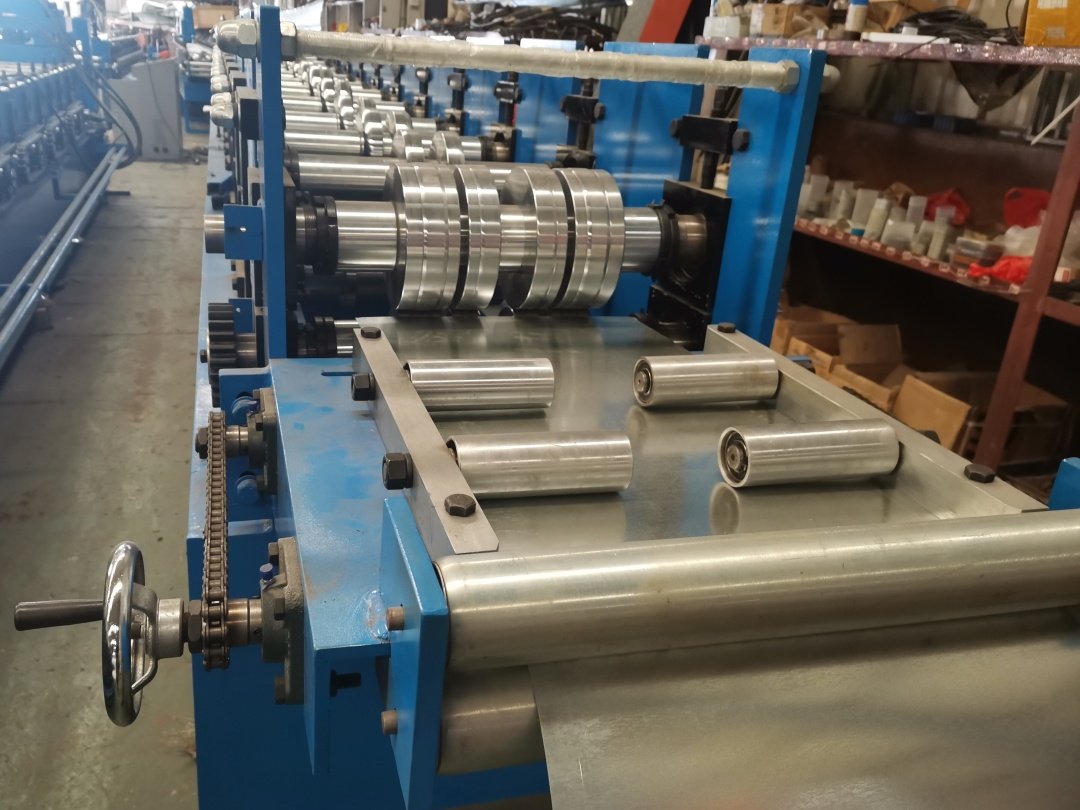

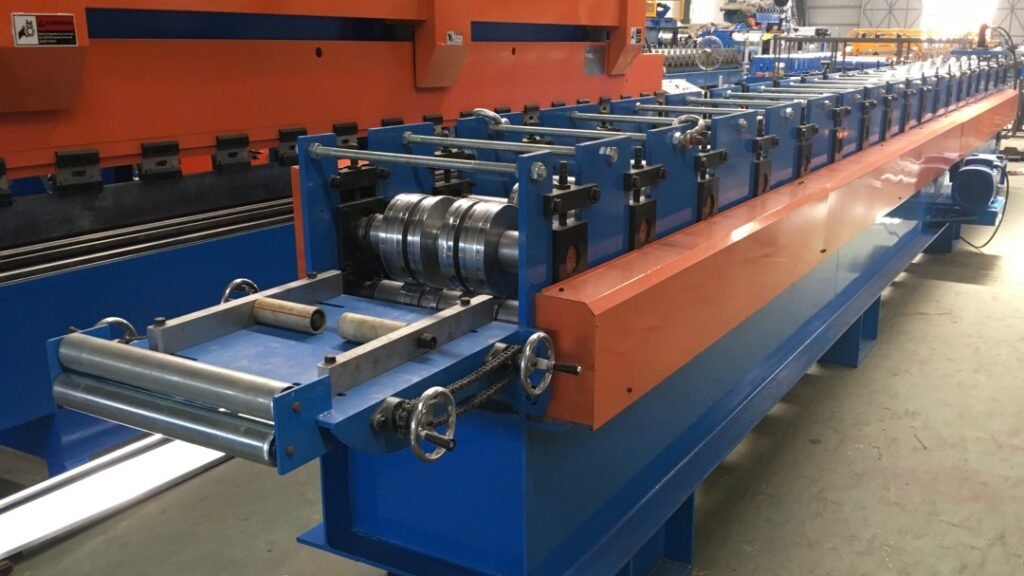

At the beginning end of whole ridge cap forming machine, next equipment after steel un-coiler, there is one set of feeding roller for guiding steel coil into main roll forming machine smoothly. The feeding table width is adjustable for steel coil, it is manual moving to left or right, good for matching width ridge cap machine line center.

Machine Key Parameters

Pre-leveling & punching device	7 shafts roll shaft design to levelling sheet

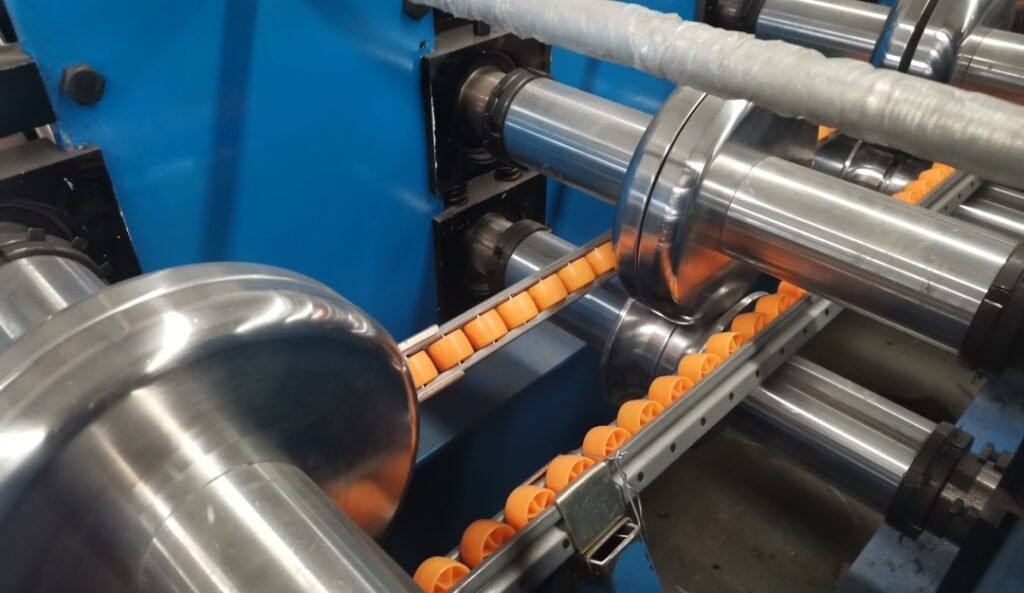

Cold Rolling Mills	Feeding section with guide
	Gear/Sprocket driving, 18-step to form
	Rollers material 45# Steel, CNC lathes, fine polished, hard Chrome Coated
	Shafts material 45# Steel, Diameter ф75mm, Precision Machined, fine Polished
	Main motor =7.5KW, servo motor
	Max. Line speed of roll former：2-4m/min

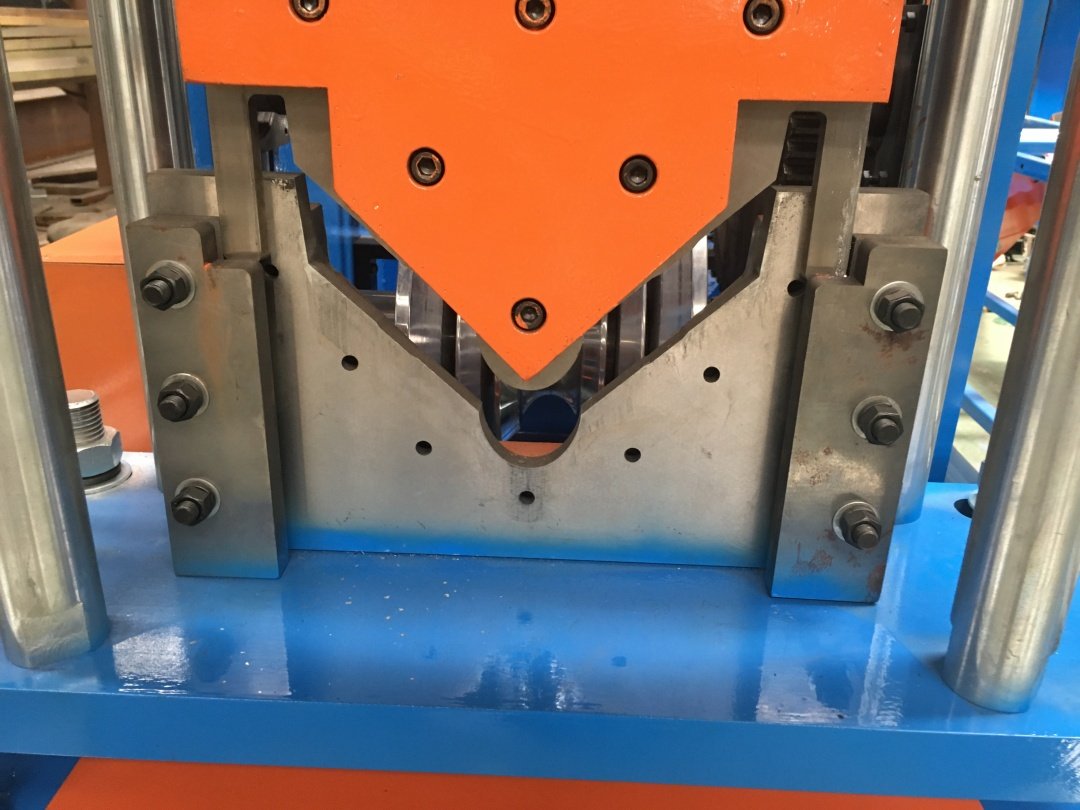

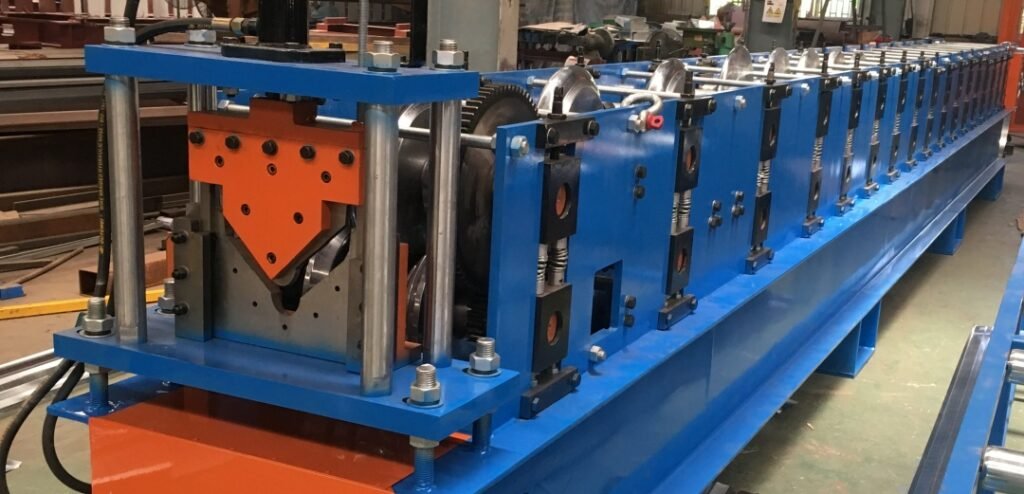

Hydraulic Pressing/ Cutting Device	Stop to press/cut, no blanking cut
	Cutting tool material: Cr12, Heat treatment
	Hydraulic unit, Pump motor =5.5KW
PLC Control System	Control the quantity, punching & cutting length automatically
	Combined with: PLC (Siemens), Touch Screen (Siemens), Inverter (Schneider), Encoder (Omron), etc
	Cut-to-length tolerance≤±2mm
	24V Control voltage

We Xiamen Beenew Machinery covers about 30,000 square meters for manufacturing kinds of roll forming machines, if you have your own designs for ridge cap roll forming machine or other roof side roll forming machines, purlin forming machines, welcome to contact with us soon for videos and machine specifications!
