Rain Gutter Machine

Description

Rain Gutter Machine

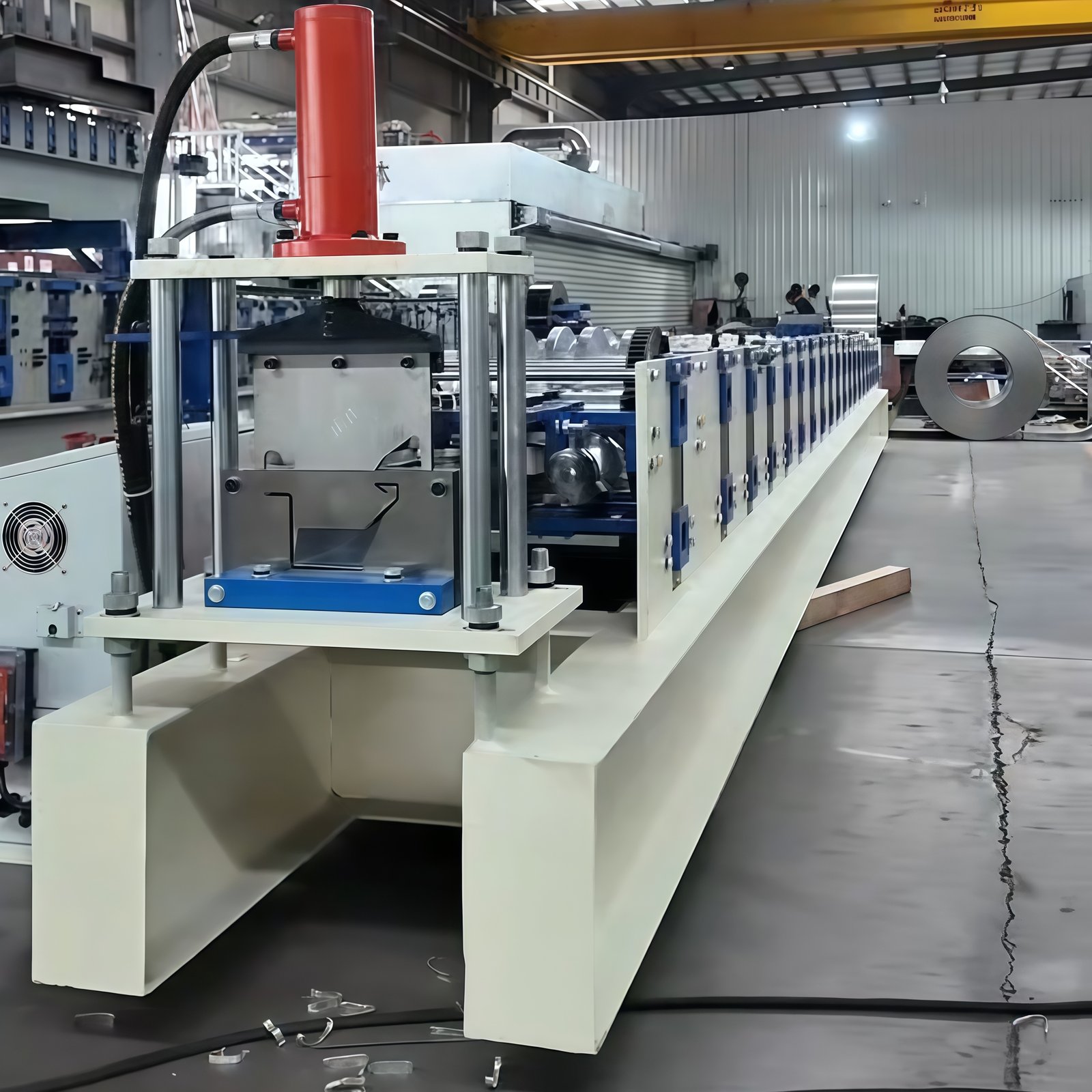

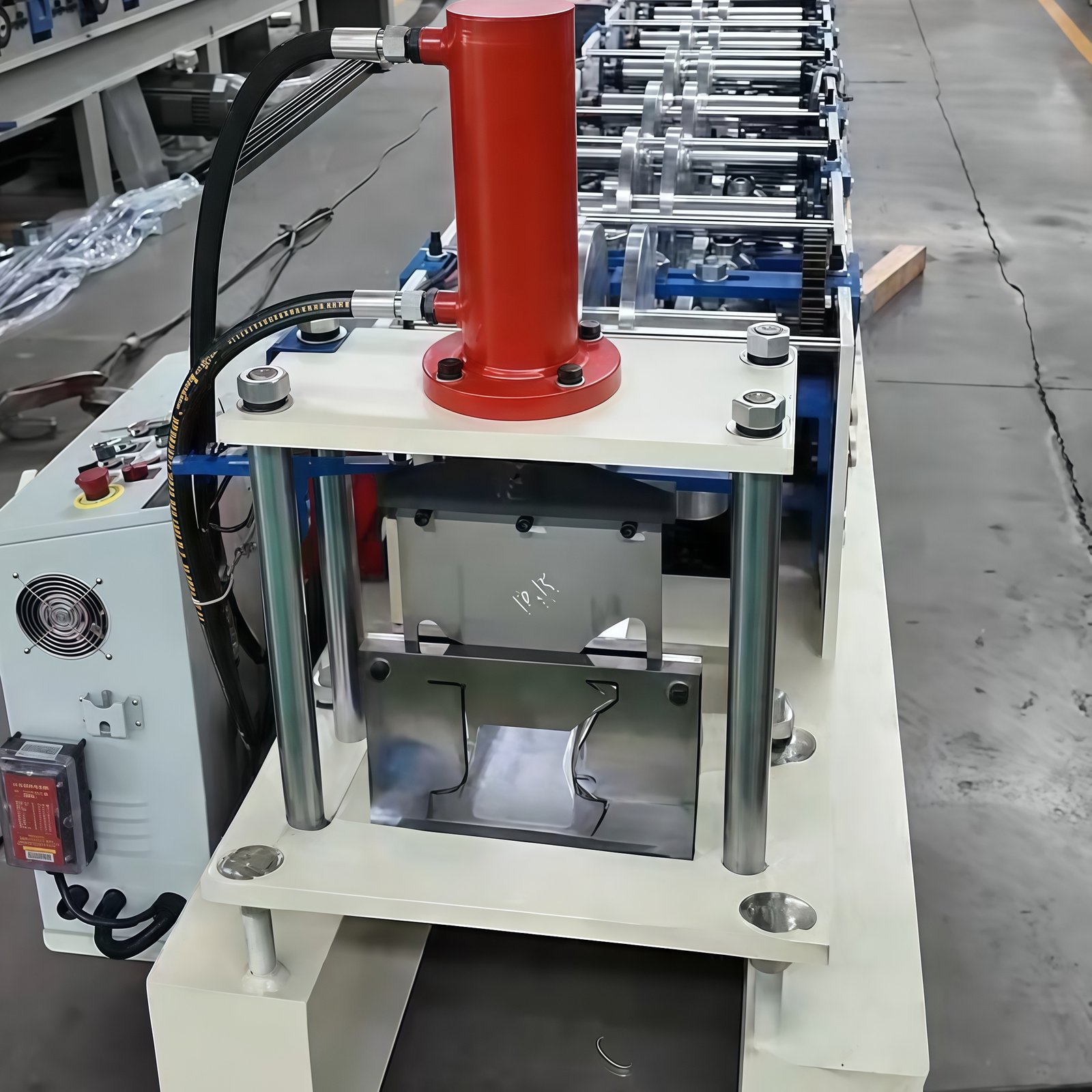

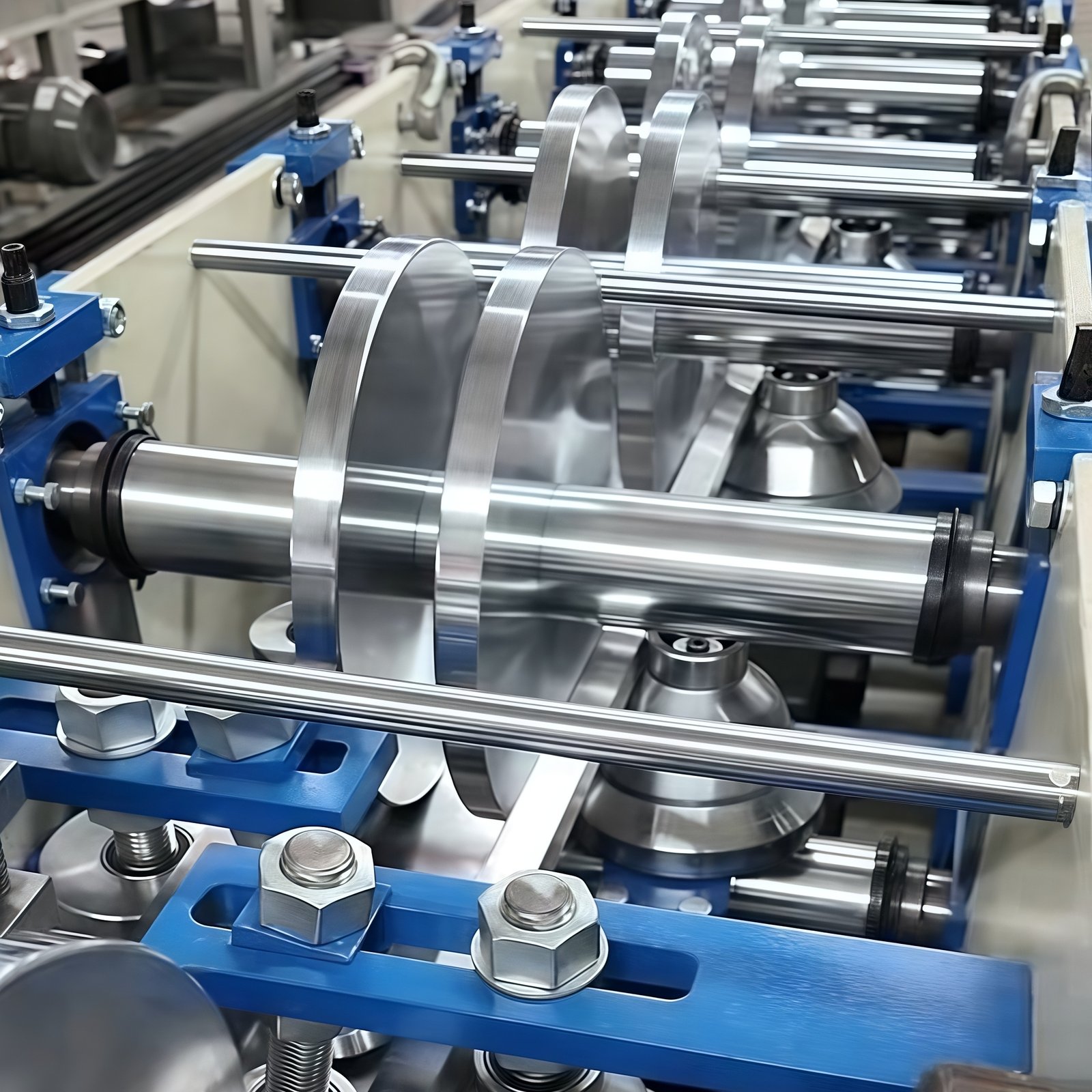

This rain gutter machine is suitable for coated steel sheets with a thickness of 0.5-0.8 mm. Some customers may require on-site work, so the de-coiler can be installed above the machine.It is suitable for coils weighing 2500 kg and with a diameter of 1200 mm. The whole machine length is 5800 mm, width: 1000 mm. Maximum weight: 6000 kg. Roll forming speed is about 17-18 m/min. All rollers are fine processed and then hard chrome coated to make sure accurate dimensions of finished products without scratching the material.

Application of Rain Gutter Machine

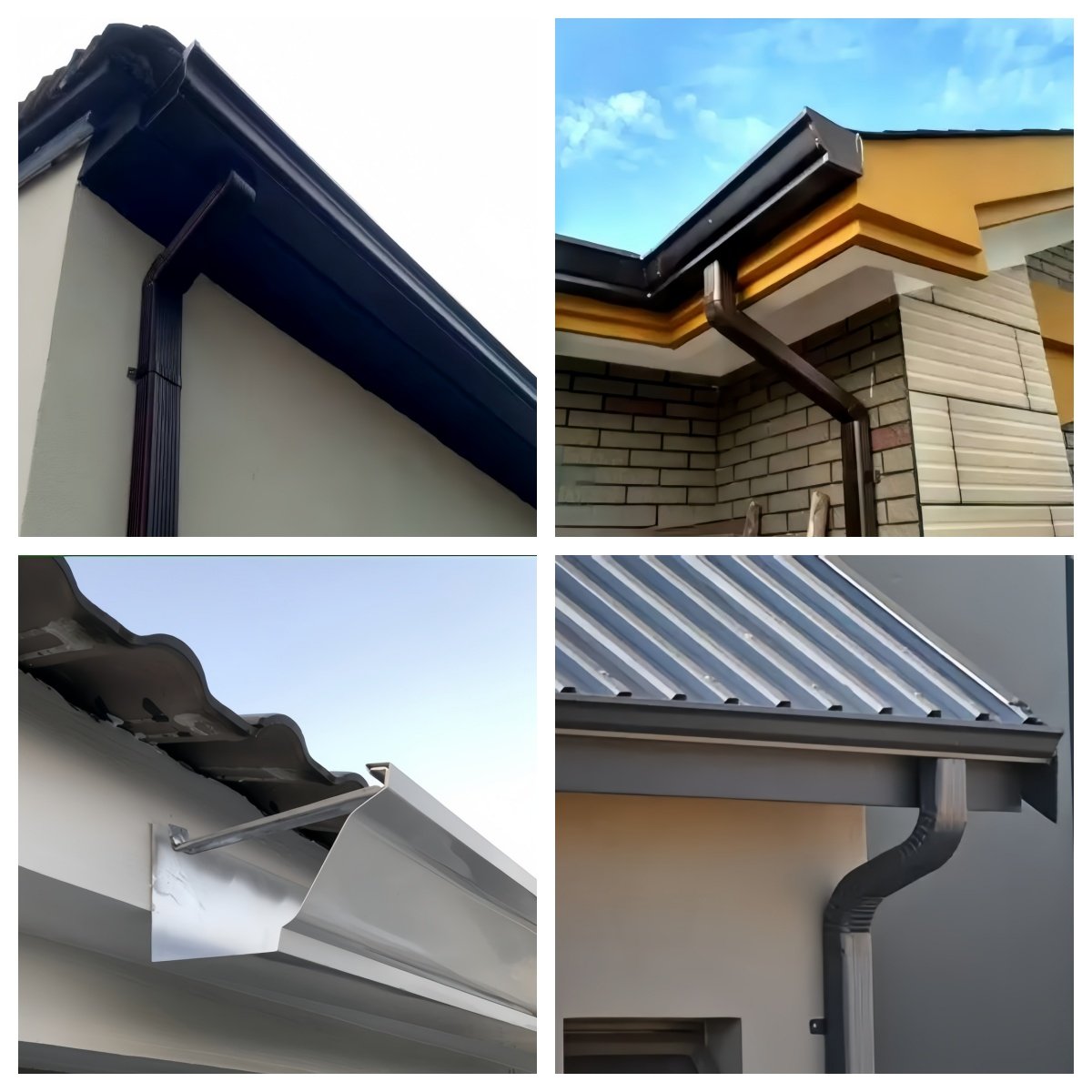

Whether it is a residential or commercial large-scale building, it needs to use gutter. But these gutter profiles are usually very long and cannot be transported easily. This is especially true when the material becomes thicker and the profile height increases. Therefore, each step needs to be manually calculated for feasibility and whether it will cause undesirable deformation. Therefore, when designing this gutter machine, the structure was simplified and compact while ensuring all functions. So the machine can be placed in a truck and driven to the construction site.
