Purlin Roll Forming Machine

Description

Purlin Roll Forming Machine

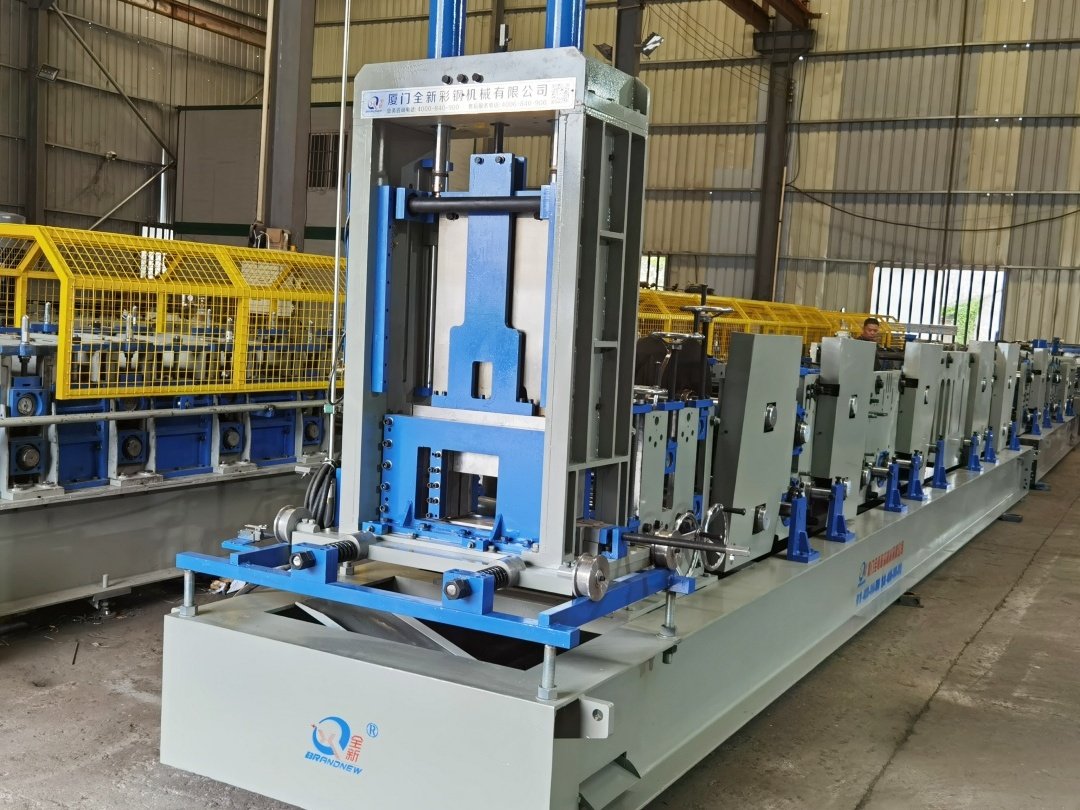

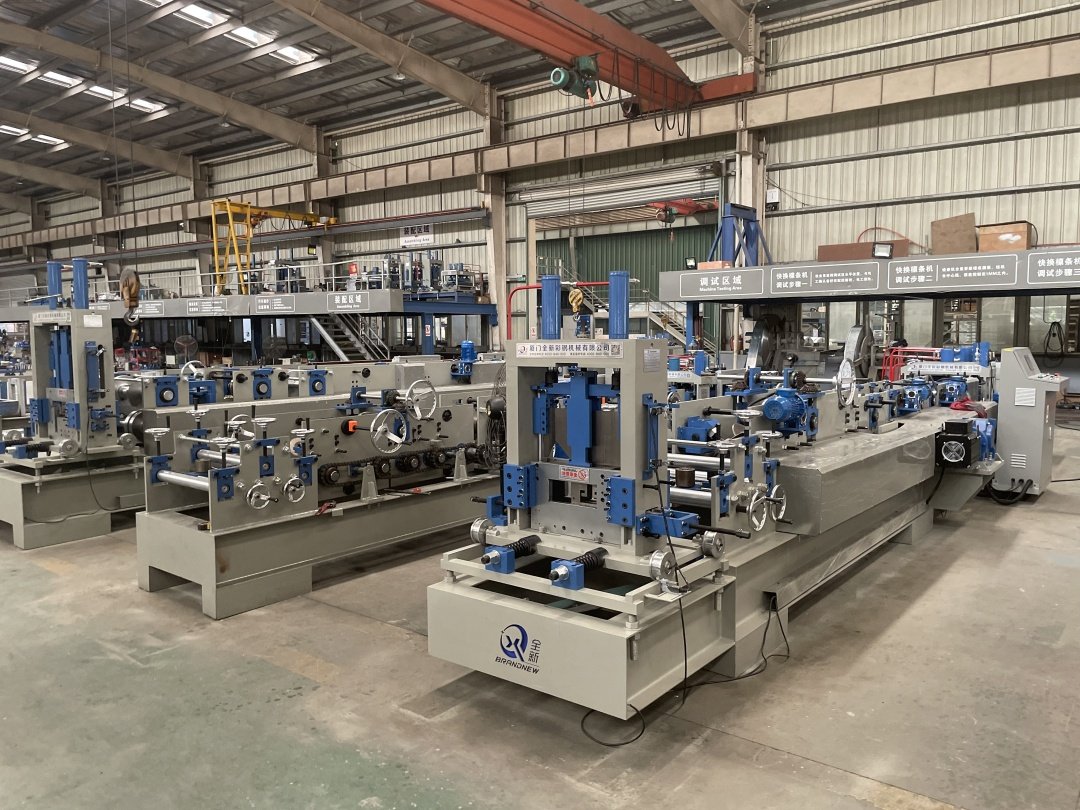

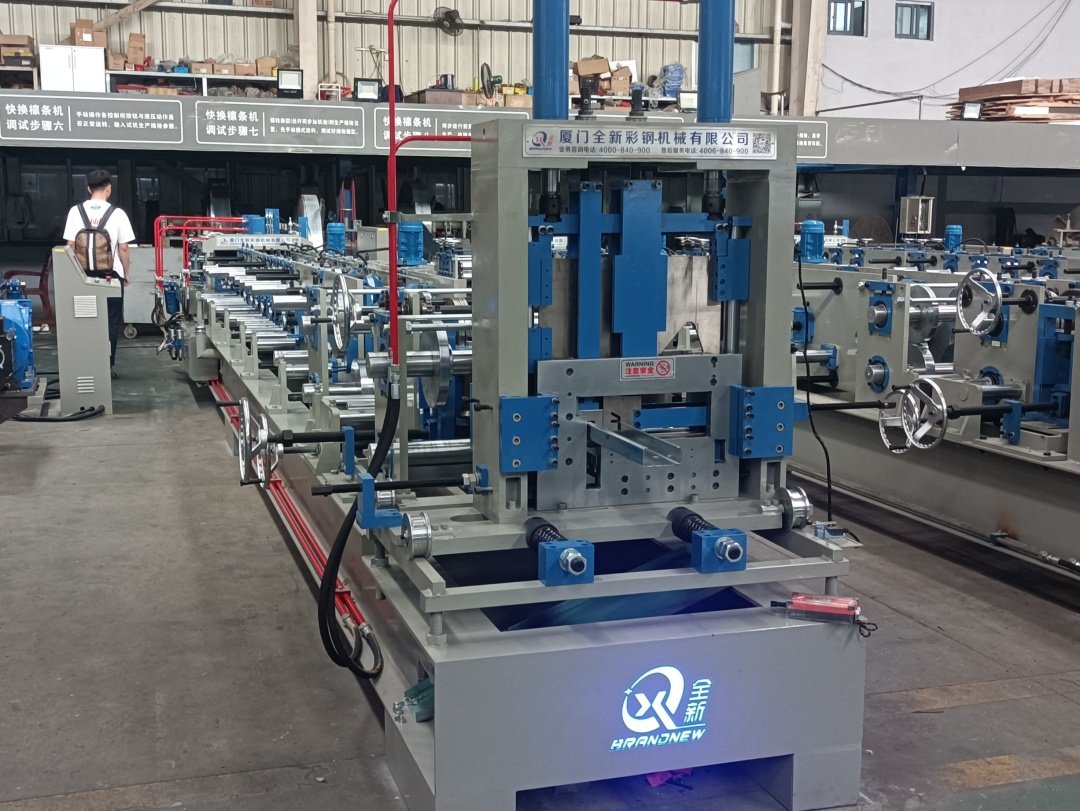

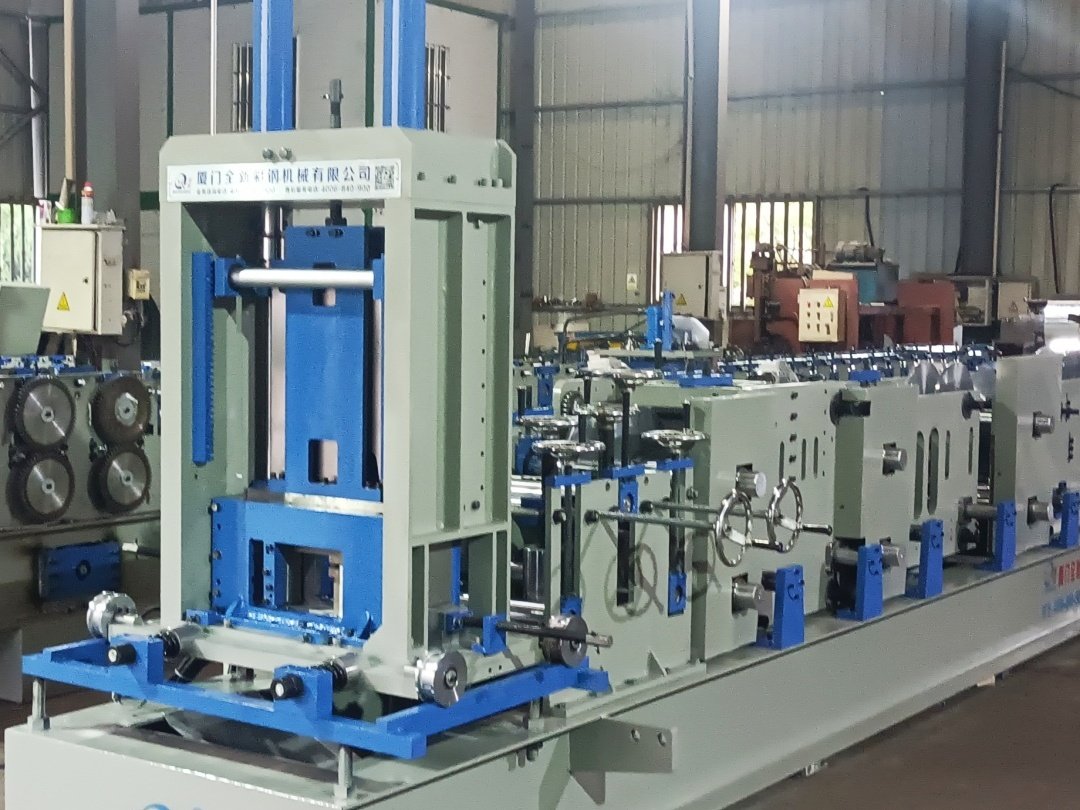

Xiamen Beenew Machinery produces both semi-automatic and automatic C Z interchangeable purlin roll forming machines, which are specifically designed to process multi-size C and Z purlin channels. These machines create high-quality, scratch-resistant C and Z purlin, which is ideally suited for sizes between 50 and 160 mm in width and no more than 3 mm in thickness.



Machine Parameters

Type of material to be processed	HR | CR | GI | Zink Alu. (550 MPA)
No. of Station	18+ 3steps
Max. Width of Coil	400 mm
Min. Width of Coil	120 mm
Max. Thickness of Coil	3 mm
Min. Thickness of Coil	1 mm
Max. Weight of Coil	5 Ton
Total Power	40 H. P.
Variable Line Speed	25-30m /min(Without cutting & punching)
Automation level in performance	P.L.C. control length and piece
Material Loading/Unloading	Hydraulic
Accuracy Level	Length +/-2mm
	Bend &Twist +/- 2 mm per 6m long..



Detailed Description

Size Change Unit: PLC-controlled and operated on touch screen, it is for continuous purlin size changing.





Superior Quality Components

Uncoiler: 6 tons capacity for supporting raw material weight, they are available in mechanical or hydraulic varieties.

You never have to worry about our machine quality, because every portion of our purlin machines are manufactured with precision by skilled worker and uses the best roll tools available. All the forming rollers are hard chromed up to 40 microns, the roll tools have the best quality and longest lifespan because they are carved in extremely accurate CNC machines.



Hydraulic Universal Cutting & Punching System:

Punching Unit: outfitted with 3+2 sets for all-around punching power
Universal cutters: Suitable for C and Z purlins of all sizes, they guarantee accurate and tidy cuts.

Control System: A PLC system is used to precisely and effectively manage the quantity of pieces, cutting lengths, and punching operations.



Project Application Case
