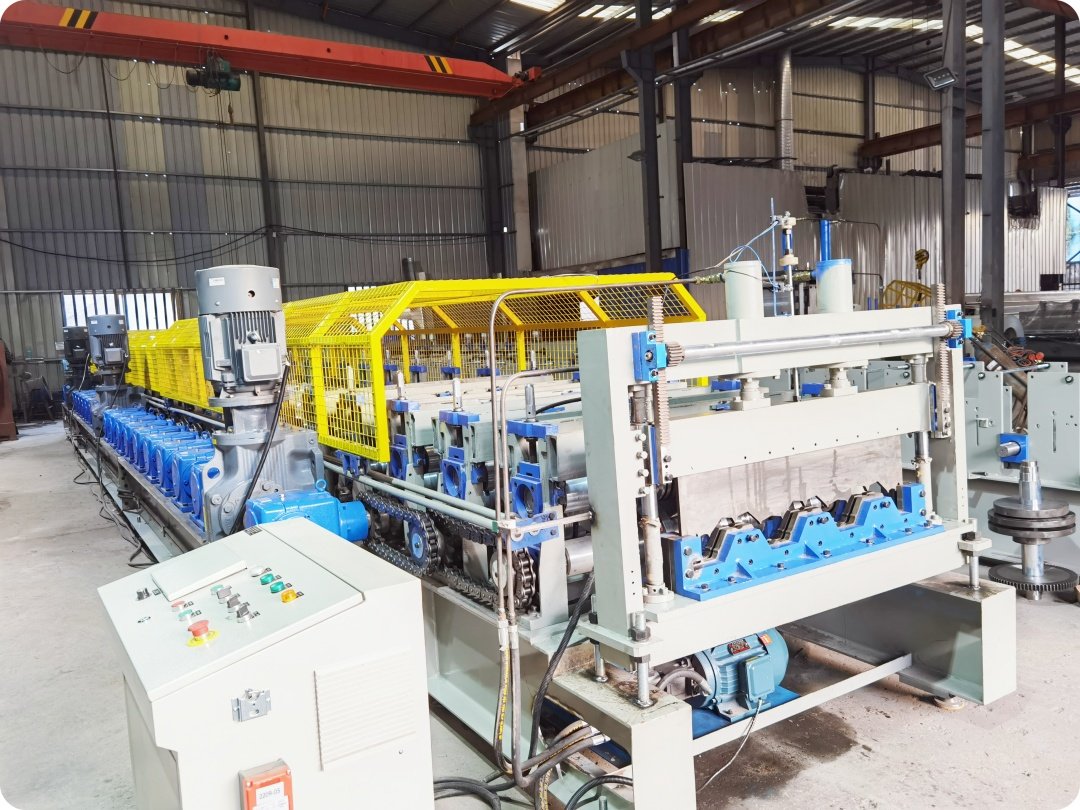

Metal Deck Roll Forming Machine
The 720-foot floor deck created by metal deck roll forming machine meets the need for quick construction of the primary steel structure, so engineer team can quickly build a stable working platform, and can employ several floors to lay layered concrete slabs and profiled steel plates.
Description
Brief Information
Galvanized steel sheets are rolled and cold bent to create the metal deck roll forming machine.
It has a trapezoidal, V-shaped, U-shaped, or other comparable cross-section.
The 688, 750, and 720 type floor deck roll making machines are the common models of floor deck equipment.
Roll-formed floor decks are strong, lightweight, and capable of supporting large loads.
Lovely look, seamless construction, strong seismic resistance, and simple installation.
Power plants, power equipment firms, automobile exhibition halls, steel structure, workshops, cement warehouses, steel structure offices, airport terminals, train stations, and stadiums have all made extensive use of its benefits.huge theaters, concert halls, supermarkets, and logistics Numerous steel structures, including stadiums, Olympic stadiums, and the center.
The 720-foot floor deck created by metal deck roll forming machine meets the need for quick construction of the primary steel structure, so engineer team can quickly build a stable working platform, and can employ several floors to lay layered concrete slabs and profiled steel plates.
Machine Key Parameters
| Item | Value |
| Driving Motor | 30KW |
| Forming Station | 24 |

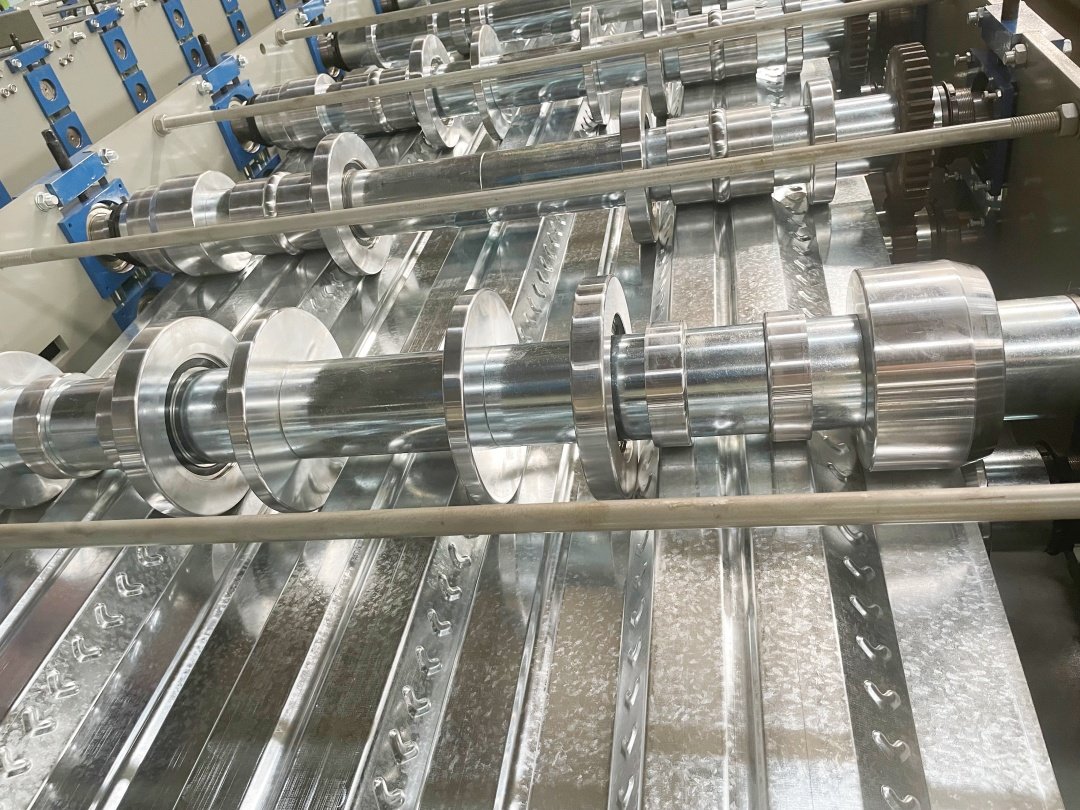

| Roller Material | GCr15 |
| Shaft Diameter | 75/90mm |
| Shaft Material | 45# steel |
| Pump Motor | 7.5KW |
| Frame Type | Common weld wall |
| Cutting Type | Hydraulic Cutting |
| Control System | PLC |
| Main Electric Parts Brand | Simenz, Delta, Omron or Schneider |
| Cutting Length Precision | ±2mm |
| Machine Dimension | 11300*1550*1650mm |
| Electric Standard | 380V/50HZ/3Ph or customized |
| Paint Color | Grey White+bule or customized |
Description
The floor deck worked as the concrete floor’s tensile steel bar during the use phase, increasing the floor’s rigidity and reducing the quantity of steel concrete. The metal floor deck system has a high bearing capacity because the surface embossing of the profiled slab produces a strong bonding force between the concrete and the floor deck, forming a whole with stiffening ribs. Good performance metal deck roll forming machine will produce good steel deck sheets for your steel engineers.

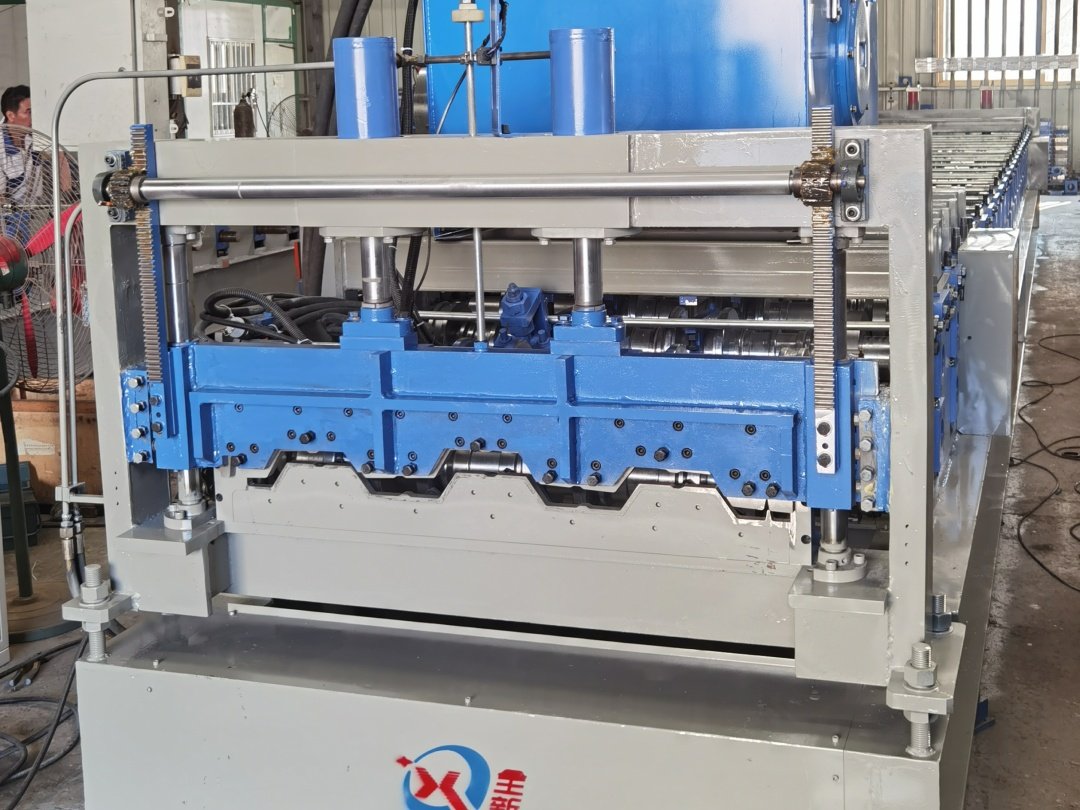

With a high safety factor (the host stops and cuts), the metal deck forming machine uses a renowned brand good quality hydraulic motor that immediately cuts off after cold roll forming without deformation or waste.

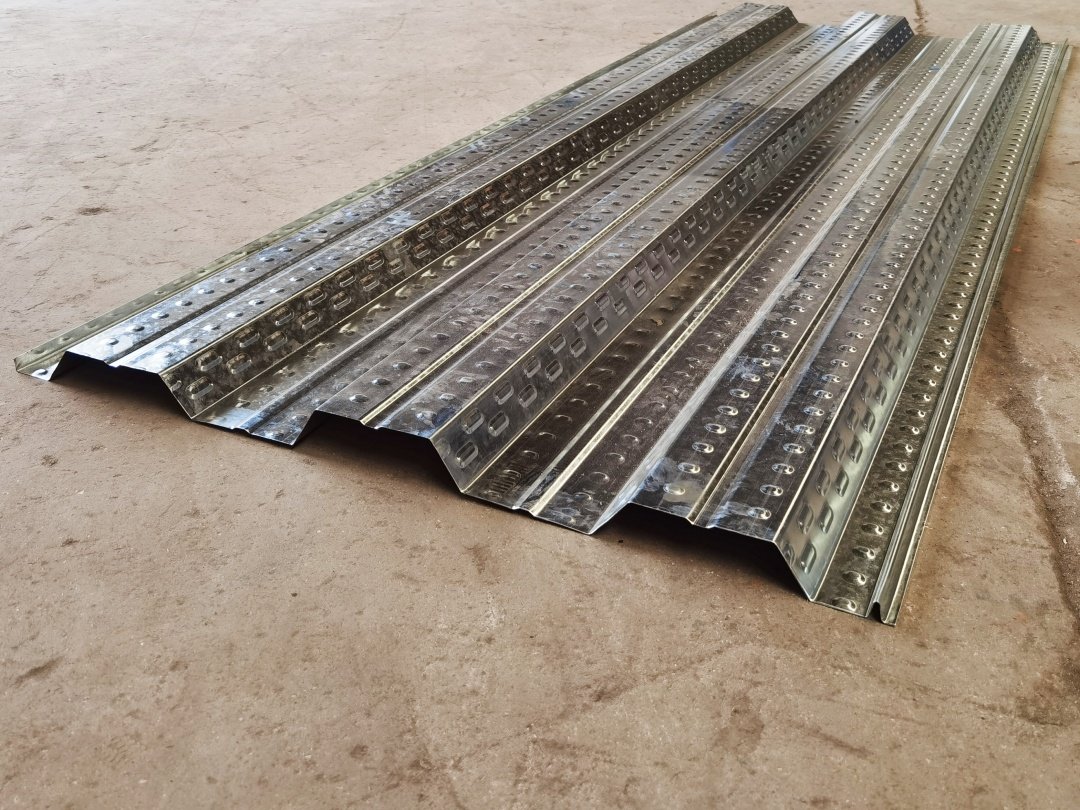

The metal deck roll forming machine produces a steel floor deck with a simple shape, lots of waviness, and great strength. It has good adhesion and is installed with spot-welded steemesh mixed with on-site concrete pouring.
It is important to lower the floor load and do away with the steel formwork in high-rise buildings. Decrease the project steel amount but maintain the same durability, saving money, this is all the PEB project engineers want to do.
Metal Deck Roll Forming Machine Technical Structure
A manual uncoiler, a main roll forming machine, a hydraulic cutter, an electric control system, a hydraulic system, and a discharging rack are all included in the floor deck forming machine.
Installation and Aftercare
1. An online installation guide; images and videos of the equipment will be given.
2. To debate and communicate, an online group service will be started.
3. To maintain contact, regular video conferences should be held.
4. Installation locally.
In order to guarantee the machine’s regular operation, Xiamen Beenew will send engineers overseas to install it at the customer’s location and will offer all technical assistance. Costs will be discussed.

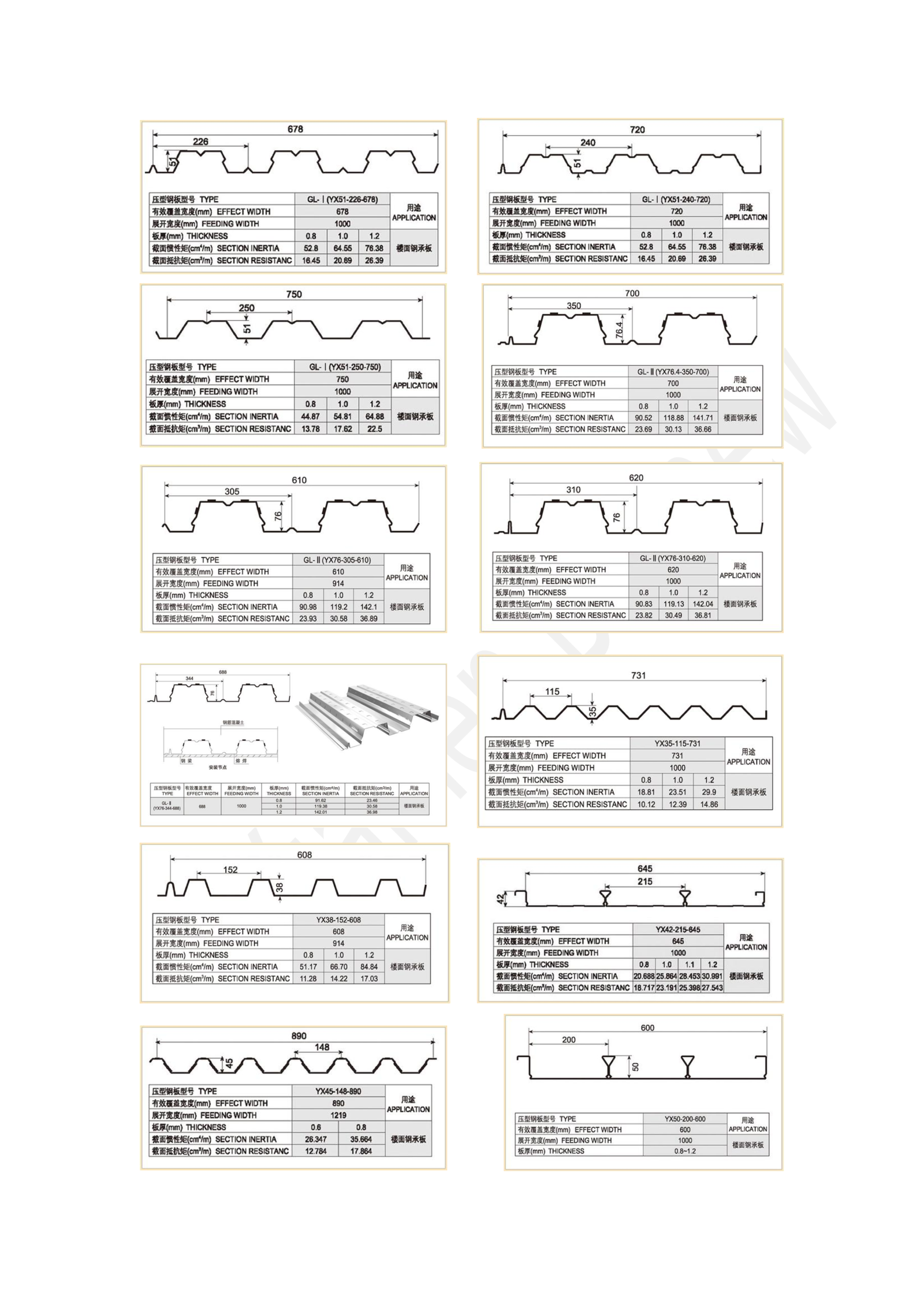

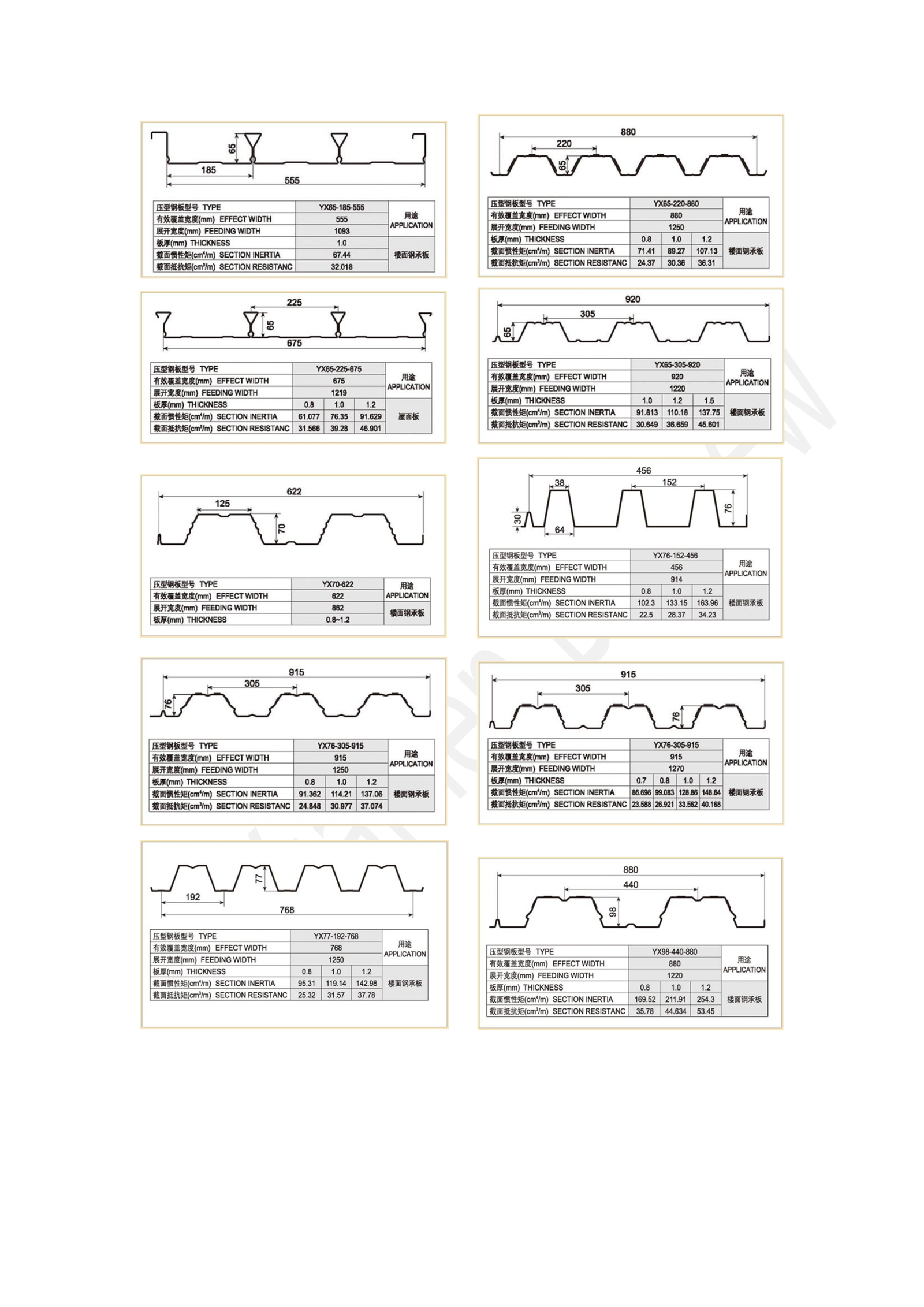

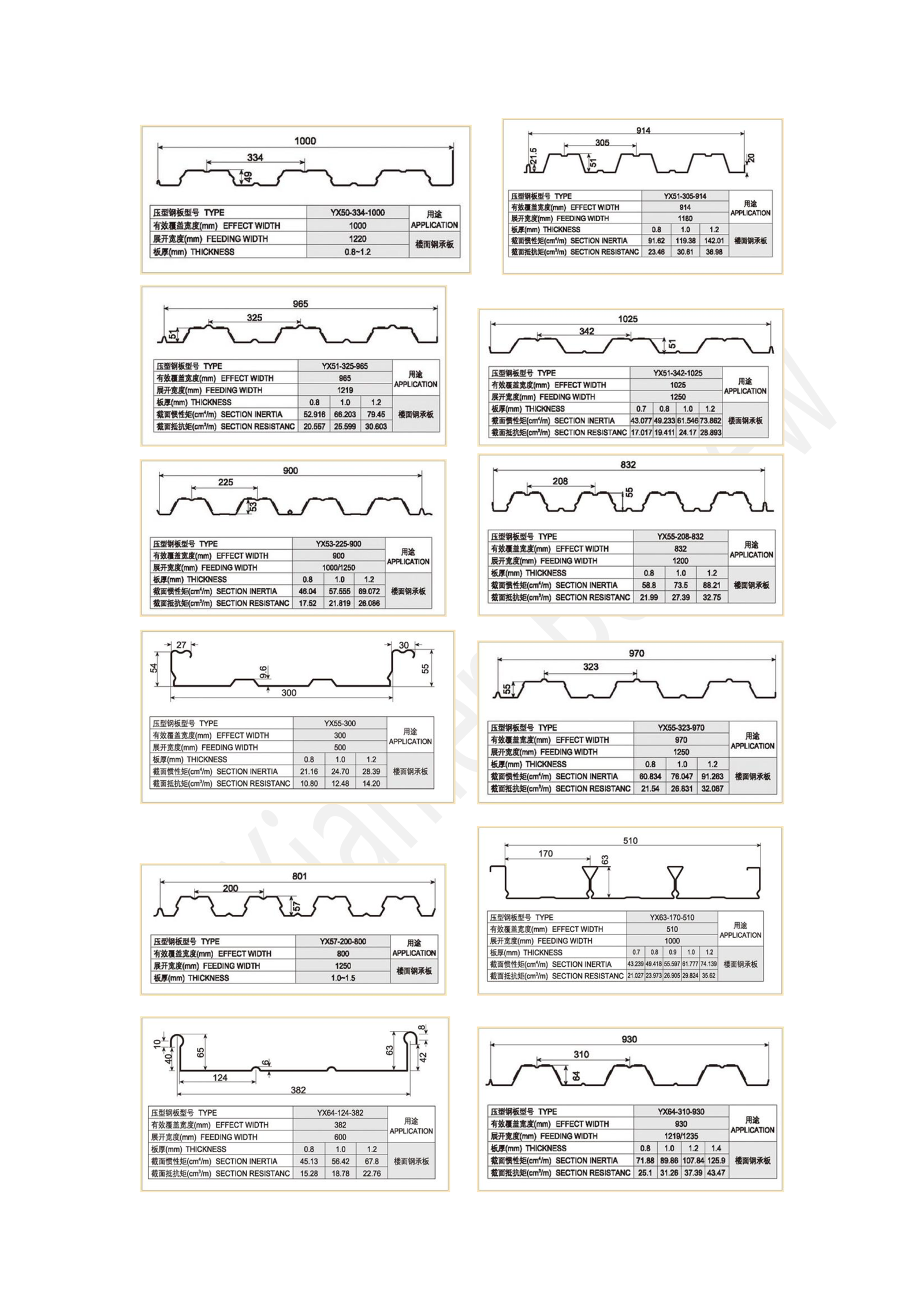

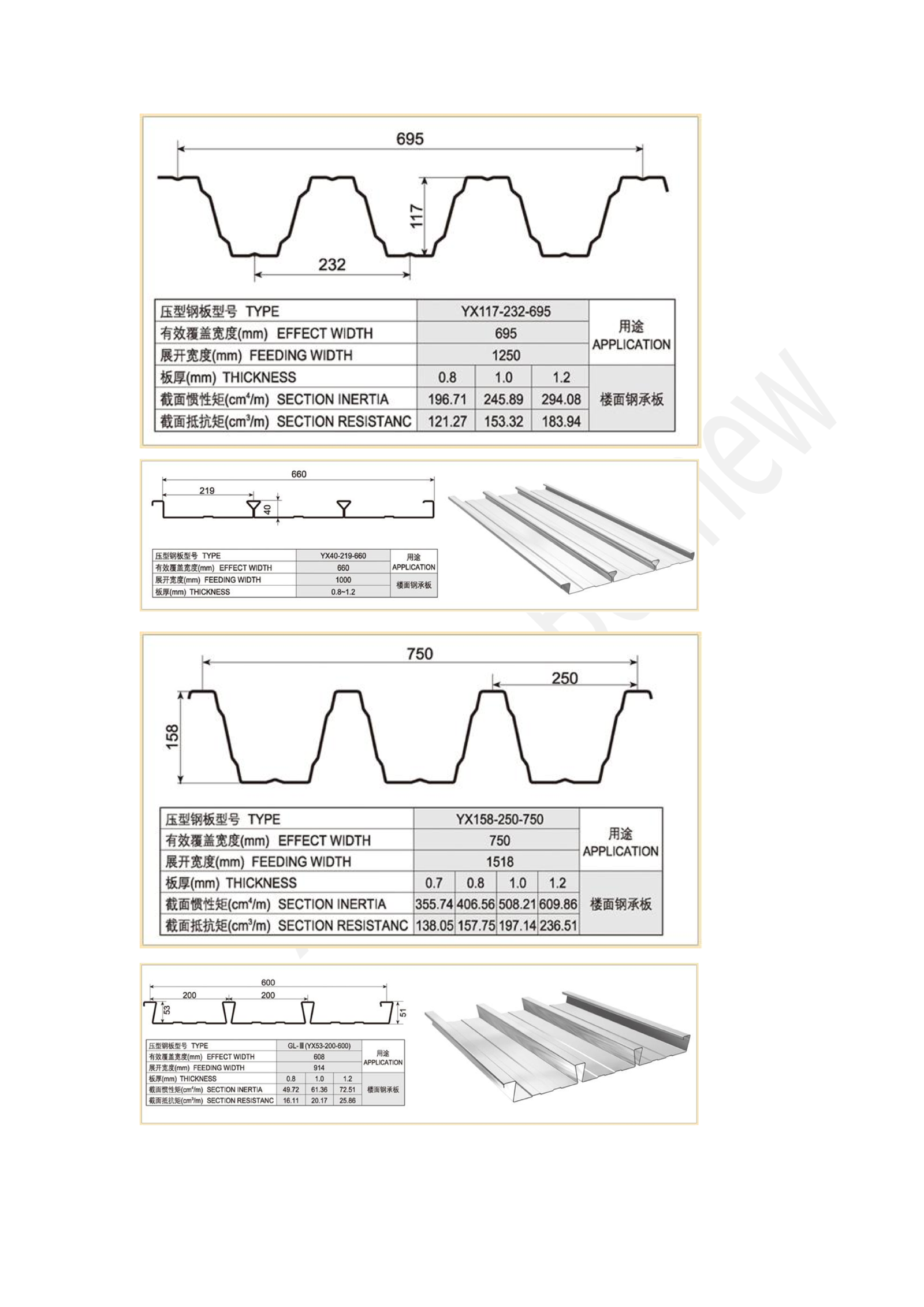

Kinds of Metal Deck Roll Forming Machine Profile Designs
