Downspout Roll Forming Machine

Description

Downspout Roll Forming Machine

We are expert producers of water gutter metal sheet forming machines, downspout machines, and downspout roll forming machines. Building water systems are supplied by water downspout roll making machines or automatic round water downpipe machines. Rainwater can be redirected away from a building’s foundation using gutter downspouts, which are vertical pipes.





The downspout machine styles offered by Ximen Beenew Machinery include as follows:
1. Square down pipe roll forming machine

2. Rectangular Downspouts machine

3. Round Downspouts forming machine

4. Round Corrugated Downspouts forming machine

5. Rainspout Roll Forming machine

5. Downspout pipe roll forming machine





Down Pipe Roll Forming Machine

Similarly, A pipe that runs up the side of the house vertically is called a downspout. At the top, it is attached to a gutter channel hole. Typically, the other end is a few inches above the ground and bends outward. So, the water is able to leave the house through the pipe. At the borders of the house where the roof slopes downward, a gutter is a channel that is placed at or slightly below the roofline.

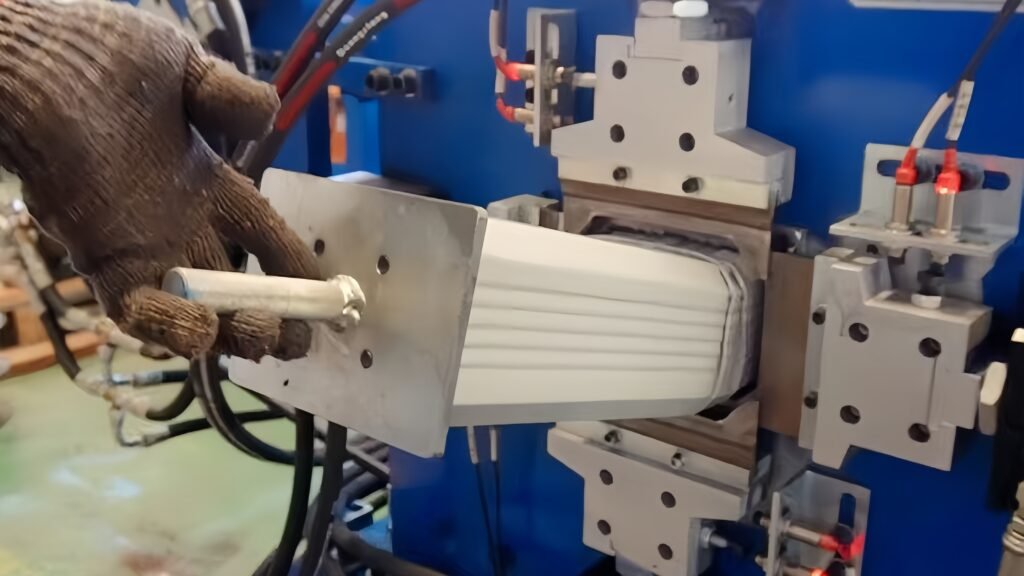

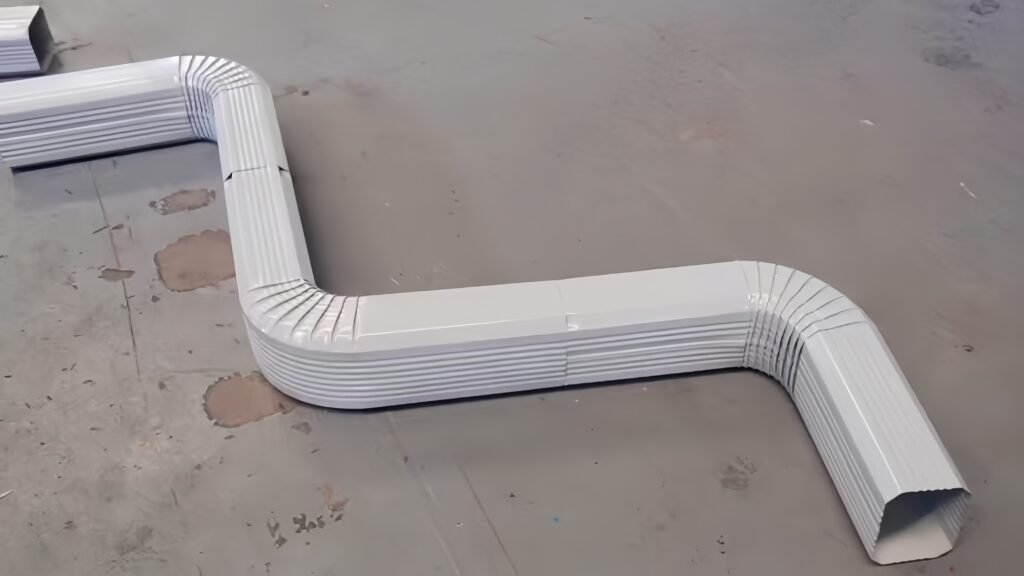

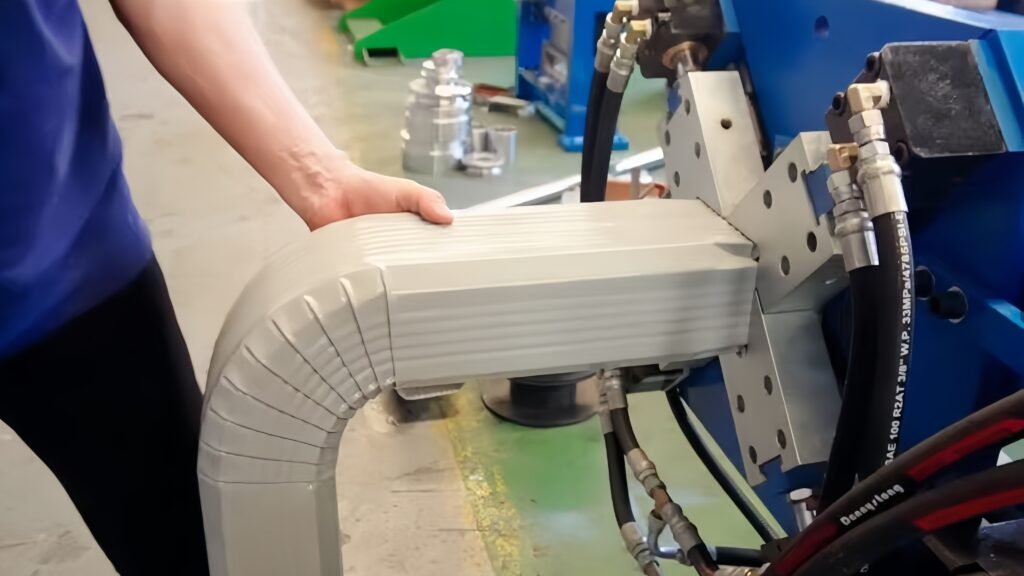

Our down pipe roll forming machine is the one-stop solution for straight down pipe, elbow downspout pipe and down pipe with ready shrinking end for installation. So we can totally manufacture down pipe forming machine, downspout elbow machine and down pipe shrink mouth machine.





Design capacity of downpipe machines
Thickness of raw material: Aluminum: 0.4-0.6mm
Raw material input: 406mm
Working speed of downspout machine line: 15-20 m/min
Dimensions of forming machine: approx. L108,00*W900*H1300 mm
Weight of the machine: around 5,000kg





Machine Components

A manual decoiler, feeding table, roll forming machine part, hydraulic cutting unit, output table, hydraulic oil pump, electrical control cabinet, and other machine components will be integrated into this downspout machine production line.
