Door Frame Roll Forming Machine for Brazil

Application Description

Door frame roll forming machines are deeply demand for residential communities, high-rise buildings and garage doors. Xiamen Beenew is committed to manufacture complete metal door guide roll forming machines, or we call it rolling shutter door frame forming machines. All the roll forming machines are the good solution to enhance overall building quality and ensure excellent safety metal door systems.

Notably, Beneew Brand Roll Former door frame making machines can meet customers’ production needs for a wide range of door frame types and sizes: such as door guide forming machine, door frame machine, rolling door core pipe forming machine and also roller shutter door forming machine, we can OEM for users, too.





Machine Description

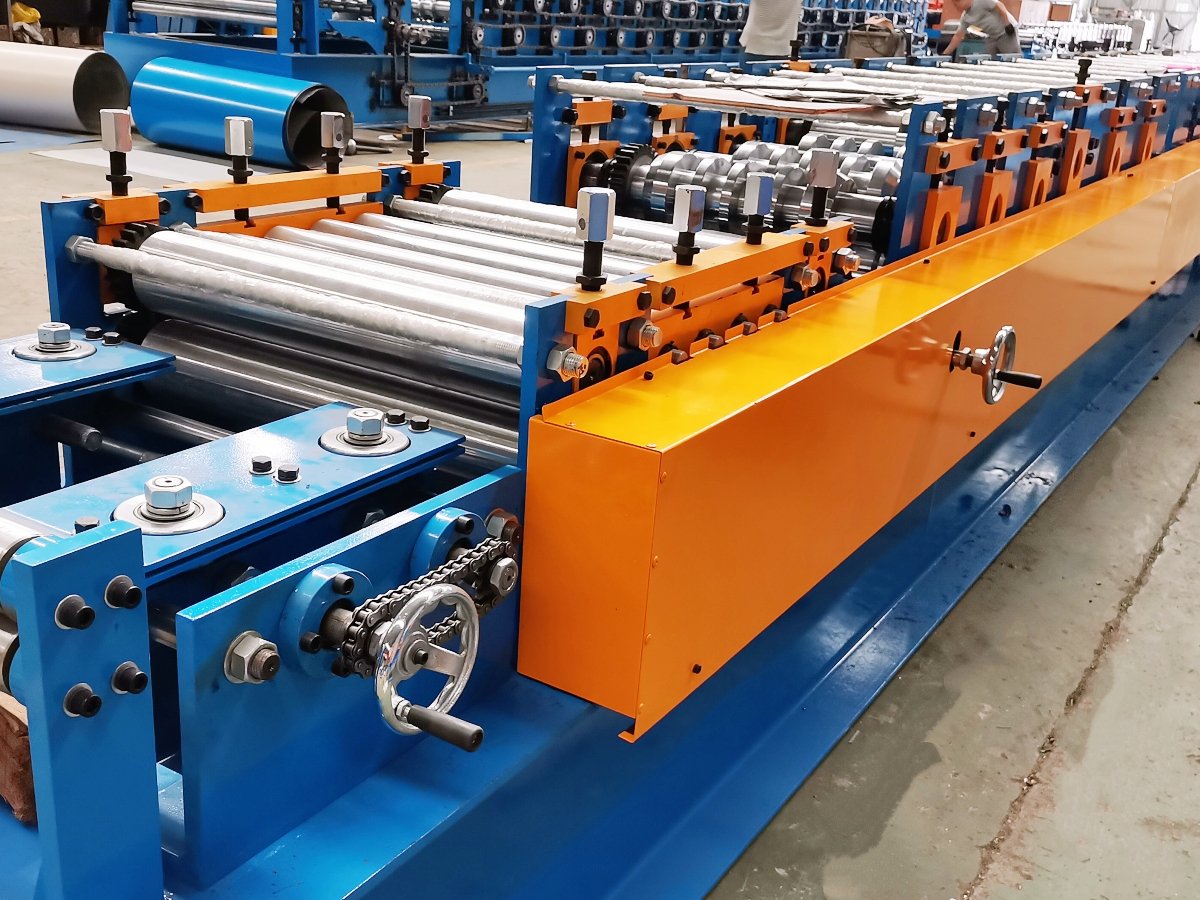

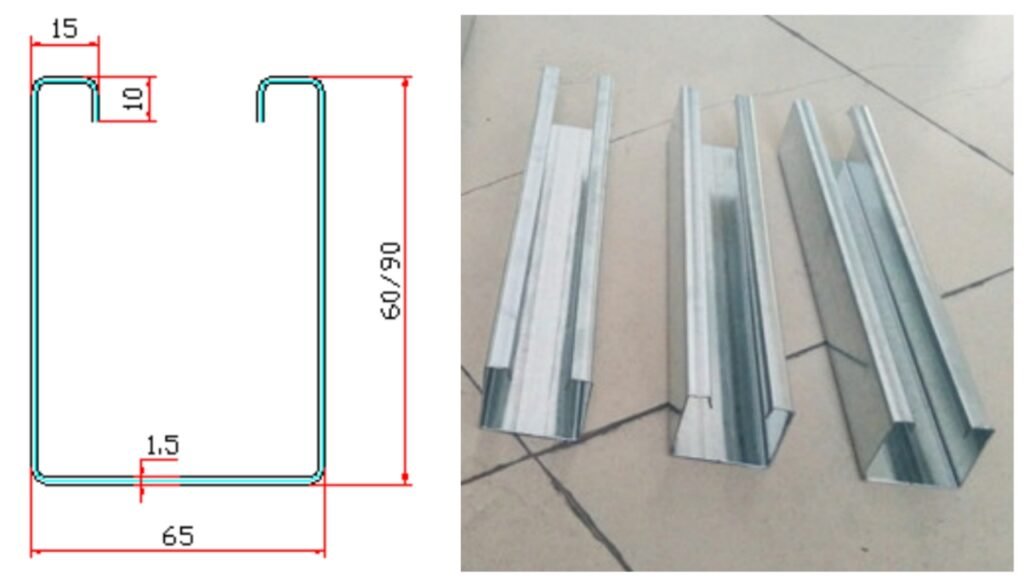

This C65 door frame roll forming machine is popular in Brazil, machine is suitable for 217mm and 277mm feeding width, 1.2-1.5mm galvanized sheet within yield strength at 345MPa, it is used for roller shutter door system’s door guide, so we also call it metal rolling door guide roll forming machine.



Machine Key Parameters



Transmit Type: Gear/sprocket

Driving Motor: 11KW

Shaft Diameter: 75mm

Forming Station: 20 stations

Forming Speed: approx. 20-25m/min

Type Change Mode: Manual,changed by D-spacer

Roller Material: Made from GCr15, heat-treatment

Hydraulic Motor: 4KW

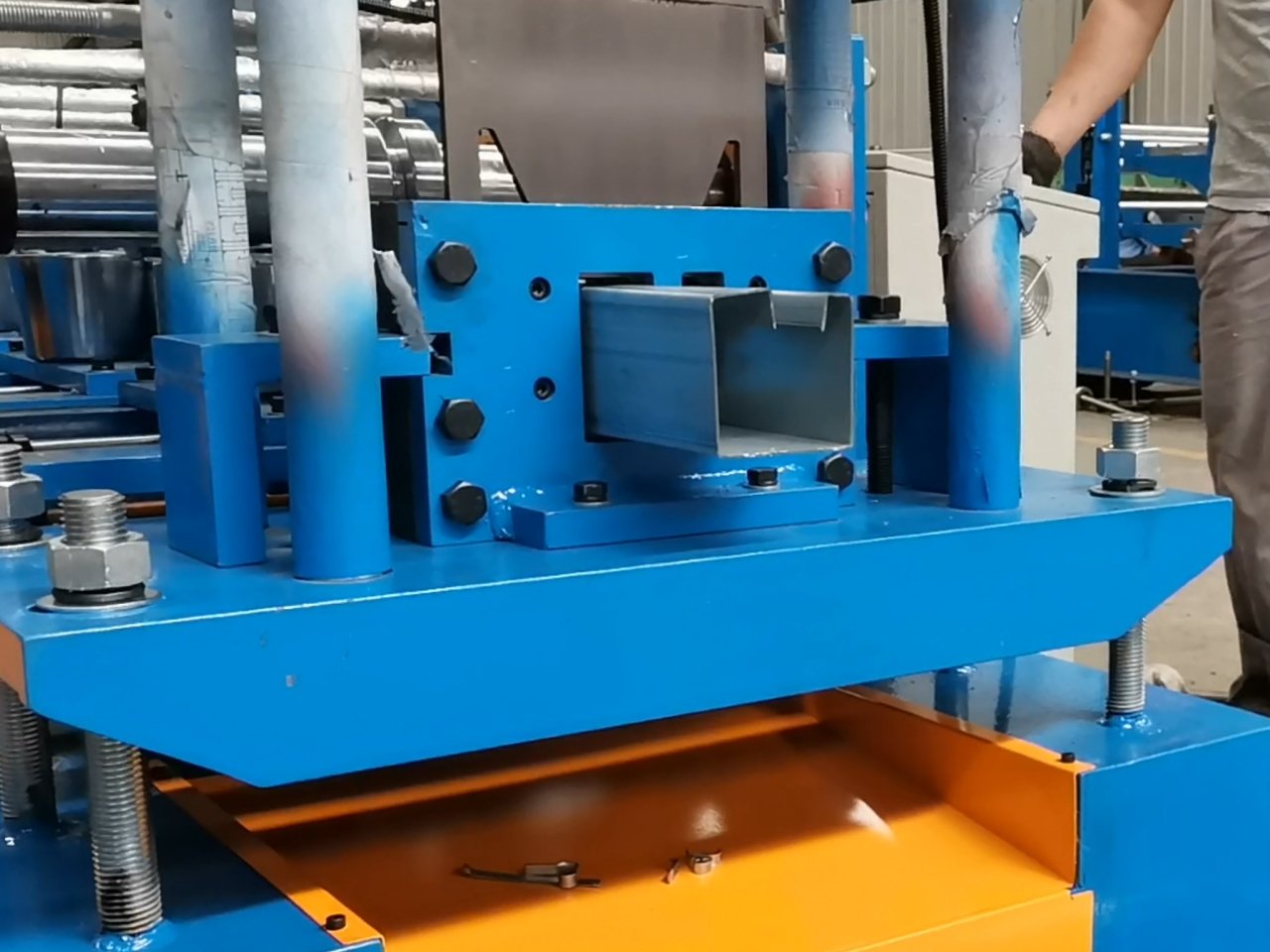

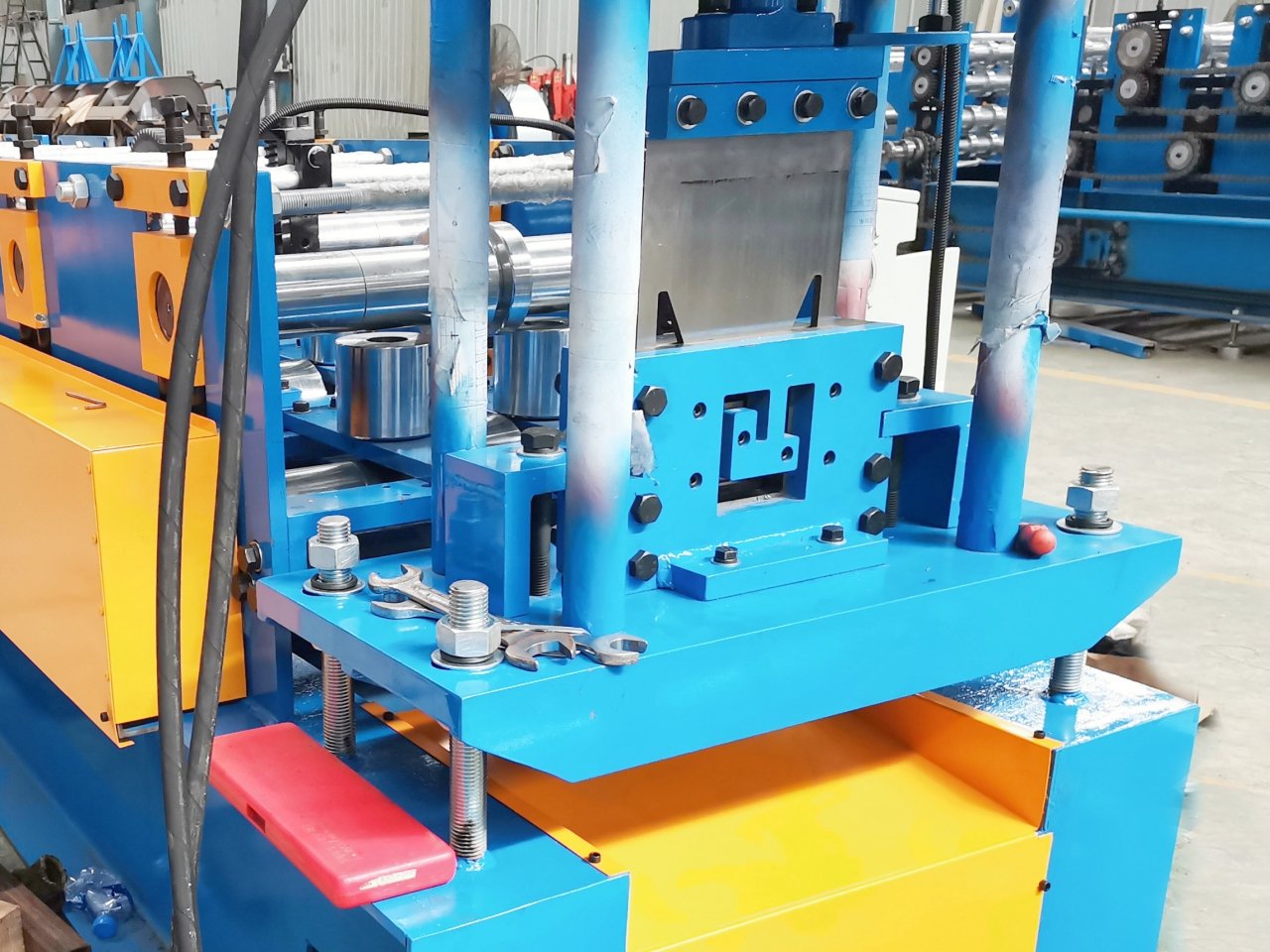

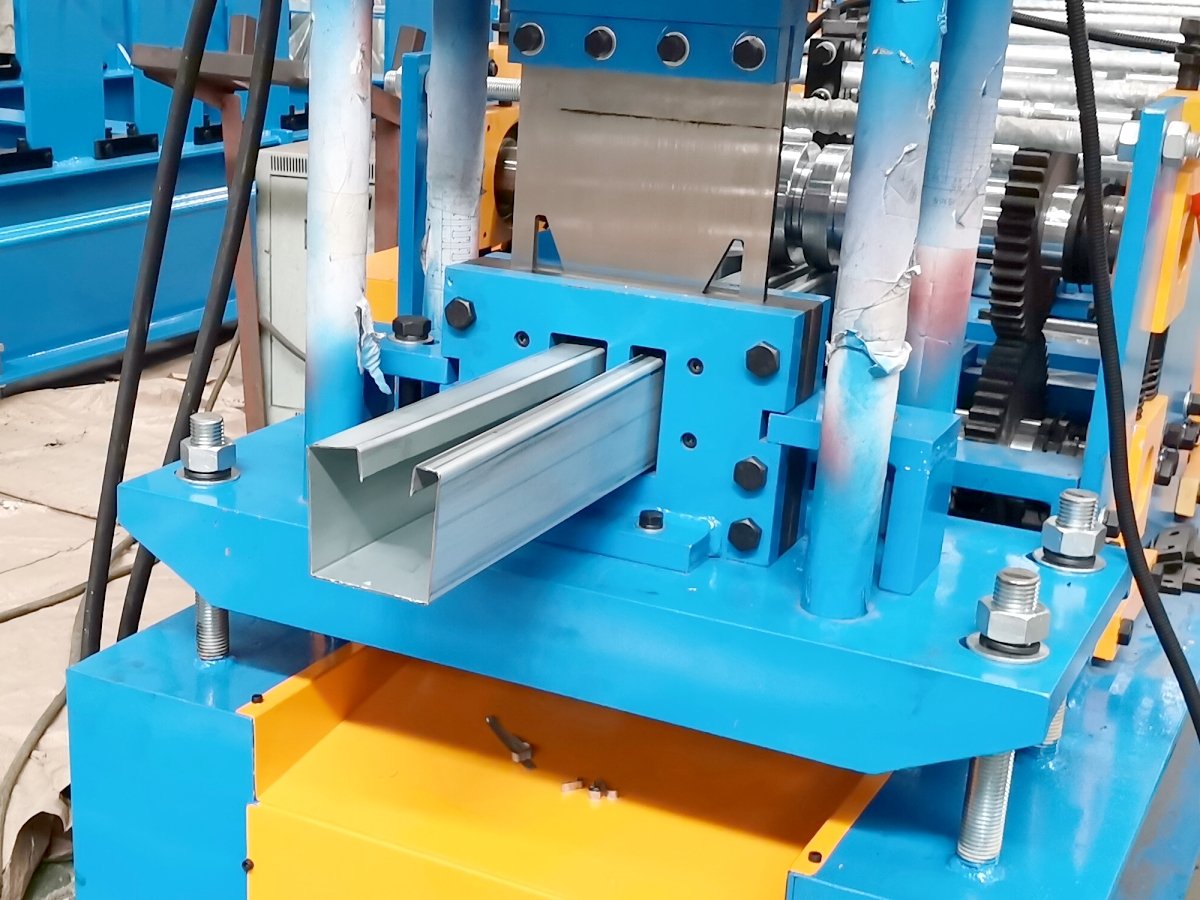

Cutting Blade Material: SKD11

Key Electric Parts: famous brand of PLC, inverter, Touch Screen, Encoder



How to adjust door frame roll forming machine’s center line?

This is a U shape door frame making machine, our machine center line normally is on u channel’s web middle position,so if the door frame lip one side is too big and the other side is smaller. We should adjust the machine center line again, the easiest operation is: adjust machine feeding table’s position to left or right side several millimeters and try 2-3 times until U channel’s flange dimensions and lip dimensions are correct.
