CZ Purlin Forming Machine

Description

Our CZ purlin roll forming machine can produce C, U Z purlin steel in a variety of sizes and thicknesses. This machine is often referred as quick-change C/Z purlin forming machine or a C&Z channel forming machine. This equipment addresses the need for only one set purlin roll forming machine to automatically and quickly produce C Z U-shaped steel in steel construction projects.

As a leading manufacturer of CZ purlin forming machines in China, Beenew Machinery has delivered approximately 500 units annually over the past decade. Furthermore, we can customize purlin roll forming machines to meet specific customer needs, such as C-shaped steel for photovoltaic racks, supports or shelving for warehouse racks, and other applications. The punching hole pattern and spacing can be customized to meet specific needs.

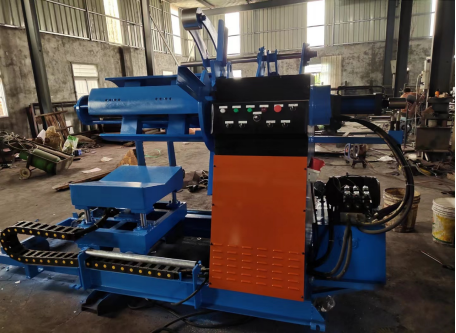

5Tons*600mmHydraulic Uncoiler with Coil Car

Oil pump power: 3kW, 4 claws

Hydraulic press arm, hydraulic follower press arm

Loading trolley: 4 guide posts, 150mm vertical stroke, 1200mm forward and backward stroke

Hydraulic station with pressure hold and one pressure switch

Steel coil inner diameter: 450-530mm

Load capacity: Max. 5 tons

Main shaft: 127x30mm diameter

Side plate thickness: 18mm

Steel coil width: Max. 650mm

Rotation speed: Max. 35mpm. Photoelectric auto-stop device controls coil start and stop.

Electronic control: Delta inverter, Schneider control components

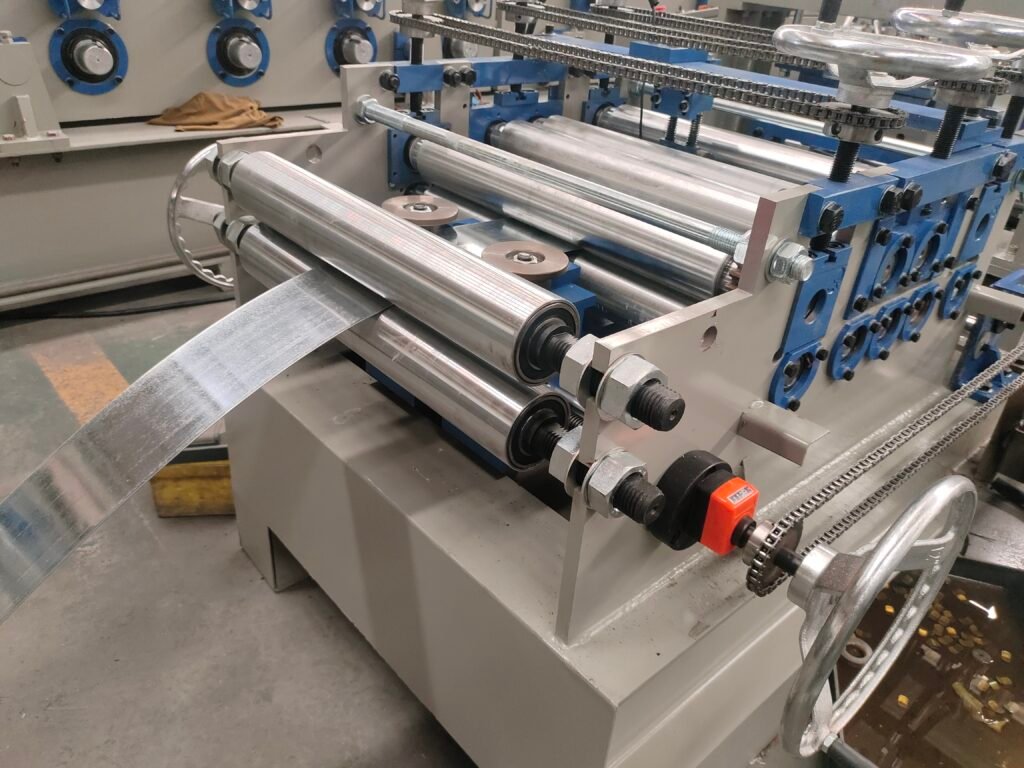

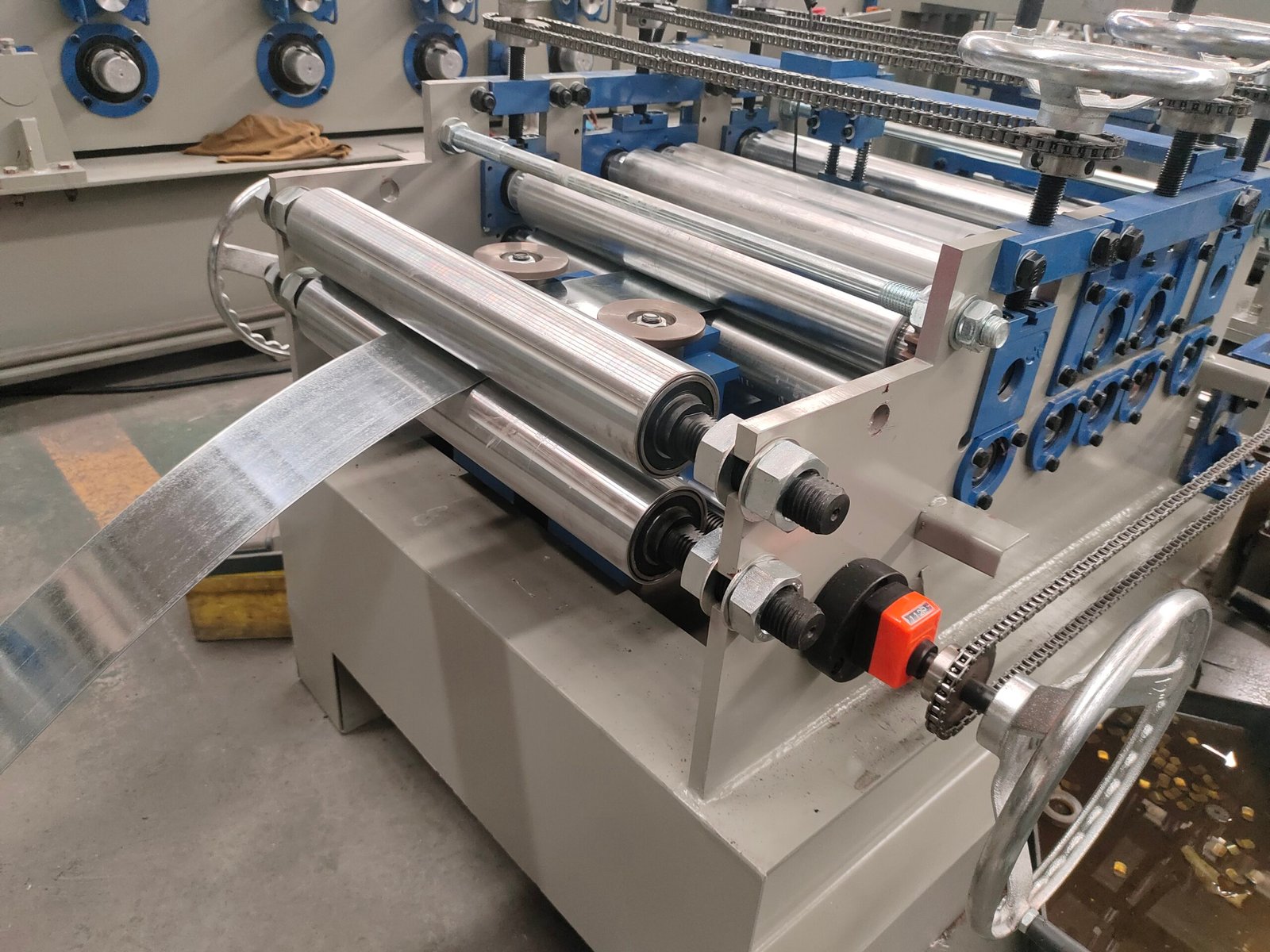

Pre-Leveling Device

7 shafts to leveling, Precision Machined, hard Chrome Coated





Hydraulic Pre-punch Pre-cut Device

With hydraulic pre-cut for cutting material head

Stop to punch, pre-punch

Total 5 cylinders for punching

One for bottom central punch, two for left / right bottom

punch, and two for left / right side punch

Total 5 sets punching dies

manual changing punching dies if needed

Pump motor: 11KW

Cutting pressure=Max.16Mpa

Punching dies and cutting tool material: Cr12MoV

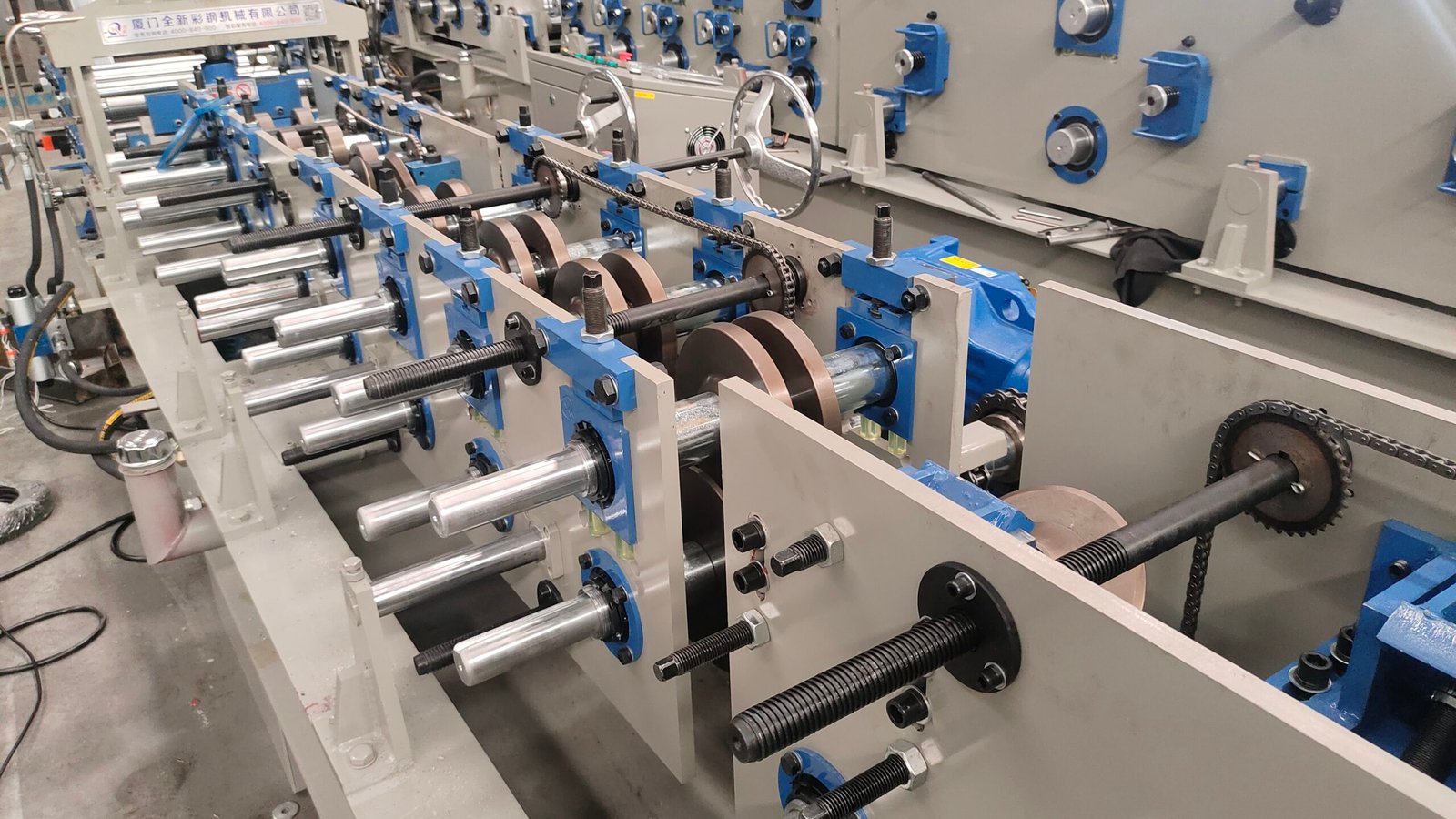

Roll Forming Machine

Feeding section with guider

There are two motors at material feeder sides for type-change

Gear/ sprocket driving: 20 steps to form+3 steps for shaping

Side wall thickness: 25mm

Shaft diameter: 80/65mm

Shaft material: 45# steel, Precision Machined

All the forming rollers are made from GCr15 or Cr12, CNC lathes, hard Chrome Coated

Frame base material: H400

Main motor =22KW (servo motor), with reducer, Frequency speed control

forming speed: 20-25m/min (without punching and cutting)

Touch screen input datas for changing different sizes producing

Automatic adjust CZ purlin bottom width and flange height

Manual cassette change producing C or Z shapes

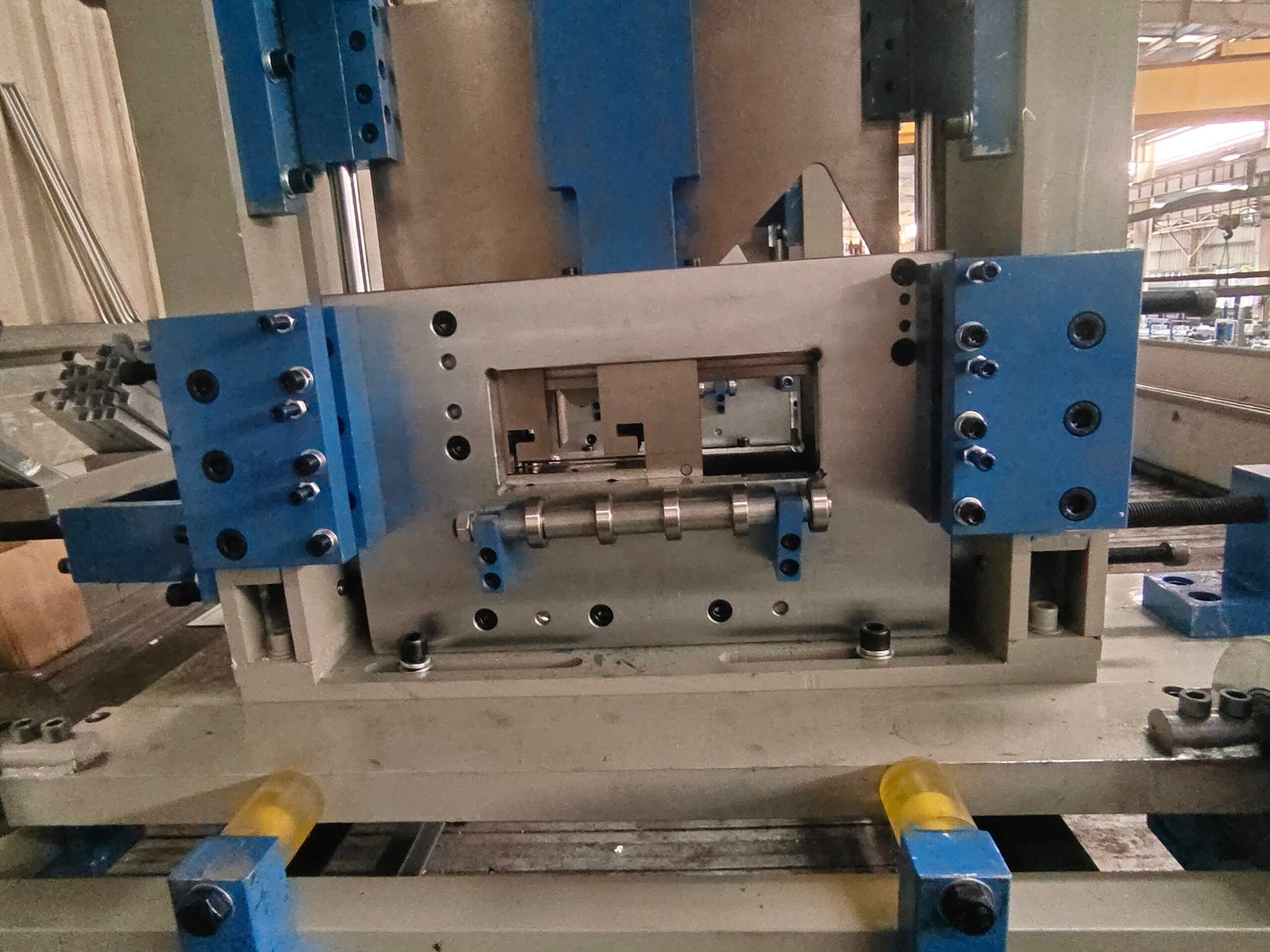

Post Universal Cutting Device

All sizes changing set work can be finished on touch screen

Post cut, universal cutting off

Cutting blades material: Cr12MoV

The suitable blades width and flange height can be adjustable as need

Pump motor =11KW (shared with pre-punching device)
