Ceiling Channel Roll Forming Machine
Beenew Machinery has extensive expertise in producing False Ceiling Channel machines, which have been successfully exported to Russia, India, Turkey, Brazil, Saudi Arabia, and other nations.
Description

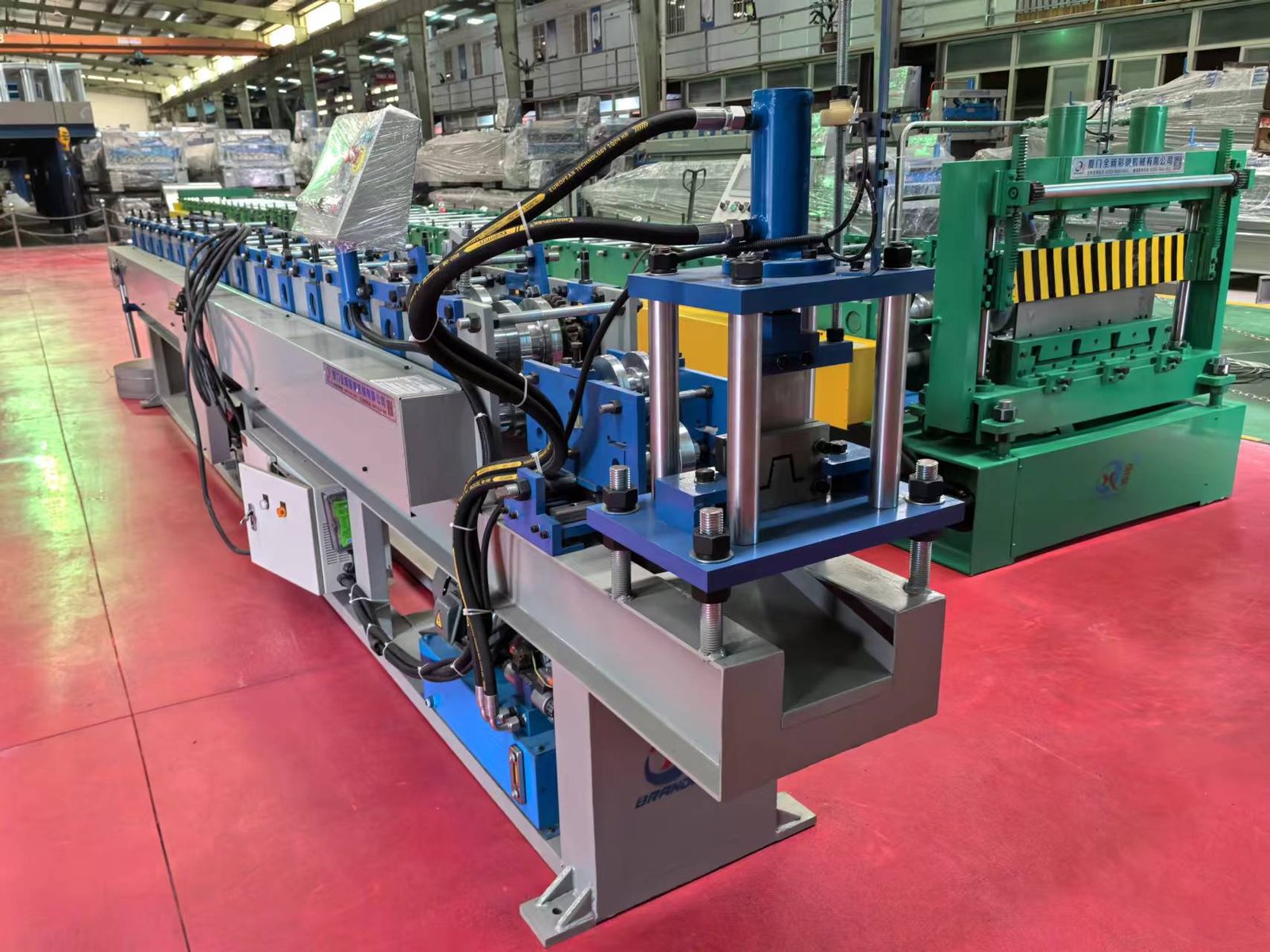

Roll Forming Line Description
Ceiling Channel Roll Forming Machine is the equipment for producing ceiling frame channels, and the ceiling channels are commonly used in the construction of false ceilings. Thefalse ceiling channel machine roll forms steel sheet by forming rollers and dies, finally works out the required ceiling channels, and the whole working process will be controlled by PLC system automatically.
These channels give decorative buildings a clean and attractive interior finish by supporting and installing artificial ceilings. These channels may be manufactured precisely and efficiently thanks to the roll forming process, which streamlines and lowers the cost of construction.
Beenew Machinery has extensive expertise in producing False Ceiling Channel machines, which have been successfully exported to Russia, India, Turkey, Brazil, Saudi Arabia, and other nations. The company offers a wide range of these machines to fulfill the needs of various ceiling forms.
Ceiling channel roll forming machine also can be called steel stud roll forming machine, false ceiling roll forming machine, light keel roll forming machine or false ceiling channel making machine. Different countries or companies have their style ceiling channels, so the roll forming equipment should be customized according to buyer’s requirements.
Machine Parameters
3tons Hydraulic un-coiler
Hydraulic expanding coil inner hole
Uncoiler speed: no power
Pump motor: 2.2KW
Capacity:3tons
Coil inner diameter: 480~610mm, Coil width: Max. 600mm

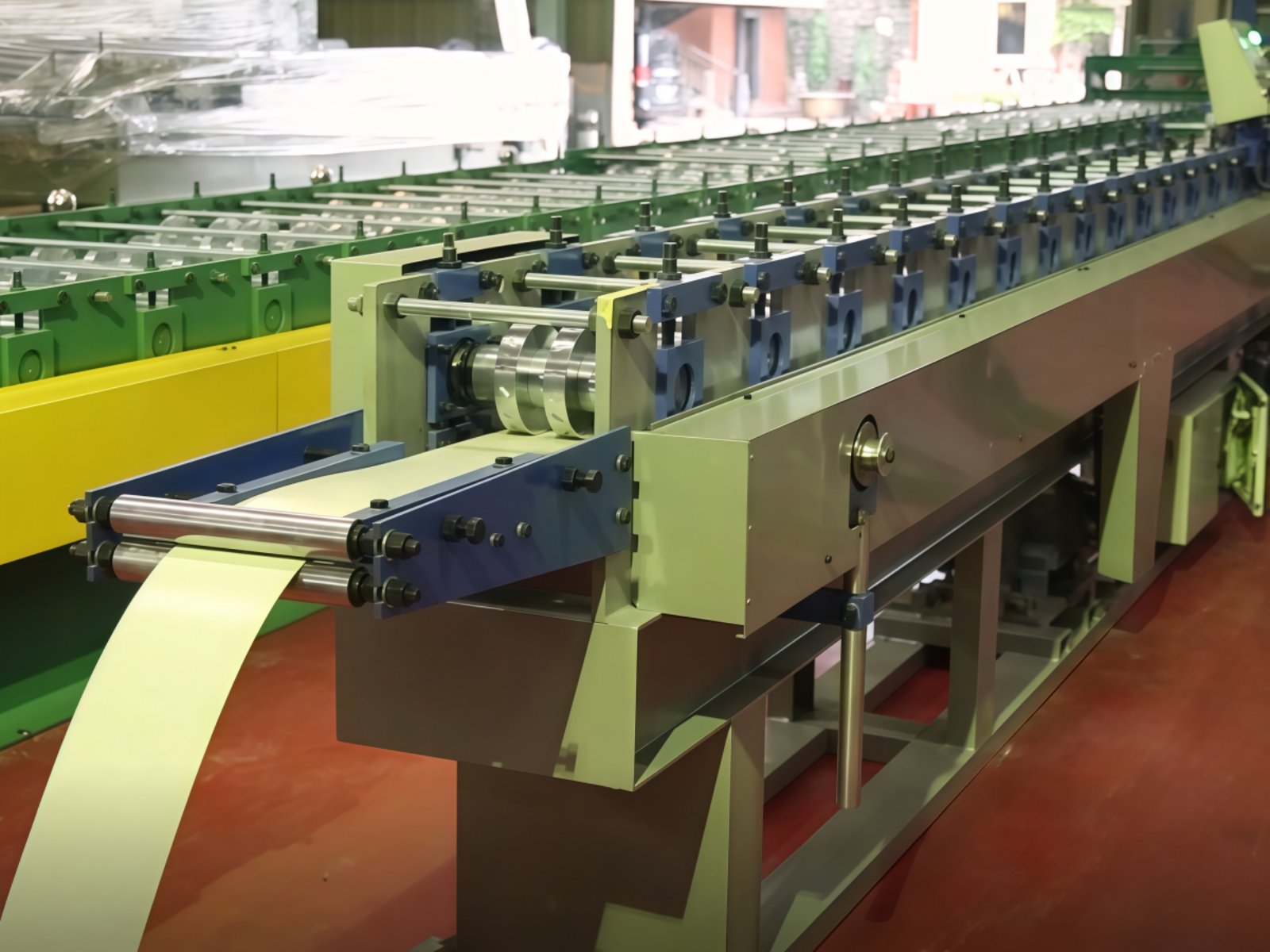

Feeding Guider
With Five rollers for levelling and leading

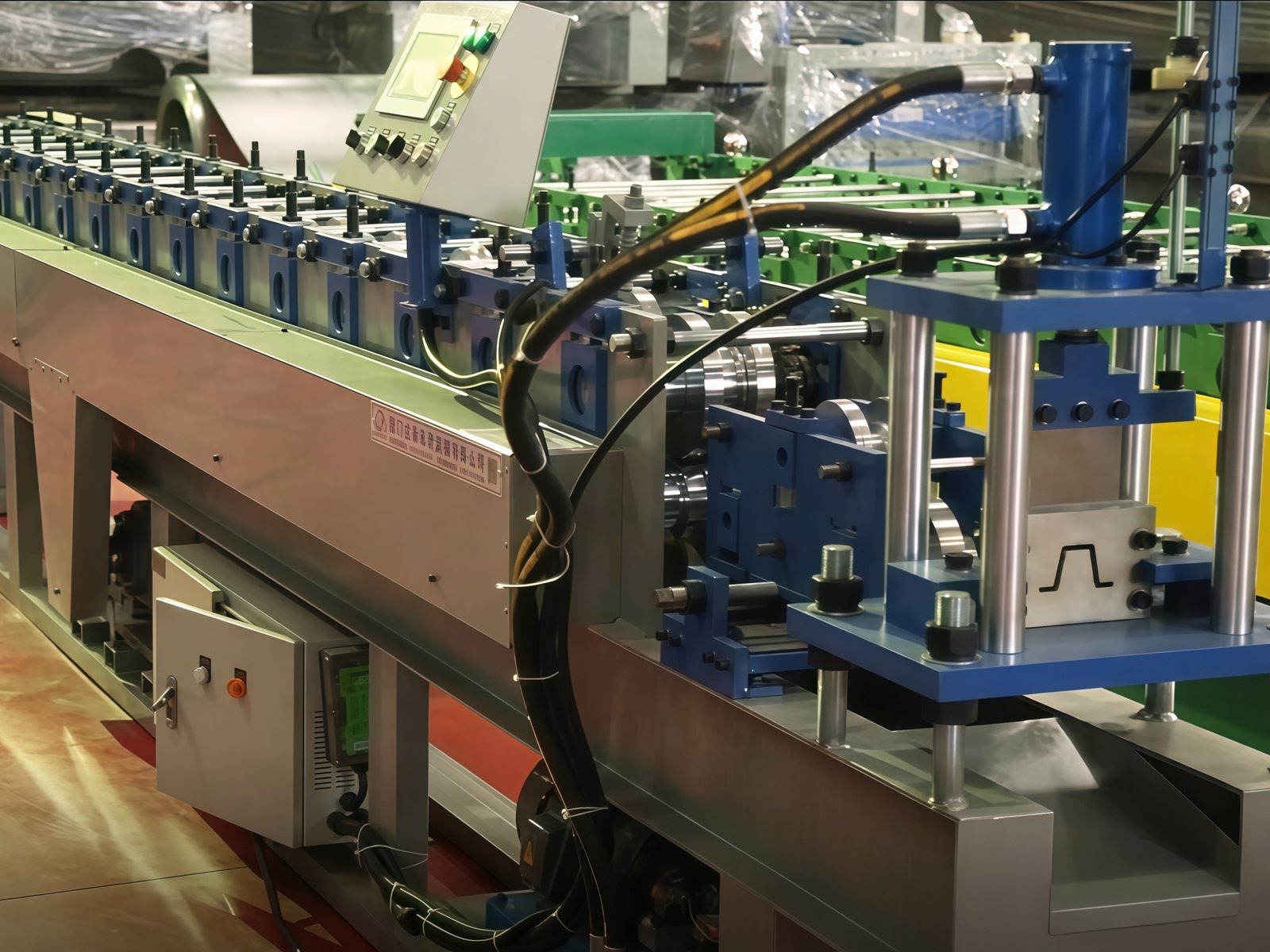

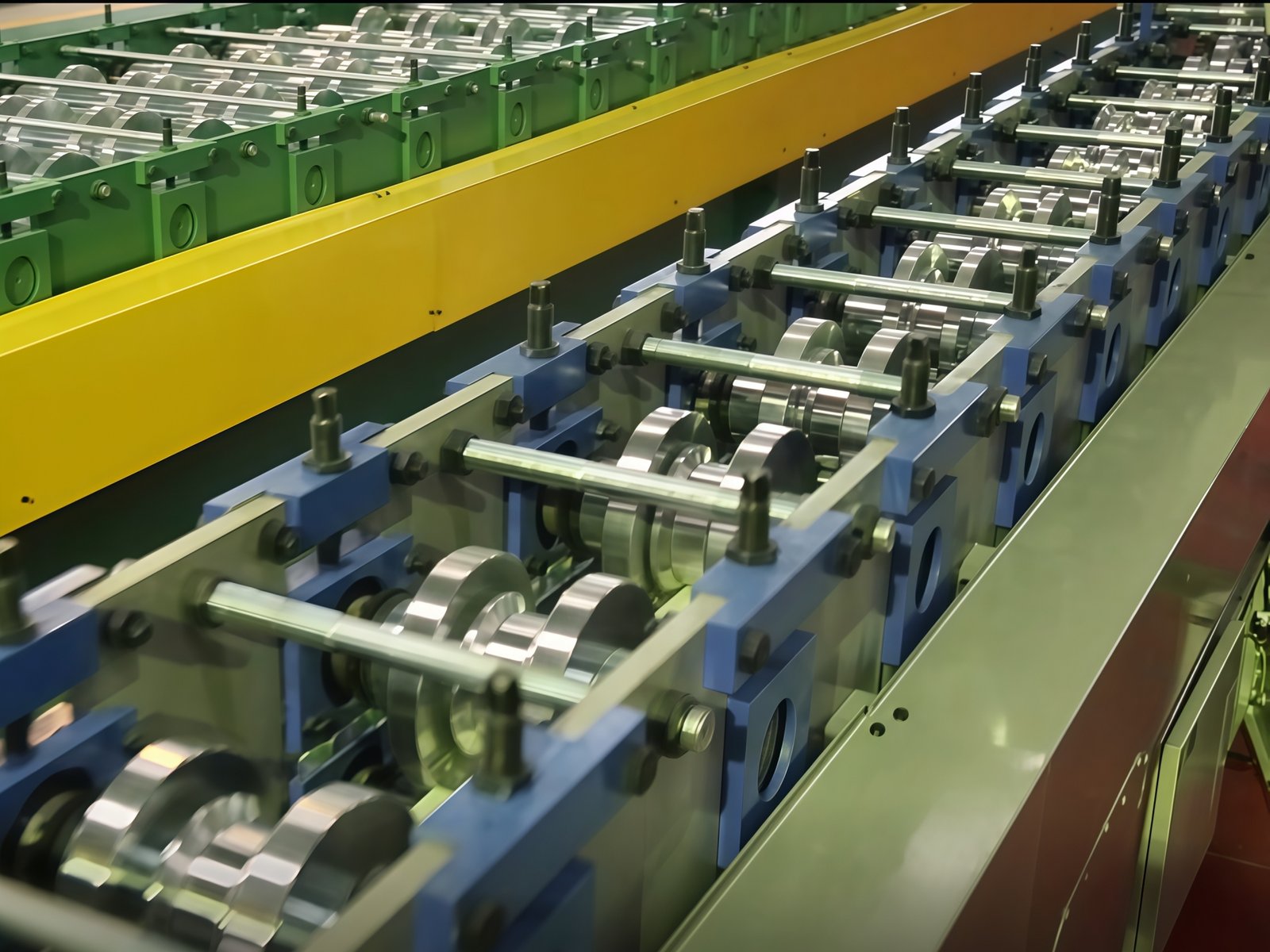

Cold Roll Forming Machine
Gear/Sprocket driving；13-step to form；1-step for embossing
Rollers manufactured from Cr12, CNC lathes
Hard Chrome Coated, heat treatment (HRC60-62)
Shafts Diameter=ф60mm, Precision Machined
Main motor =11KW, Frequency speed control
Forming speed：Approx. 20-25m/min

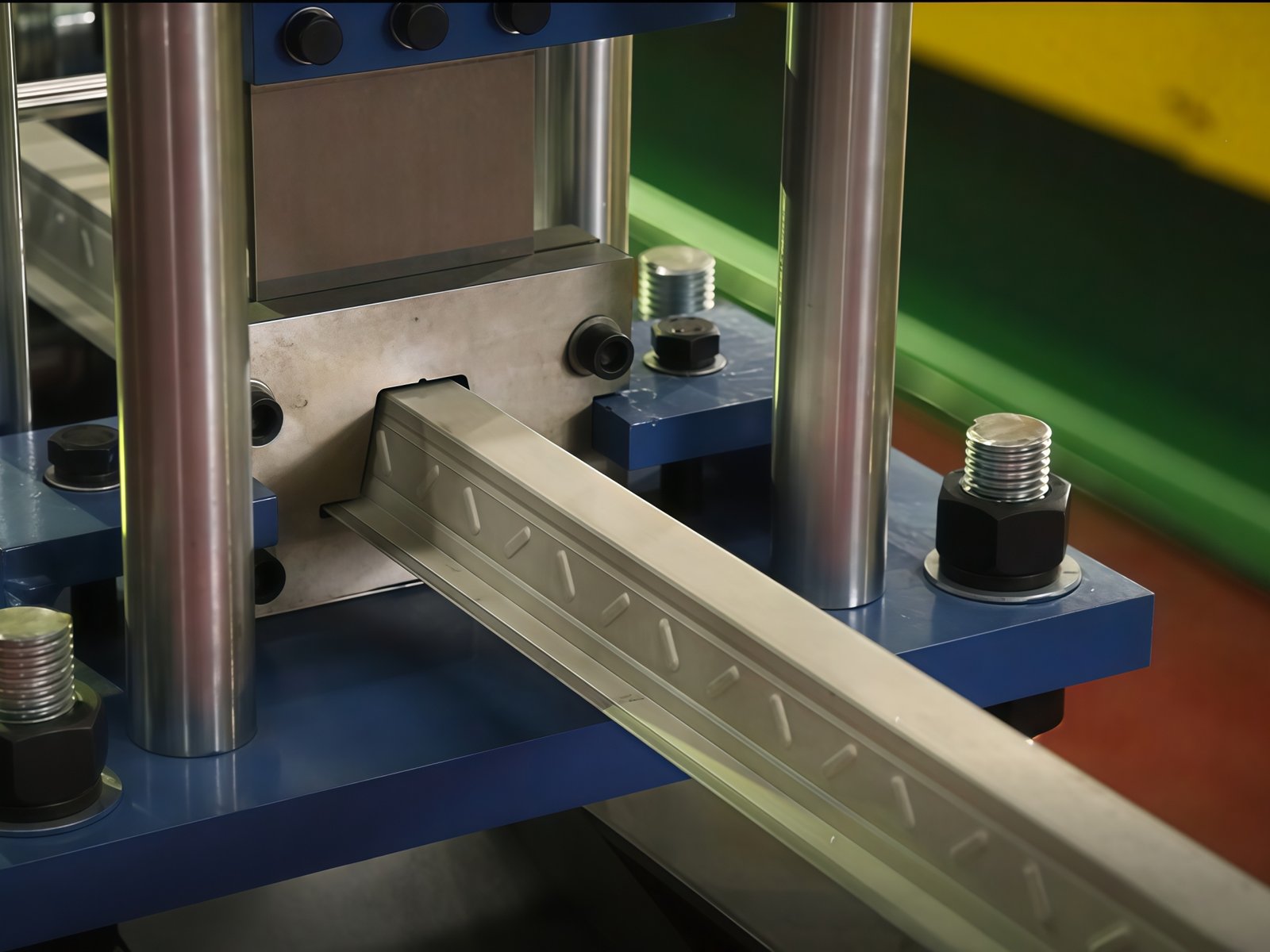

Hydraulic cutting device
Non stop cutting, post cutting
Pump motor =7.5KW; Cutting pressure=Max.10Mpa
No-blank cutting, cutting blades material: Cr12
PLC Control System
Control the cutting length & quantity automatically.
Combined with：PLC, inverter, Touch Screen, Encoder, etc
Cut-to-length tolerance≤±2 mm
Control voltage 24V
Product Rack Un-powered, 6meters long

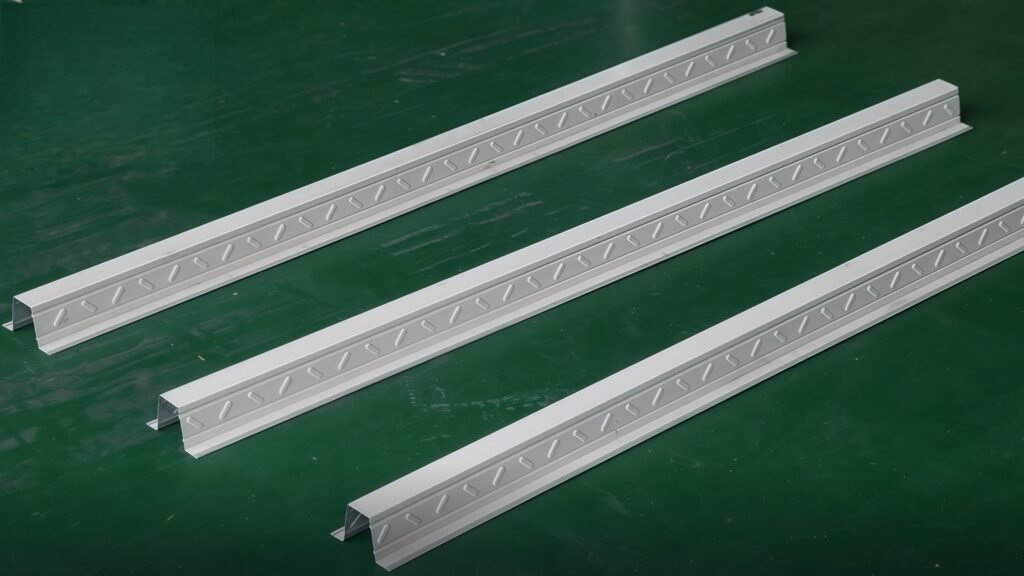

Fine Samples
