Automatic Type-change CZ Purlin Machine

Description

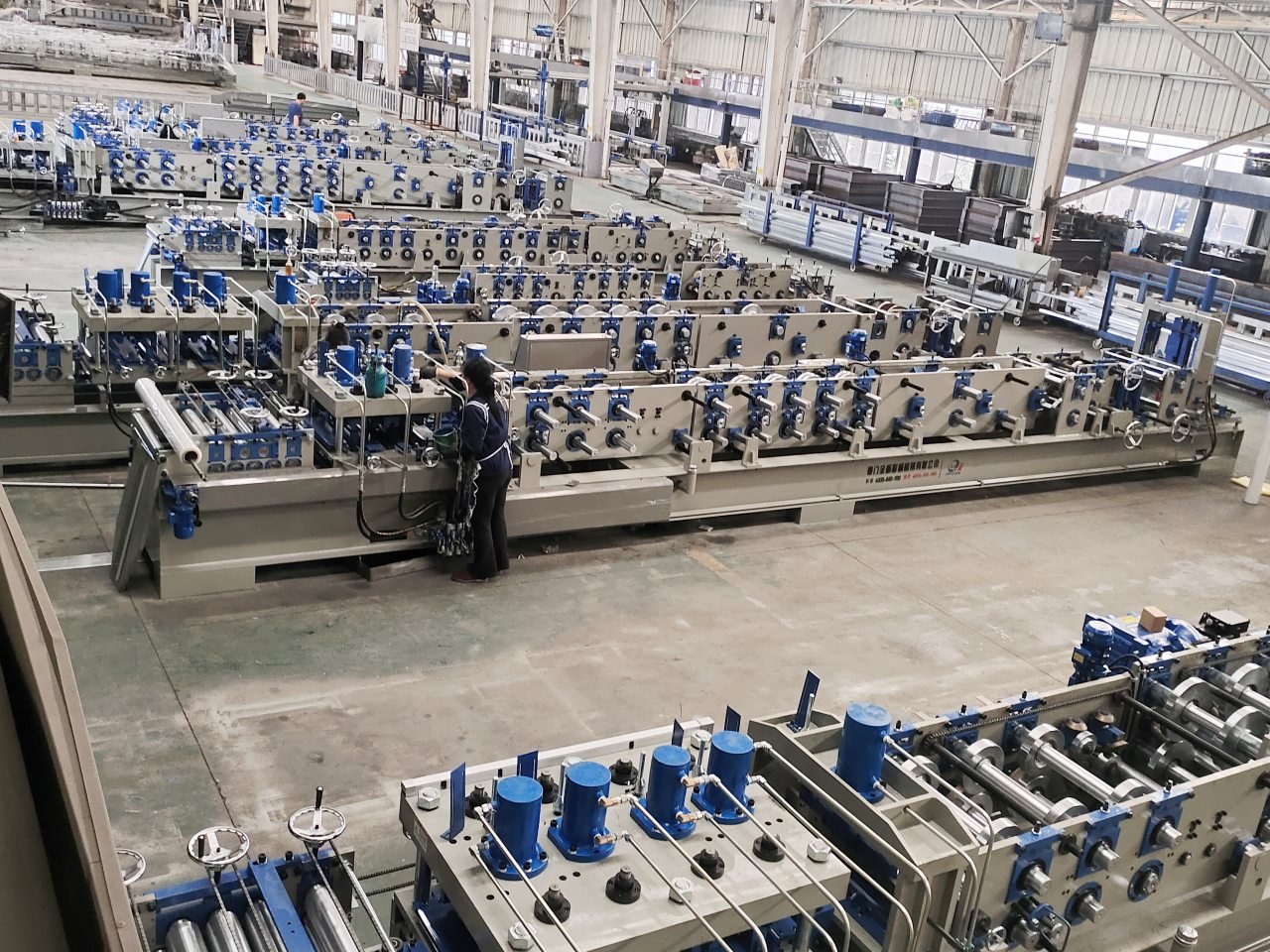

Automatic Type-change CZ Purlin Machine



1. Introduction

The introduction of the CZ purlin steel all-in-one machine is a revolution in the steel structure industry’s efforts to lower costs and increase income.The following are the CZ purlin machine’s primary features:

1) It is not necessary to replace cutting blades one size one time;
2) Alter the model as soon as possible and at any time within three minutes;
3) Adjustability comes. Millimeters can be used to modify the web, flange, and flange edge;
4) The CZ three-step type change and CZ steel purlin all-in-one machine;
5) The issue of uneven height on both sides of the fractured shaft is lessened by the coaxial arrangement.

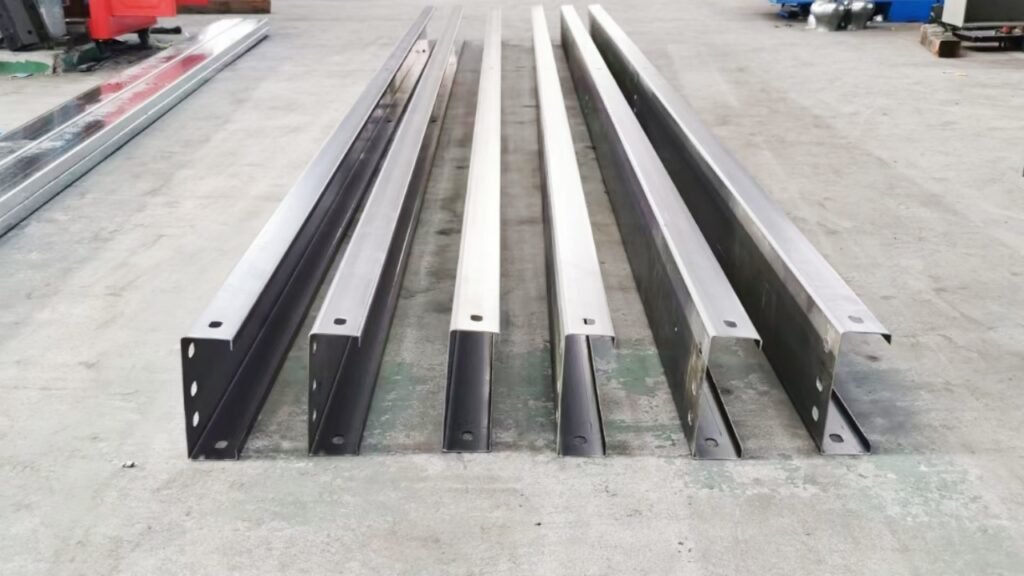

The following features are present in the goods made by our CZ purlin machine.



High strength: It has outstanding structural qualities thanks to the most cutting-edge design and rolling shaping, as well as the use of high-strength steel plate as the basis material (tensile strength 5600 kg/cm).



Fire prevention: The color composite sandwich panel’s surface material and thermal insulation material are non-combustible materials that can completely satisfy the fire prevention code’s criteria.



Fast installation: Aluminum zinc coated steel light weight, splicing installation, and free cutting and hole punching again, it makes the metal purlins easily to install, which can significantly increase productivity and shorten the building time.



Durability: According to several studies and over 40 years of widespread usage overseas, the metal bracket with specific Aluminum Zinc coating has a shelf life of 10 to 15 years. The plate can last up to 35 years after that, and the anti-corrosion coating is applied every ten years.



Gorgeous:The profiled steel purlin has more than hundreds of installing styles that can satisfy the requirements of buildings of any design.





2. Machine Technical parameters



CZ Purlin Machine Function



Fast C to Z interchange: No parts need to be disassembled in order to swiftly swap out the rollers for C and Z. Simply un-clamp the forming tooling (two bolts), turn it 180 degrees, and tighten it again. No spacers or tooling are altered or deleted. Easy, quick, and straightforward operation.
Size change: PLC control un-clamps the form tooling and slides it into the proper position. No spacer was altered, or special tools were used. It is possible for sizes to be infinite.
Only touch screen input data can be automatically adjusted to any size by motor driving stations that move precisely on a linear guiderail with an encoder.

Good quality servo motors with increased speed, precision, and the ability to stop and restart repeatedly.

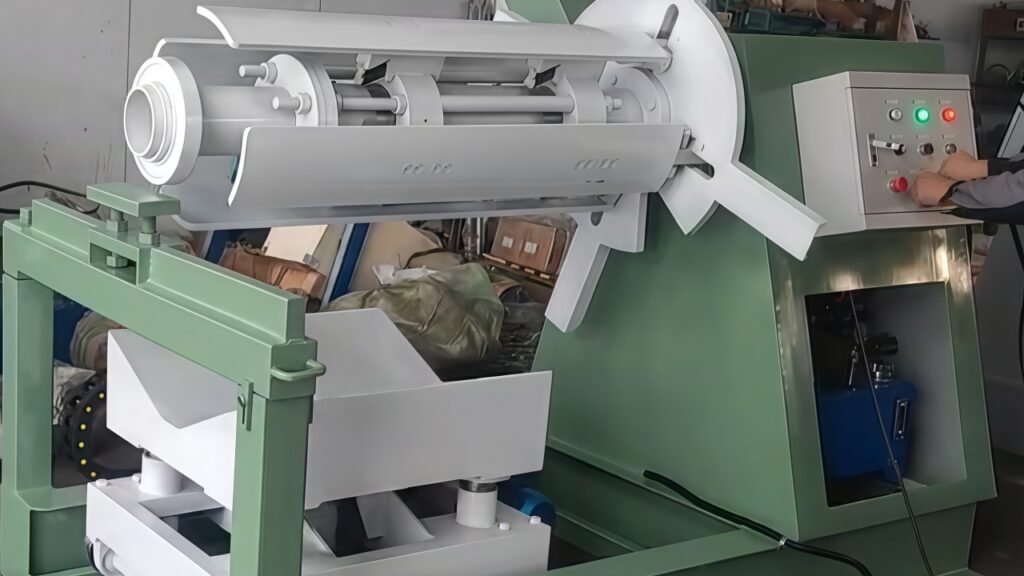

5TonX600mm Hydraulic Un–coiler (enhanced, stronger model)
Hydraulic pump motor for expanding the inner hole of the coil;

With a frequency inverter to control rotation speed motor: 3KW
The inner diameter of the coil is 510±30 mm.

Maximum outside diameter of the coil: 1500 mm
Taper wedged expansion system

Maximum Coil Width: 600 mm

Maximum Load Capacity: 5 tons

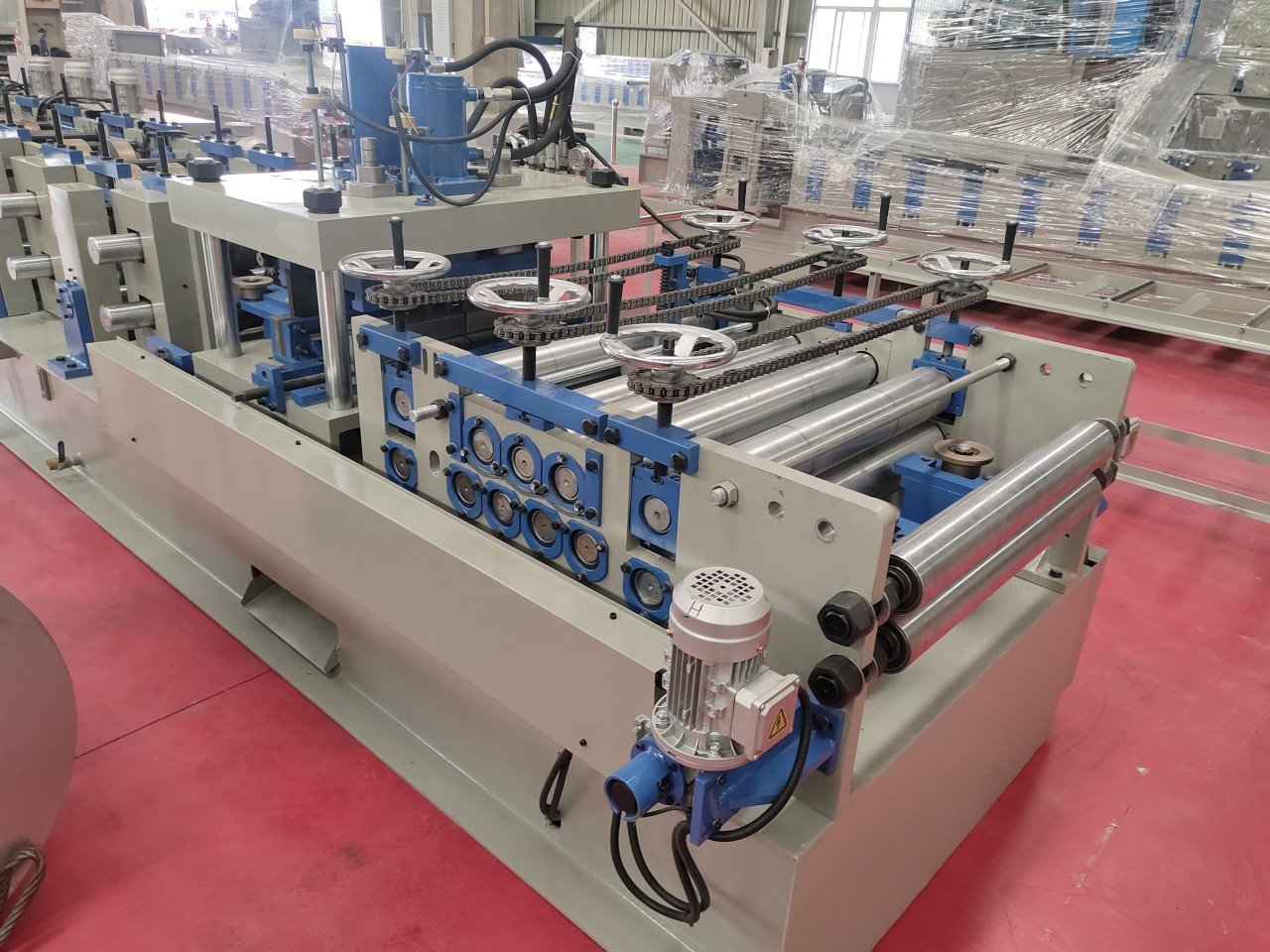

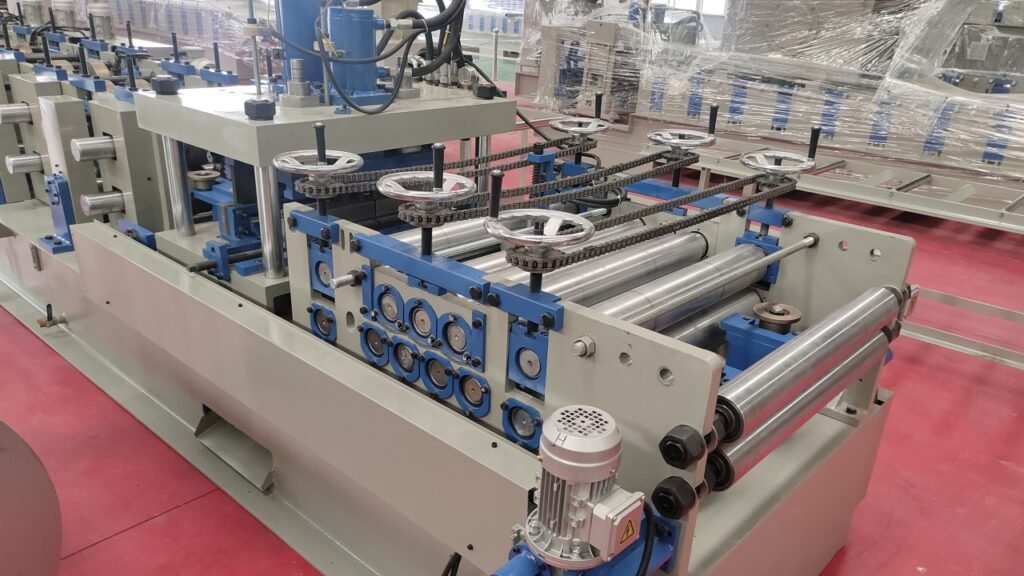

Pre-Leveling Units
Powered feeding section with steel coil guide to entry
To reinforce the coils, a four-over-three roller section design
The height of the above stations can be changed using a corkscrew lifter.
Manual height adjustment in a hand wheel design

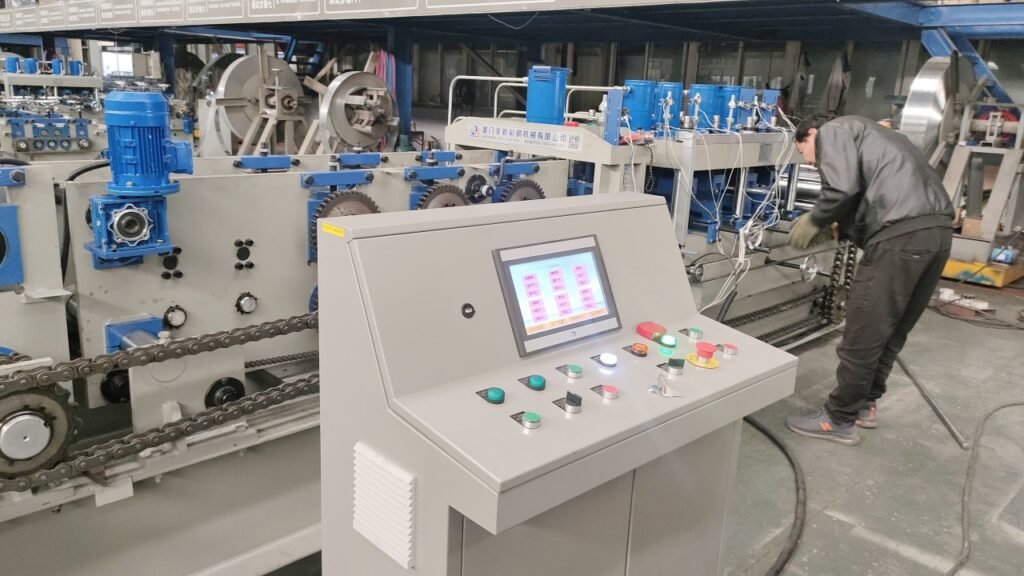

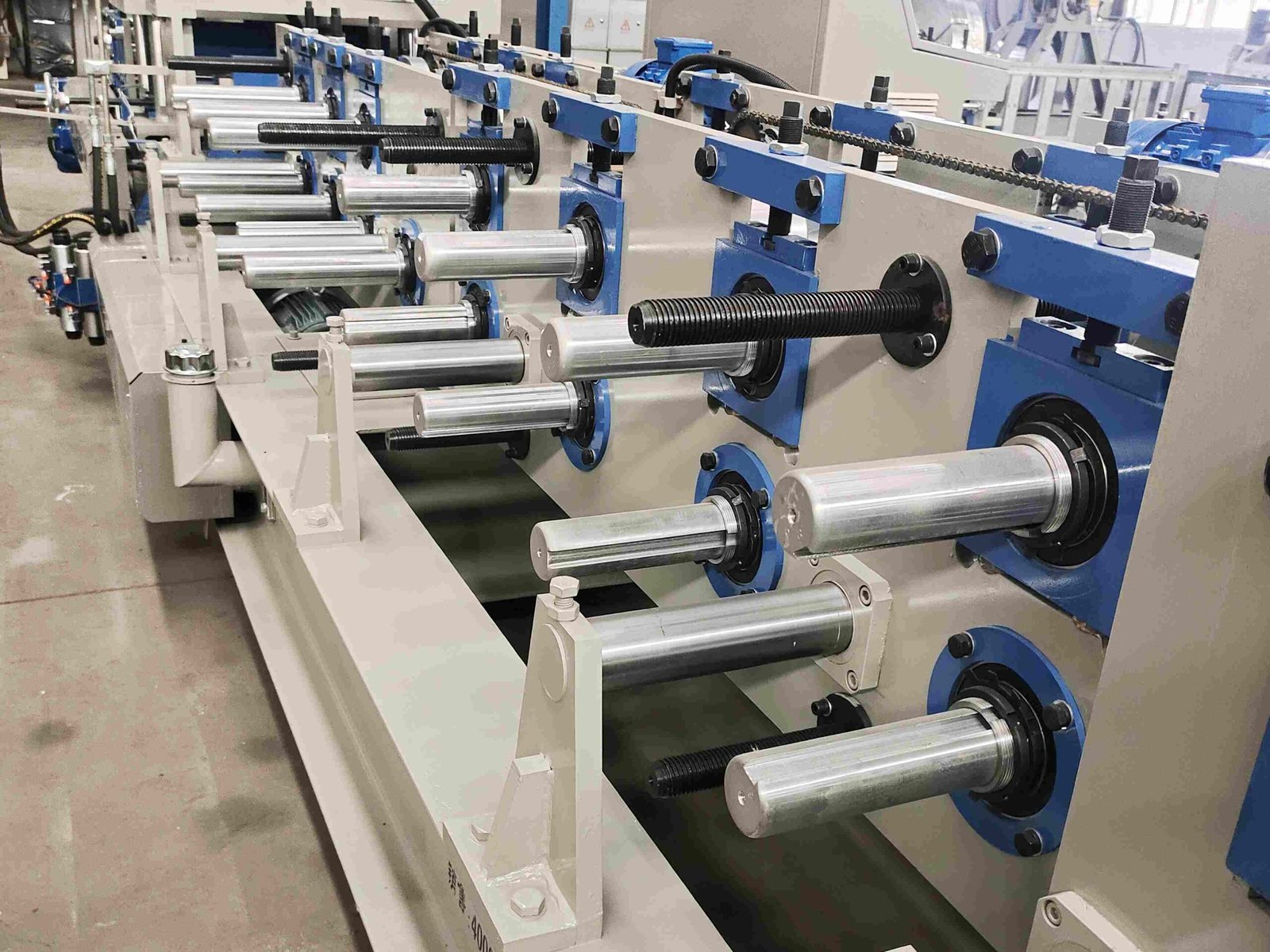

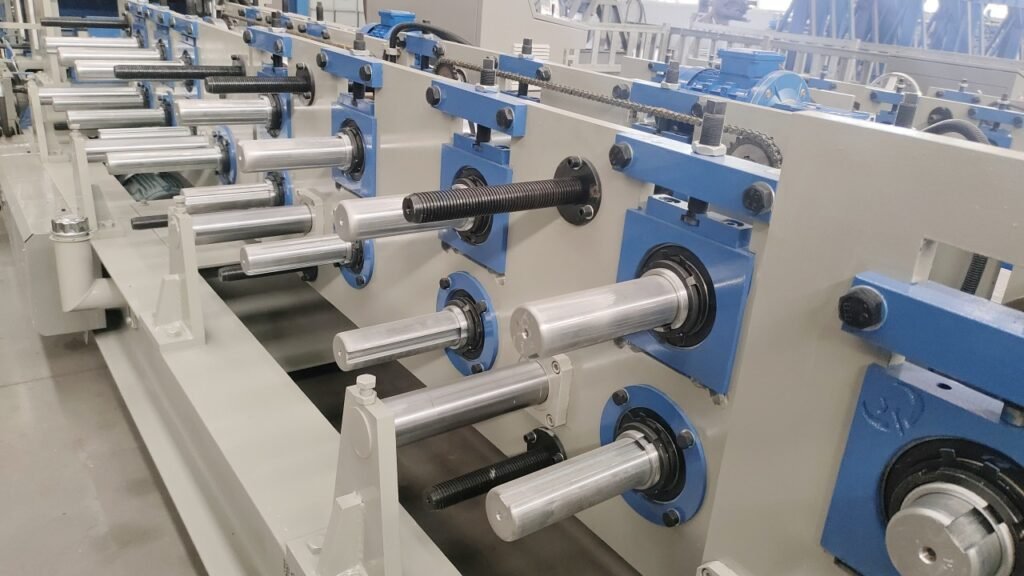

C Z Purlin Auto Size Change Roll Forming Machine

Pre-guiding the roller portion to prevent short piece inclination running
Double chain gear/sprocket driving; 15 steps to make
The metal cover surrounding the sprocket chain system provides safety protection.
Gear material: 40Cr, roller material: Cr12 (D3), heat treatment, CNC lathe, HRC60-62
The primary shaft’s material is 45# casting steel.
Shafts Diameter: 75/85 mm, Accurate Mechanized
0.55KW*3 and 0.75KW*2 motors with variable profile sizes
Roll-forming main servo motor: 22KW





PLC Control System

Automatically adjust the quantity, punching length, and cutting length
PLC, Touch Screen (SIEMENS), Schneider Inverter, Omron Encoder, etc.
Tolerance for cut-to-length ≤±2 mm
24V Control Voltage





Product detail

1. Use: solar bracket, common building roof systems, building supplies, stadiums, etc.
   2. Original: Xiamen, China
   3. Certification: CE, ISO9001, etc.
   4. Cost: Negotiable
   5. Voltage: 380V at 50Hz, depending on local demand
   6. Terms of payment: TT, LC
   7. Date of delivery: Negotiable
   8. Market: Russia, North America, South Asia, India, and the Middle East
   9. One-year warranty



Need any support of how to choose CZ purlin roll forming machine for your solar bracket system or steel construction project, chat with us now!
